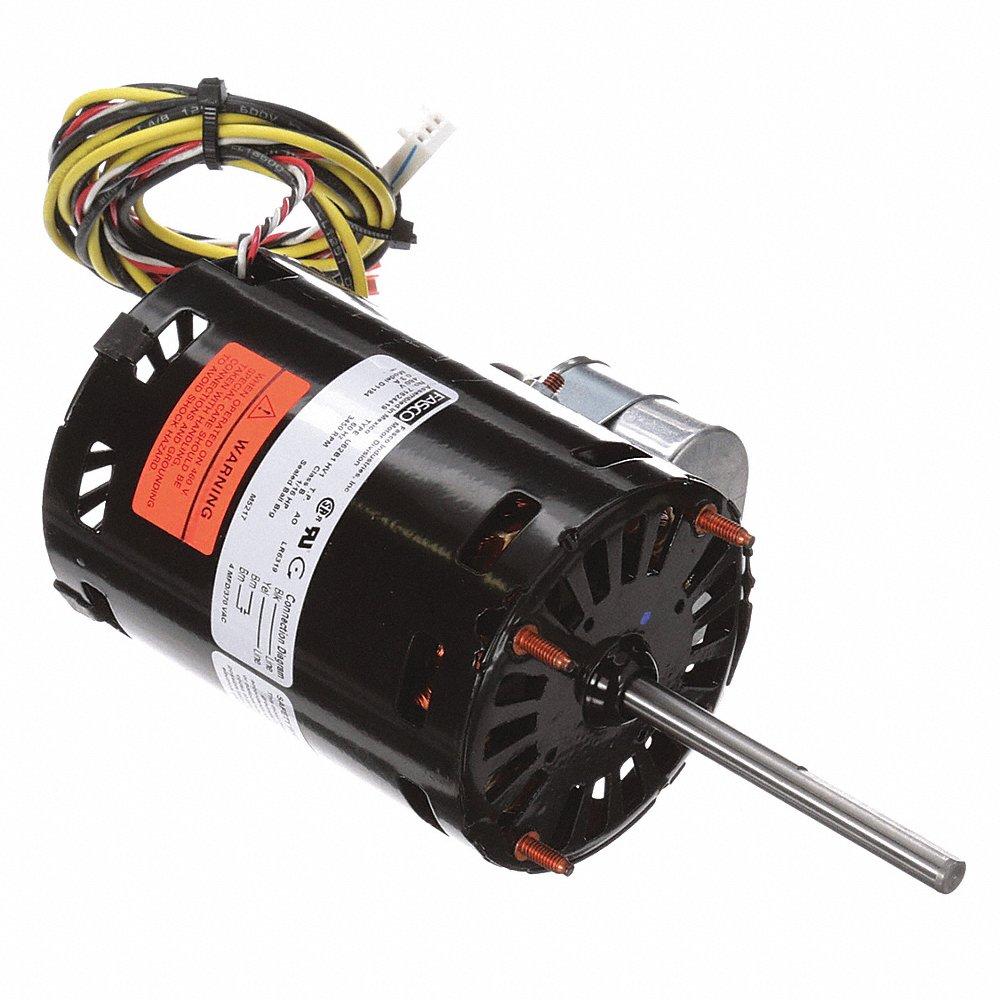

| Item | Condenser Fan Motor |
| Bearing Type | Ball |
| Bolt Circle Dia. | 2 3/16" |
| Capacitor Required | Included , Yes |
| Dia. | 3 2/5" |
| Diameter | 3 2/5" |
| Enclosure Type | Open Air Over |
| Frame Material | Steel |
| Full Load Amps | 0.3A |
| Hp | 1/16 hp |
| Length | 8 1/8" |
| Length Less Shaft | 4 3/4" |
| Motor Application | OEM Replacement |
| Motor Design | Permanent Split Capacitor |
| Motor Frame Material | Steel |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Automatic |
| Motor Type | Permanent Split Capacitor |
| Mounting Stud Length | 1/2" |
| Mounting Stud Size | #8-32 |
| Mounting Type | Extended Studs |
| Nema/iec Frame | 3.3" |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| Number Of Shafts | 1 |
| Number Of Speeds | 1 |
| Oem Replacement Brand | Carrier/BDP |
| Phase | 1 |
| Replacement For | HC30GB232 |
| Rpm | 3450 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/16" |
| Shaft Length | 3 1/4" |
| Shaft Type | Double Flat |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 460V AC |
| Body Dia. | 3.4" |
| Frame | 3.3" |
| Ins. Class | Class B |
| Max. Ambient Temp. | 104°F |
| Motor Bearings | Ball |
| Motor Enclosure Design | Open Air Over |
| Motor Mounting Type | Stud |
| Motor Shaft Design | Double-Flat |
| Nameplate Rpm | 3450 RPM |
| Overall Length | 8 1/8" |
| Standards | CSA CERTIFIED, UL RECOGNIZED |
| Stud Size | #8 32 x 1/2" |
| Weight | 5 lbs. |
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 8.41 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 13.03 |
| Country of Origin | MX |
