FASCO

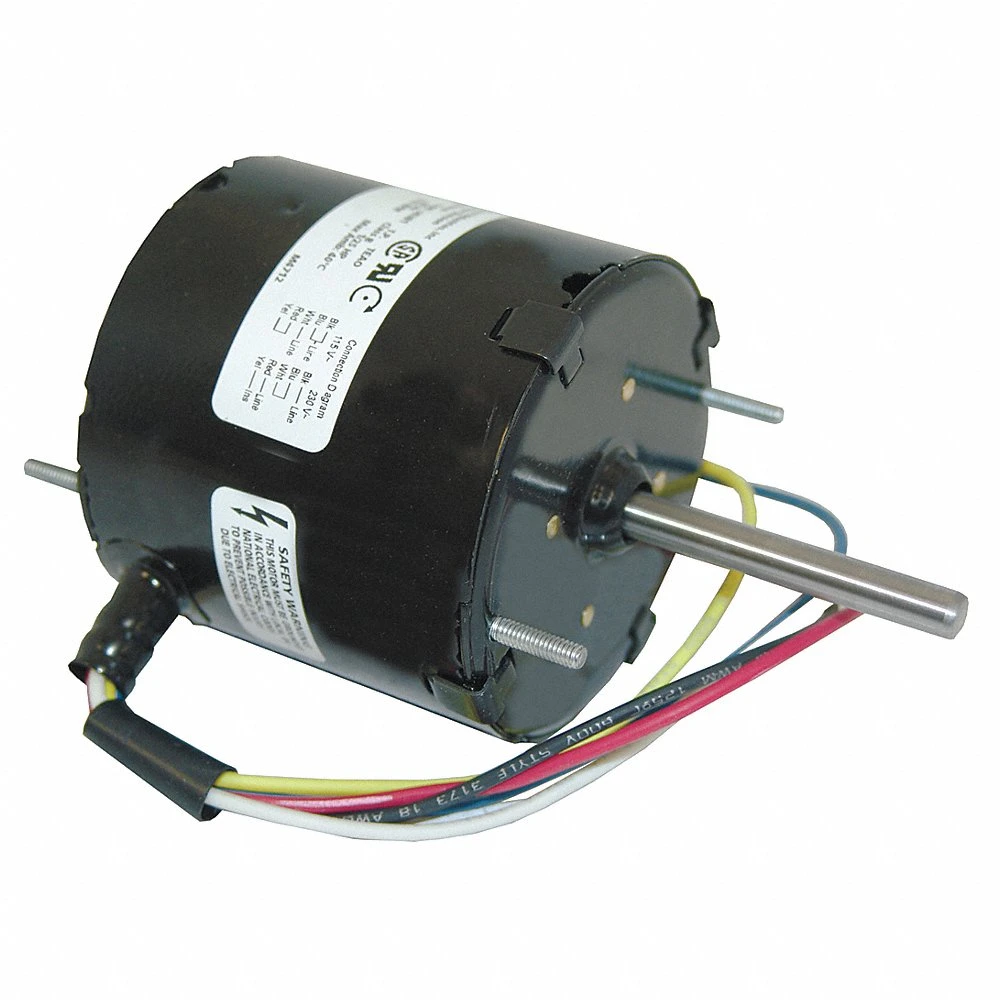

FASCO D1164 HVAC Motor, Shaded Pole, 1/25 HP, 1550 RPM, 115/230 V, Frame 3.3 | AC7LVG 38N574

FASCO D1164 HVAC Motor, Shaded Pole, 1/25 HP, 1550 RPM, 115/230 V, Frame 3.3

In Stock
Item: AC7LVG Model: D1164Cross Ref: 38N574
Check Availability
See variants (59)

Get it by Jun 5, Wednesday

Product available for flat shipping. Flat shipping price of €9,00 on transactions of value €99,00 or more and aggregate weight below 10 pounds.

Delivery Options:

Int. Economy (6-10 days)
  • Int. Express (5-7 days) ¥3,750
  • Ex-Works Pickup Free
  • Ex-works Pickup
€209.74 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemHVAC Motor
BearingsSleeve
Body Dia.3.3"
DutyContinuous Air-Over
EnclosureTotally Enclosed Nonventilated
Frame3.3
Full Load Amps1.3/0.7
HP1/25
Hz60
Insulation ClassB
Length Less Shaft3.125"
Max. Ambient Temp.40 Degrees C
Motor ApplicationH VAC/R
Motor DesignShaded Pole
Motor Enclosure DesignTotally Enclosed Nonventilated
Motor Mounting TypeStud
Motor Shaft DesignFlat
Motor Shaft RotationCWSE
Motor Sub ApplicationDirect Dr Fan/Blower
Motor Thermal ProtectionAuto
Motor TypeShaded Pole
MountingStud
Mounting Pattern2-7/8 x 2-7/8
Nameplate RPM1550
Number of Speeds1
Phase1
RotationCWSE
RPM Range1501-1600
Service Factor1.0
Shaft Dia.5/16"
Shaft Length2.5"
Shaft TypeFlat
Stud Location2/BE
Stud/Base Mtg. Pattern2-7/8 x 2-7/8"
Thermal ProtectionAuto
Voltage115/230

Shipping Info:

Ship weight (kg) 1.89
Ship height (cm)12.45
Ship length (cm)22.61
Ship width (cm)12.45
HS code8501106020
Country of OriginMX

Product Details:

  • Suitable for use in mechanical or air-moving applications including HVAC, fans, pumps and compressors
  • Heavy-duty single-phase motor capable of delivering 1/25 HP
  • Adheres to UL (E40513) and CSA (LR6319) standards

Product Variants

ProductModelMotor TypeLength Less ShaftBearingsEnclosureFull Load AmpsHPHzInsulation ClassPrice
FASCO D200 Hvac Motor 1/85 Hp 3000 Rpm 115v 3.3 | AC7LRT 38N515 D200Shaded Pole2"SleeveOpen Ventilated0.621/8560A€125.83
FASCO D201 Hvac Motor 1/85 Hp 3000 Rpm 115v 3.3 | AC7LRU 38N516 D201Shaded Pole2.25"SleeveOpen Ventilated0.621/8560A€129.91
FASCO D608 Hvac 3.3 Inch Motor 1/50 Hp 230v Cw | AC7LRW 38N518 D608Shaded Pole3.75"SleeveOpen Ventilated.64/.531/5050/60B€170.55
FASCO D209 Hvac Motor 1/30 Hp 3000 Rpm 115v 3.3 | AC7LRX 38N519 D209Shaded Pole3.625"SleeveOpen Ventilated1.121/3060A€171.45
FASCO D208 Hvac Motor 1/30 Hp 3000 Rpm 115v 3.3 | AC7LRY 38N520 D208Shaded Pole3.625"SleeveOpen Ventilated1.121/3060A€165.86
FASCO D214 Hvac Motor 1/20 Hp 3000 Rpm 115/230v 3.3 | AC7LRZ 38N521 D214Shaded Pole4.625"SleeveTotally Enclosed Fan-Cooled1.71/2060A€294.87
FASCO D215 Hvac Motor 1/20 Hp 3000 Rpm 115/230v 3.3 | AC7LTA 38N522 D215Shaded Pole4.625"BallTotally Enclosed Fan-Cooled1.71/2060A€334.35
