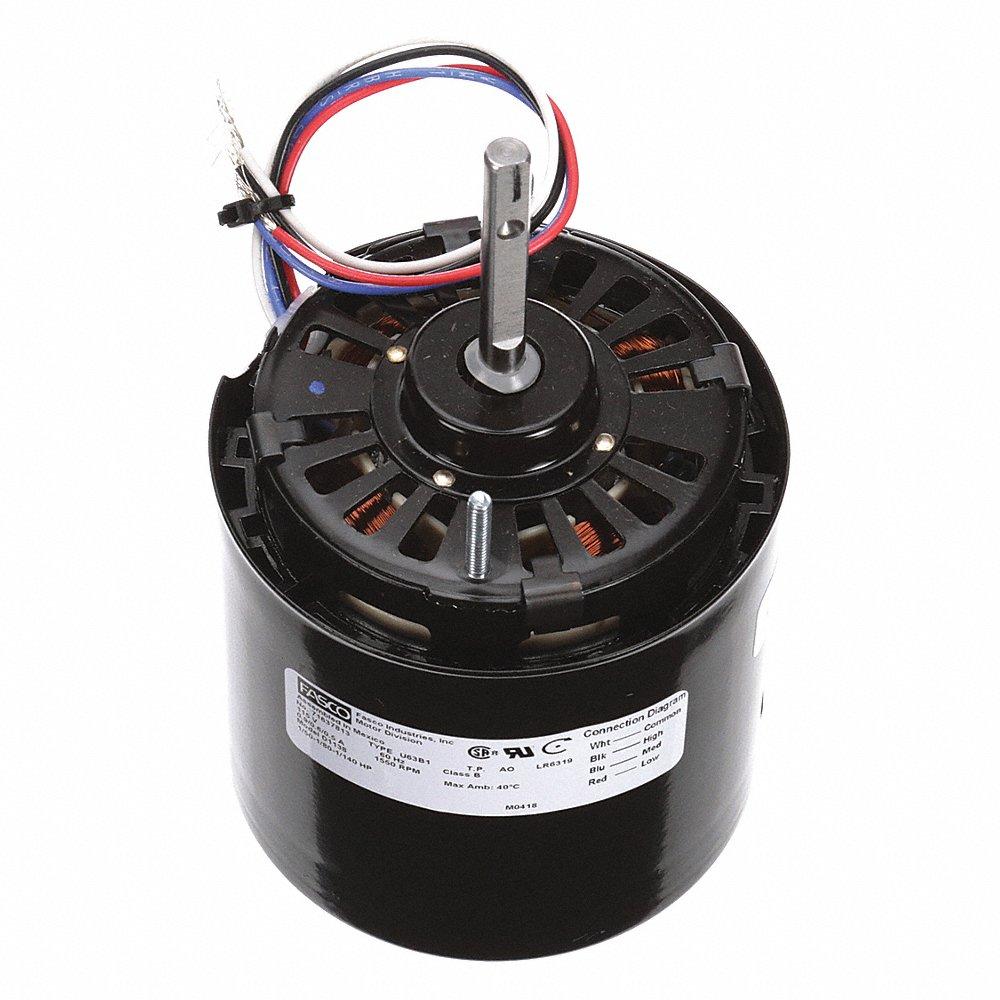

| Item | Condenser Fan Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Sleeve |
| Body Dia. | 3 2/5" |
| Bolt Circle Dia. | 2 13/16" |
| Capacitor Required | No |
| Dia. | 3 2/5" |
| Diameter | 3 2/5" |
| Enclosure Type | Open Air Over |
| Frame | 3.3" |
| Frame Material | Steel |
| Full Load Amps | 0.9/0.6/0.5A |
| Hp | 1/50 hp, 1/80 hp, 1/140 hp |
| Length | 6 9/16" |
| Length Less Shaft | 4 1/16" |
| Motor Application | OEM Replacement |
| Motor Design | Shaded Pole |
| Motor Frame Material | Steel |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | Clockwise Shaft End |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Auto |
| Motor Type | Shaded Pole |
| Mounting Stud Length | 3/4" |
| Mounting Stud Pattern | 2" x 2" |
| Mounting Stud Size | #8-32 |
| Mounting Type | Extended Studs |
| No. Of Shafts | 1 |
| No. Of Speeds | 3 |
| Number Of Shafts | 1 |
| Number Of Speeds | 3 |
| Oem Replacement Brand | Buck Stove |
| Overall Length | 6 9/16" |
| Replacement For | 7163-6045 |
| Service Factor | 1 |
| Shaft Dia. | 5/16" |
| Shaft Length | 2 1/2" |
| Shaft Type | Flat |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
| Ins. Class | Class B |
| Max. Ambient Temp. | 104°F |
| Motor Bearings | Sleeve |
| Motor Enclosure Design | Open Air Over |
| Motor Mounting Type | Stud |
| Motor Shaft Design | Flat |
| Nameplate Rpm | 1550 RPM |
| Phase | Single |
| Standards | CSA CERTIFIED, UL RECOGNIZED |
| Stud Size | #8 32 x 3/4" |
| Weight | 4 lbs. |
| Ship weight (kg) | 1.89 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 11.43 |
| Country of Origin | MX |
