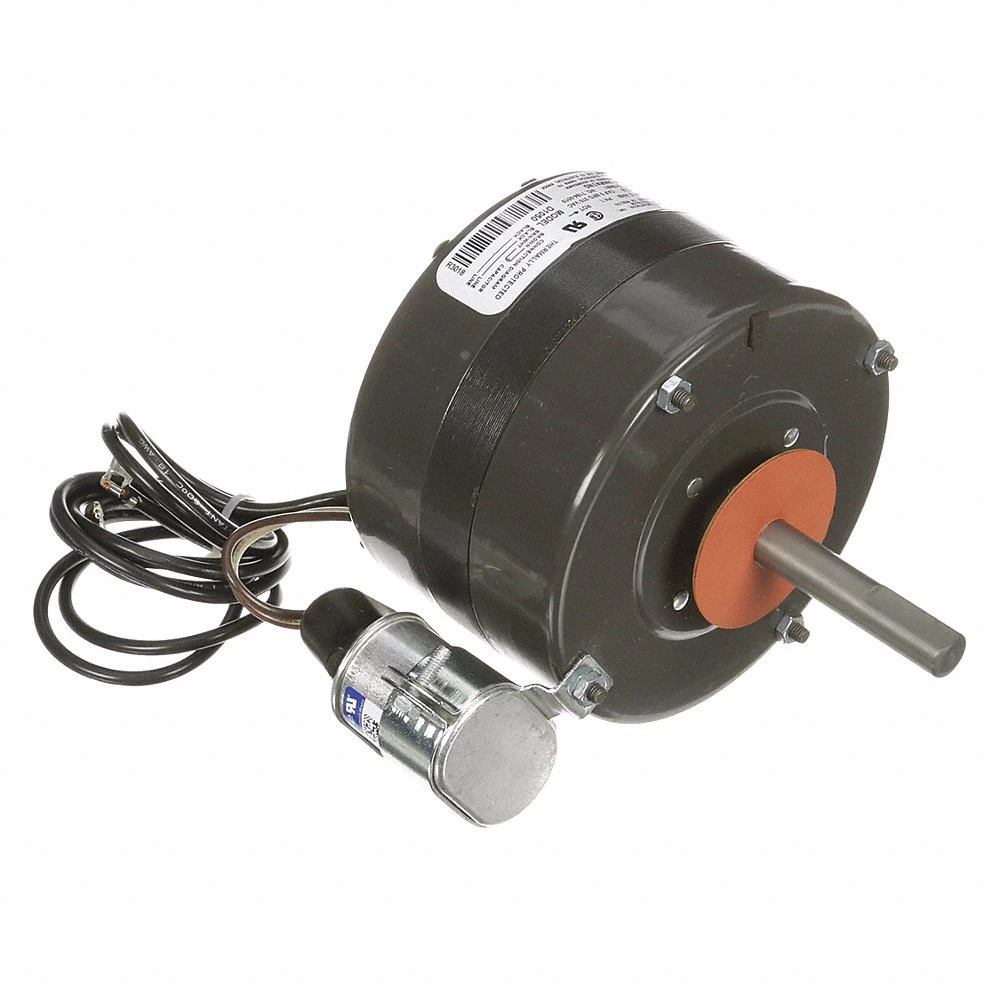

FASCO D1050 Unit Heater Motor, 1 Speed, 1/8 HP, 1,550 RPM, 230V AC, 42 Frame, 3 Inch Shaft Lg
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | OEM Replacement Motor |
| Application | Air Compressor |
| Bearing Type | Sleeve |
| Body Dia. | 5" |
| Capacitor Required | Included |
| Conduit Box Position | F1 |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Frame | 42 |
| Frequency | 60 Hz |
| Full Load Amps | 1A |
| Hp | 1/8 hp |
| Lead Length | 31" |
| Length Less Shaft | 4 3/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | OEM Replacement |
| Motor Bearings | Sleeve |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air Over |
| Motor Mounting Type | Band |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Clockwise Shaft End |
| Motor Thermal Protection | Auto |
| Motor Type | Permanent Split Capacitor |
| Mounting Holes | 4 |
| Mounting Stud Pattern | 3 1/4" x 3 1/4" |
| Mounting Type | Band |
| No. Of Mounting Holes | 4 |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| Number Of Shafts | 1 |
| Number Of Speeds | 1 |
| Overall Length | 6 11/16" |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 3" |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230V AC |
| Ship weight (kg) | 3.33 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 16.84 |
| Ship width (cm) | 13.03 |
| Country of Origin | MX |
