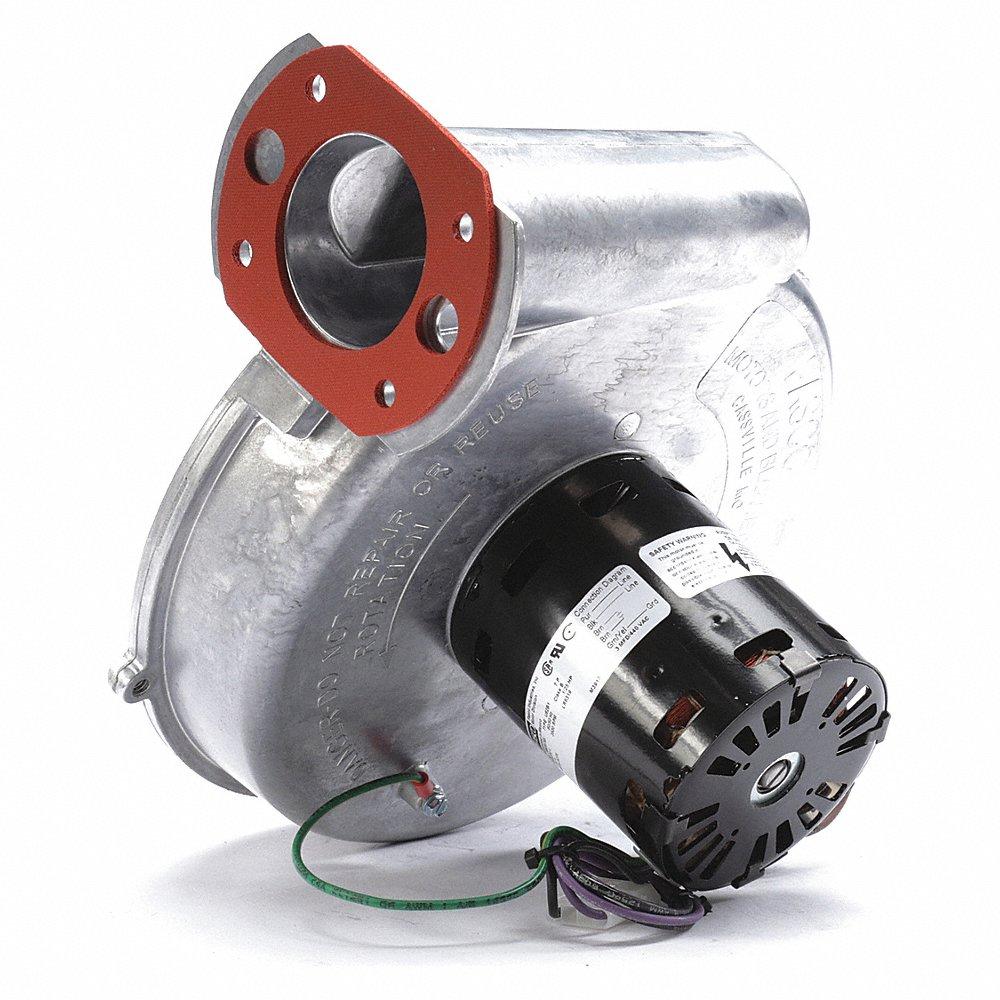

| Item | OEM Blower |
| Airflow @ 0.000 In Sp | 32 CFM |
| Amps | 0.34A |
| Application | Furnaces |
| Bearing Type | Ball |
| Blower Conduit Box | No |
| Blower Outlet Shape | Round |
| Blower Wheel Diameter | 7 7/8" |
| Blower Wheel Width | 3/4" |
| Compatible With Brand | Trane |
| Drive Type | Direct |
| Housing Color | Natural |
| Housing Material | Aluminum |
| Includes | Gasket |
| Inlet Dia. | 8 3/4" |
| Lead Length | 12" |
| Motor Insulation | Class B |
| Motor Type | Permanent Split Capacitor |
| Mounting Position | All Position |
| Oem Replacement | Yes |
| Outlet Dia. | 2 1/4" |
| Outlet Height | Not Applicable |
| Outlet Shape | Round |
| Outlet Width | Not Applicable |
| Overall Depth | 8" |
| Overall Height | 10 1/2" |
| Overall Width | 9 1/2" |
| Phase | 1 |
| Thermal Overload Protection | Auto |
| Wheel Dia. | 7 3/4" |
| Wheel Material | Aluminum |
| With Flange | Yes |
| Ambient Temperature | 40C |
| Bearing Type | Ball |
| Blower Outlet Flange | Yes |
| Blower Outlet Shape | Round |
| Csa | Yes |
| Current | 0.34 A |
| Current | 0.34A |
| Electrical Connection | Wire Leads |
| Frequency | 50/60 Hz |
| Frequency | 60/50 Hz |
| Inlet Diameter | 8 3/4" |
| Insulation Class | B |
| Maximum Fan Speed | 3500 RPM |
| Maximum Inlet Air Temperature | 200°F |
| Maximum Motor Speed | 3500 RPM |
| Motor Enclosure | Open |
| Motor Type | Permanent Split Capacitor |
| Nameplate Voltage | 208-230V AC |
| Number Of Speeds | 1 |
| Outlet Diameter | 2 1/4" |
| Phase | 1 |
| Replacement For Manufacturer Model Number | 7062-3973, X38040311-01 |
| Speed | 3500 rpm |
| Standards | CSA CERTIFIED, UL LISTED |
| Thermal Protection | Thermally |
| Ul | Yes |
| Voltage | 208-230 V |
| Wheel Diameter | 7 3/4" |
| Wheel Type | Backward Curved |
| Ship weight (kg) | 3.88 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 24.13 |
| Country of Origin | US |
