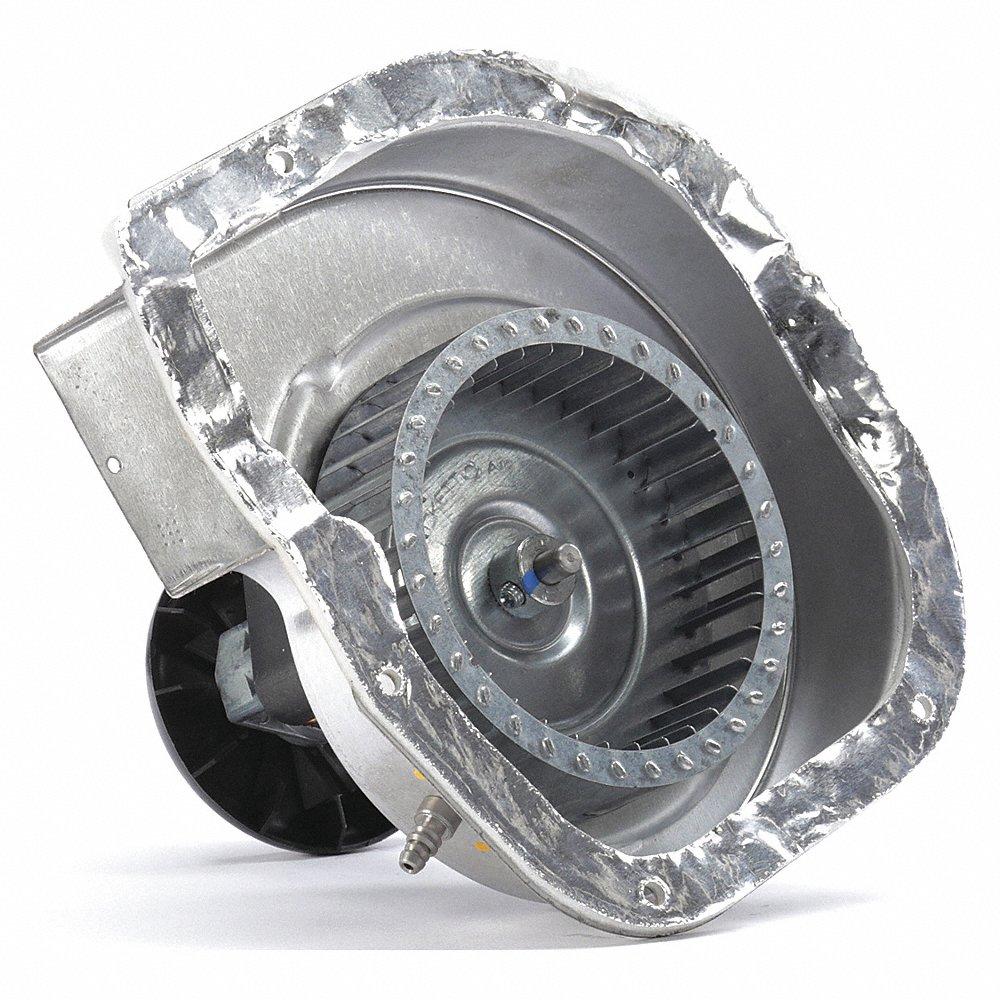

| Item | OEM Blower |
| Airflow @ 0.000 In Sp | 94 CFM |
| Amps | 1.71A |
| Application | Furnaces |
| Bearing Type | Sleeve |
| Blower Conduit Box | No |
| Blower Outlet Shape | Rectangular |
| Blower Wheel Diameter | 4 3/4" |
| Blower Wheel Width | 1 5/16" |
| Compatible With Brand | Goodman |
| Drive Type | Direct |
| Housing Color | Natural |
| Housing Finish | Metal |
| Housing Material | Steel |
| Inlet Dia. | 7 1/2" |
| Motor Insulation | Class B |
| Motor Type | Shaded Pole |
| Mounting Position | All Position |
| Oem Replacement | Yes |
| Outlet Dia. | Not Applicable |
| Outlet Height | 2 3/4" |
| Outlet Shape | Rectangular |
| Outlet Width | 1 3/4" |
| Overall Depth | 5 3/4" |
| Overall Height | 8 5/8" |
| Overall Width | 7 5/8" |
| Phase | 1 |
| Thermal Overload Protection | Auto |
| Wheel Dia. | 4 5/8" |
| Wheel Material | Steel |
| With Flange | No |
| Ambient Temperature | 40C |
| Bearing Type | Sleeve |
| Blower Outlet Flange | No |
| Blower Outlet Shape | Rectangle |
| Csa | Yes |
| Current | 1.71 A |
| Current | 1.71A |
| Electrical Connection | Male Terminals |
| Frequency | 60 Hz |
| Inlet Diameter | 7 1/2" |
| Insulation Class | B |
| Maximum Fan Speed | 3000 RPM |
| Maximum Inlet Air Temperature | 400°F |
| Maximum Motor Speed | 3000 RPM |
| Motor Enclosure | Open |
| Motor Type | Shaded Pole |
| Nameplate Voltage | 115V AC |
| Number Of Speeds | 1 |
| Phase | 1 |
| Replacement For Manufacturer Model Number | 7002-3036, B4059000 |
| Speed | 3000 rpm |
| Standards | CSA CERTIFIED, UL LISTED |
| Thermal Protection | Thermally |
| Ul | Yes |
| Voltage | 115 V |
| Wheel Diameter | 4 5/8" |
| Wheel Type | Forward Curved |
| Ship weight (kg) | 2.48 |
| Ship height (cm) | 21.91 |
| Ship length (cm) | 14.61 |
| Ship width (cm) | 19.37 |
| Country of Origin | MX |
