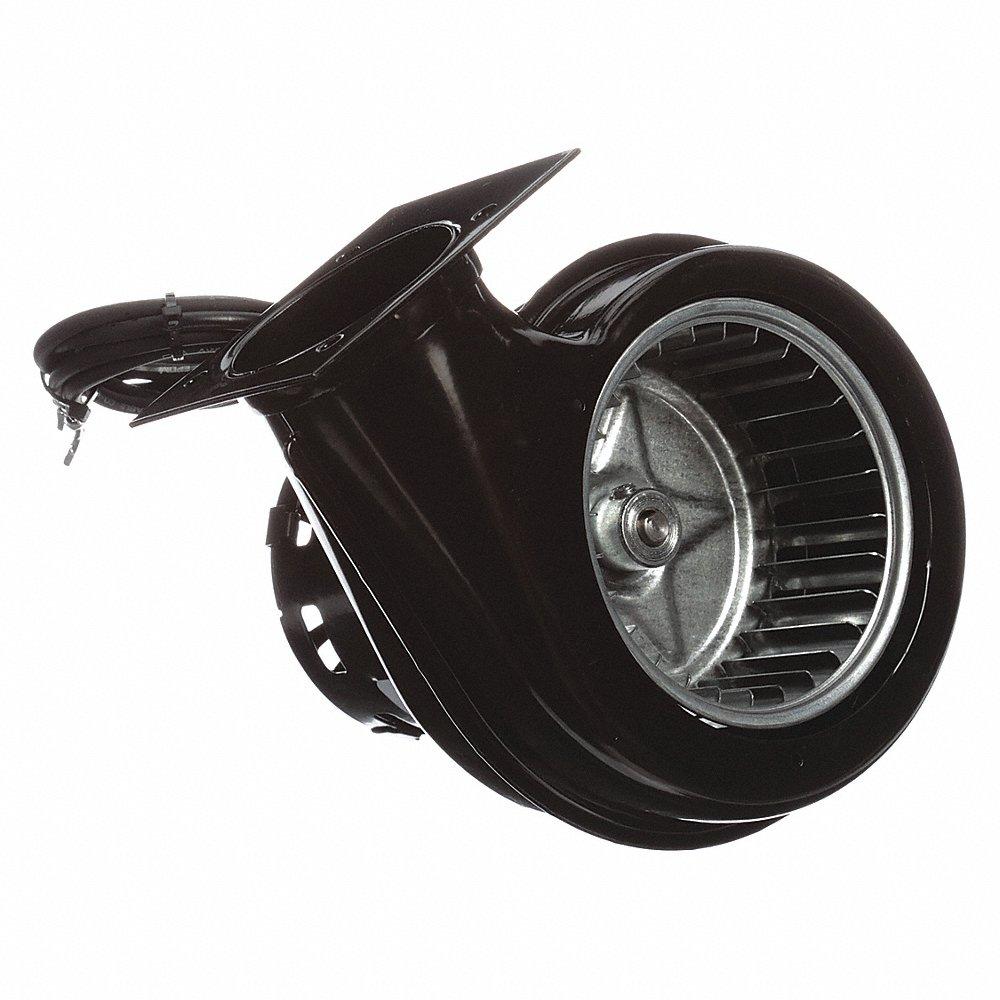

| Item | OEM Blower |
| Airflow @ 0.000 In Sp | 65 CFM |
| Amps | 0.3A |
| Application | Furnaces |
| Bearing Type | Sleeve |
| Blower Conduit Box | No |
| Blower Outlet Shape | Round |
| Blower Wheel Diameter | 3 13/16" |
| Blower Wheel Width | 1 7/8" |
| Compatible With Brand | Heil Quaker, Intercity Products |
| Drive Type | Direct |
| Housing Color | Black |
| Housing Finish | Paint |
| Housing Material | Steel |
| Inlet Dia. | 3 7/8" |
| Lead Length | 24" |
| Motor Insulation | Class B |
| Motor Type | Shaded Pole |
| Mounting Position | All Position |
| Oem Replacement | Yes |
| Outlet Dia. | 2 1/8" |
| Outlet Height | Not Applicable |
| Outlet Shape | Round |
| Outlet Width | Not Applicable |
| Overall Depth | 6 5/8" |
| Overall Height | 5 7/8" |
| Overall Width | 6 3/8" |
| Phase | 1 |
| Thermal Overload Protection | Auto |
| Wheel Dia. | 3 3/4" |
| Wheel Material | Steel |
| With Flange | Yes |
| Ambient Temperature | 40C |
| Bearing Type | Sleeve |
| Blower Outlet Flange | Yes |
| Blower Outlet Shape | Round |
| Csa | Yes |
| Current | 0.3 A |
| Current | 0.3A |
| Electrical Connection | Wire Leads |
| Frequency | 60 Hz |
| Inlet Diameter | 3 7/8" |
| Insulation Class | B |
| Maximum Fan Speed | 2800 RPM |
| Maximum Inlet Air Temperature | 104°F |
| Maximum Motor Speed | 2800 RPM |
| Motor Enclosure | Open |
| Motor Type | Shaded Pole |
| Nameplate Voltage | 230V AC |
| Number Of Speeds | 1 |
| Outlet Diameter | 2 1/8" |
| Phase | 1 |
| Replacement For Manufacturer Model Number | HQ1050144 |
| Speed | 2800 rpm |
| Standards | CSA CERTIFIED, UL LISTED |
| Thermal Protection | Thermally |
| Ul | Yes |
| Voltage | 230 V |
| Wheel Diameter | 3 3/4" |
| Wheel Type | Forward Curved |
| Ship weight (kg) | 1.98 |
| Ship height (cm) | 14.92 |
| Ship length (cm) | 16.83 |
| Ship width (cm) | 16.19 |
| Country of Origin | US |
