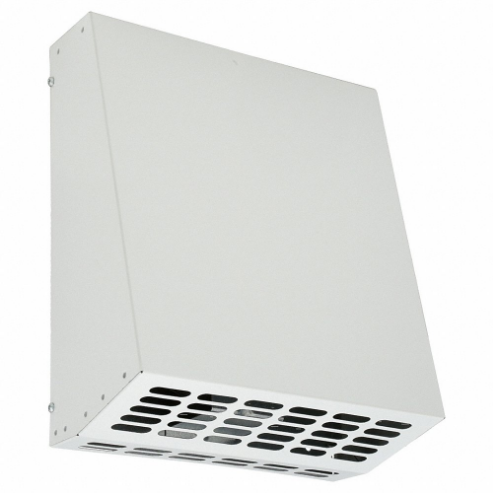

FANTECH RVF4XL Exterior Mount Fan, 4 Inch Duct, 189 cfm, 120V, 1 Phase
Get it by Tuesday, Jun 17
€233.77 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Wall Exhaust Fan |
| Amps | 0.84A |
| Blower Wheel Curve | Backward |
| Drive Package Included | Yes |
| Drive Package With Motor Included | Yes |
| Duct Dia. | 4" |
| Duct Shape | Round |
| Exhaust Airflow @ 0.000 In Sp | 193 CFM |
| Exhaust Airflow @ 0.100 In Sp | 180 CFM |
| Exhaust Airflow @ 0.200 In Sp | 172 CFM |
| Exhaust Airflow @ 0.400 In Sp | 154 CFM |
| Exhaust Airflow @ 0.600 In Sp | 136 CFM |
| Exhaust Airflow @ 0.800 In Sp | 118 CFM |
| Finish | Galvanized |
| Fits Duct Dia. | 4" |
| Full Load Amps | 0.79A |
| Heater | Without Heater |
| Housing Depth | 6" |
| Housing Height | 13" |
| Housing Material | Steel |
| Housing Width | 10 1/4" |
| Includes | Impeller |
| Lighted | Without Light |
| Max. Inlet Temp. | 140°F |
| Maximum Airflow | 193 CFM |
| Motor Insulation | Class B |
| Motor Type | Permanent Split Capacitor |
| Mounting Location | Wall |
| Overall Depth | 6" |
| Overall Height | 13" |
| Overall Width | 10 1/4" |
| Phase | 1 |
| Profile Height Family | High |
| Type | Exterior Mount |
| Vent Design | Ducted |
| Wattage | 91 W |
| Duct Diameter | 4" |
| Housing Finish | Powder Coated |
| Max. Exhaust Airflow @ 0.100 In Sp | 180 CFM |
| Maximum Exhaust Airflow @ 0.000 In Sp | 193 CFM |
| Motor Speed | 2700 RPM |
| Nameplate Voltage | 115V AC |
| Ship weight (kg) | 3.71 |
| Ship height (cm) | 20.3 |
| Ship length (cm) | 35.6 |
| Ship width (cm) | 27.9 |
| HS code | 8414596560 |
| Country of Origin | DE |
| Product | Model | Amps | Cfm @ 0.100-in. Sp | Cfm @ 0.200-in. Sp | Fits Duct Dia. | Housing Height | Housing Width | Mounting Location | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
RVF 6 | 0.840 | 220 | 204 | 6" | 13" | 10.25" | Outside Wall | €241.43 | |
|
RVF 8XL | 1.42 | 410 | 392 | 8" | 17" | 14.25" | Outside Wall | €306.58 | |
 |
RVF6XL | 1.46 | 360 | 346 | 6" | 17" | 14.25" | Wall | €302.75 | |
 |
40040 | - | - | - | - | - | - | - | €216.00 | |
|
44860 | - | - | - | - | - | - | - | €349.46 | |
 |
44861 | - | - | - | - | - | - | - | €403.46 | |
 |
44862 | - | - | - | - | - | - | - | €480.60 |
