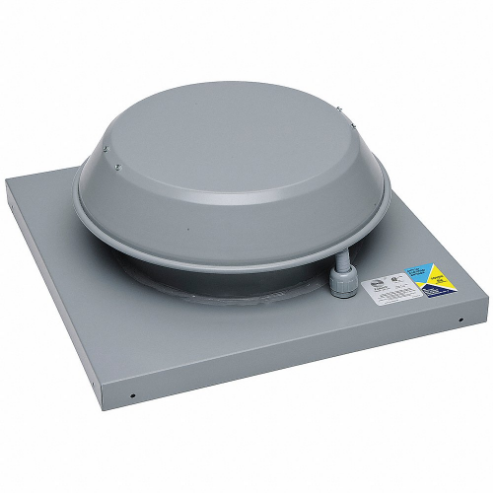

FANTECH REC 6 Exhaust Fan, Curb Mount, 6 Inch Duct, 120V, 1 Phase
Get it by Tuesday, Jun 17
€287.42 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Exhaust Fan |
| Airflow @ 0.000 In Sp | 227 CFM |
| Amps | 0.8A |
| Application | Commercial, Residential |
| Assembled/unassembled | Assembled |
| Assembly | Assembled |
| Base Dia. | Not Applicable |
| Base Height | 1 1/2" , 1.083" |
| Base Length | 15 1/2" |
| Base Shape | Square |
| Base Size | 15 1/2" x 15 1/2" |
| Base Width | 15 1/2" , 15 1/4" |
| Bearing Type | Permanently Sealed, Self-Lubricating Ball Bearing |
| Brake Hp | 1/50 hp |
| Compatible Curb Manufacturer Part Number | 49580 |
| Compatible Speed Control | 411102 |
| Cutout Length | 15 1/2" |
| Dimension A | 13 15/16" |
| Dimension B | 6 1/4" |
| Dimension C | 6" |
| Dimension D | 15 1/2" |
| Dimension E | 1 1/2" |
| Drive Package Included | Yes |
| Drive Package With Motor Included | Yes |
| Drive Type | Direct Drive |
| Duty Rating | Standard |
| Exhaust Airflow @ 0.000 In Sp | 227 CFM |
| Exhaust Airflow @ 0.125 In Sp | 213 CFM |
| Exhaust Airflow @ 0.250 In Sp | 199 CFM |
| Exhaust Airflow @ 0.375 In Sp | 184 CFM |
| Exhaust Airflow @ 0.500 In Sp | 169 CFM |
| Finish | Galvanized , Powder Coated |
| For Air Type | Clean Air |
| For High-static Pressure Applications | No |
| High-efficiency Motor | No |
| Hood Width | 13.9" |
| Housing Length | 13.9" |
| Housing Material | Steel |
| Housing Width | 13.9" |
| Includes Drive Package | Yes |
| Includes Motor | Yes |
| Max. Inlet Temp. | 140° , 140°F |
| Motor Type | Permanent Split Capacitor |
| Mount Type | Roof Curb |
| Mounting Location | Exterior Wall, Roof , Roof, Wall |
| Number Of Speeds | 1 |
| Overall Dia. | 15 1/2" |
| Overall Height | 7 3/4" |
| Overall Length | 15 1/2" |
| Overall Width | 15 1/2" |
| Phase | 1 |
| Safety Features | Built-In Thermal Overload Protection With Automatic Reset |
| Speed Control | Variable Speed , Yes |
| Wattage | 87 W |
| Wheel Dia. | 7 1/2" |
| Wheel Finish | Powder Coated |
| Wheel Material | Plastic |
| Wheel Type | Backward Curved , Backward Inclined |
| Brake Horsepower | 1/50 bhp |
| Current | 0.80A |
| Damper Size | 3 1/8" x 6" |
| Features | Excellent Heat Dissipation for Long Motor Life, Suitable for Airstream Temperatures of Up to 140°F |
| Frequency | 60 Hz |
| Housing Finish | Powder Coated |
| Includes Drive Package With Motor | Yes |
| Maximum Ambient Temperature | 140°F |
| Maximum Fan Speed | 2451 RPM |
| Maximum Inlet Air Temperature | 140°F |
| Maximum Static Pressure | 1 1/2 in. wc |
| Motor Horsepower | 3/25 hp |
| Nameplate Voltage | 115V AC |
| Overall Diameter | 15 1/2" |
| Speed Controllable | Variable Speed |
| Standards | AMCA RATED, CULUS |
| Weight | 9.7 lbs. |
| Wheel Diameter | 7 1/2" |
| Ship weight (kg) | 6.23 |
| Ship height (cm) | 35.6 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 50.8 |
| HS code | 8414519060 |
| Country of Origin | DE |
