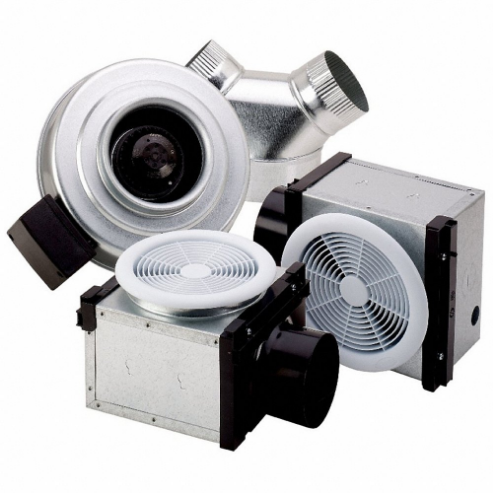

FANTECH PB270-2 Bath Fan, 6 and 4 Inch Duct, Without Light, 270 cfm
Get it by Tuesday, Jun 17
€260.59 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Bathroom Fan |
| Airflow @ 0.000 In Sp | 303 CFM |
| Application | General Purpose |
| Bearing Type | Ball |
| Cfm @ 0.200-in. Sp | 270 CFM |
| Cfm @ 0.400-in. Sp | 232 CFM |
| Cfm @ 0.600-in. Sp | 196 CFM |
| Cfm @ 0.800-in. Sp | 164 CFM |
| Cfm @ 1.000-in. Sp | 134 CFM |
| Cfm @ 1.500-in. Sp | 58 CFM |
| Cfm @ Duct | 270 CFM |
| Duct Dia. | 6" |
| Fits Duct Dia. | 4", 6" |
| Flange Width | 1" |
| For Fan Type | Centrifugal Duct Fan |
| Green Certification Or Other Recognition | Energy Star , Energy-Star.Png |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| High-efficiency Motor | No |
| Housing Dia. | 11 3/8" |
| Housing Material | Galvanized Steel |
| Includes | (2) Ceiling Grilles, (2) Grille Housings With Dampers, Mounting Bracket, Y Adapter |
| Inlet And Outlet Dia. | 6" |
| Length | 8" |
| Max. Amps | 0.68A |
| Max. Inlet Temp. | 140°F |
| Max. Wattage | 72 W |
| Motor Enclosure Design | Totally Enclosed |
| Motor Hp | 1/10 hp |
| Motor Output Power | 70 W |
| Mounting Position | Horizontal/Vertical |
| Number Of Speeds | 1 |
| Overall Dia. | 11 3/8" |
| Phase | 1 |
| Speed Control Included | No |
| Speed Controllable | Yes |
| Duct Diameter | 6" |
| Maximum Inlet Air Temperature | 140°F |
| Motor Enclosure | Totally Enclosed |
| Motor Ip Rating | IP44 |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Voltage | 120V AC |
| Overall Diameter | 11 3/8" |
| Overall Height | 13 7/8" |
| Overall Width | 7 1/4" |
| Standards | CULUS, HVI, UL |
| Ship weight (kg) | 7.46 |
| Ship height (cm) | 45.7 |
| Ship length (cm) | 53.3 |
| Ship width (cm) | 38.1 |
| HS code | 8414596560 |
| Country of Origin | US |
| Product | Model | Cfm @ 0.000-in. Sp | Cfm @ 0.200-in. Sp | Cfm @ 1.000-in. Sp | Cfm @ 1.500-in. Sp | Fits Duct Dia. | Length | Max. Amps | Max. Wattage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PB370-2 | 418 | 370 | 186 | 101 | 6" | 8.625" | 1.02 | 120 | €321.91 | |
 |
PB190 | 232 | 190 | 71 | 17 | 6" | 8" | 0.6 | 66 | €210.77 | |
 |
PB110 | 135 | 110 | - | - | 4" | 8.5" | 0.19 | 20 | €271.25 | |
 |
44945 | - | - | - | - | - | - | - | - | €316.29 | |
 |
44946 | - | - | - | - | - | - | - | - | €281.57 | |
 |
44947 | - | - | - | - | - | - | - | - | €289.29 |
