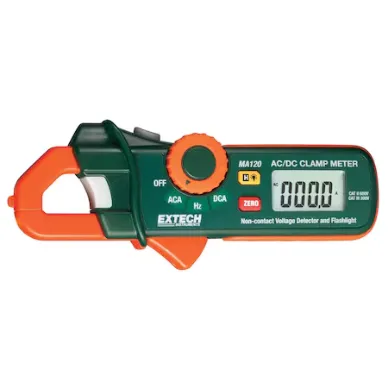

EXTECH MA120-NIST Clamp Meter With Nist, Ma120, Clamp-Jaw Jaw, CAT II 600V/CAT III 300V, TRMS, Included
Get it by Friday, Jun 13
Request a Quote
Payment
Get it by Friday, Jun 13
Payment
| Item | Meter |
| Ac Current Measurement Resolution | 0.1A |
| Ac Response Calculation | TRMS |
| Audible Continuity | No |
| Auto Ranging | Yes |
| Basic Dc Current Accuracy | ± 2.8% |
| Battery Access | Yes |
| Battery Included | Yes |
| Battery Size | AAA |
| Bluetooth Compatibility | No |
| Calibration Certificate | Yes - NIST With Data |
| Calibration Frequency | 50-60 Hz |
| Counts | 2000 |
| Current Leakage Testing | No |
| Data Logging | Yes |
| Data Storage | Yes |
| Dc Current Measurement Resolution | 0.1A |
| Display Type | LCD |
| Dustproof | No |
| Frequency Counter | 1 kHz |
| Frequency Measurement Accuracy | ±1.20% |
| Frequency Measurement Resolution | 0.01 Hz |
| Includes | (2) AAA Batteries, Soft Case |
| Intrinsically Safe | No |
| Jaw Opening | 0.7" |
| Jaw Style | Clamp Jaw |
| Max. Amps | 400A |
| Max. Conductor Size | 300 mcm |
| Max. Dc Amps | 200A |
| Max. Operating Temp. | 122°F |
| Max. Storage Temp. | 140°F |
| Maximum Frequency Measurement | 1 kHz |
| Min. Operating Temp. | 32°F |
| Min. Storage Temp. | -14°F |
| Minimum Capacitance Measurement | 40 nF |
| Minimum Frequency Measurement | 40 Hz |
| Non-contact Voltage Detector | Yes |
| Overall Height | 1.3" |
| Overall Width | 2 3/5" |
| Parameters Measured | AC Current, DC Current, Continuity, Diode, Duty Cycle, Frequency, Resistance |
| Removable Screen | No |
| Safety Rating | Cat II 600V, Cat III 300V |
| Thermal Imaging | No |
| Waterproof | No |
| Auto Power Off | Yes |
| Basic Ac Current Accuracy | +/-3% |
| Batteries Included | Yes |
| Bluetooth Compatible | No |
| Calibration Certificate Included | Yes - NIST With Data |
| Data Hold | Yes |
| Instrument Counts | 2000 |
| Manufacturers Warranty Length | 2 yrs. |
| Max. Ac Current | 400A |
| Max. Dc Current | 200A |
| Maximum Conductor Size | 300 MCM |
| Maximum Operating Temperature | 122°F |
| Maximum Storage Temperature | 140°F |
| Minimum Operating Temperature | 32°F |
| Minimum Storage Temperature | -14°F |
| Standards | CE |
| Ship weight (kg) | 0.45 |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
MA440-NIST | Clamp Meter | - | RFQ
|
 |
380947-NIST | Meter | - | RFQ
|
