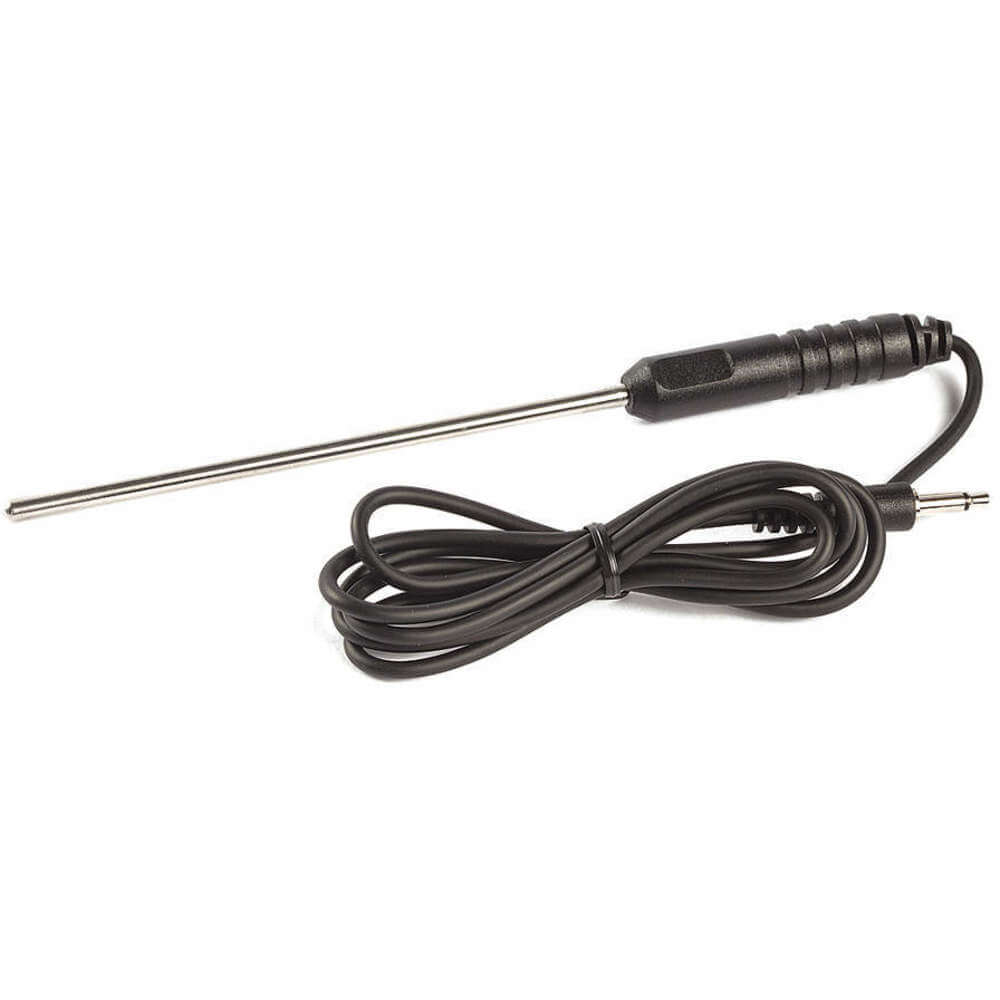

| Item | Temperature Probe |
| Calibration Certificate | No |
| Connection Type | Proprietary |
| Contact Material | Stainless Steel |
| Length | 4" |
| Probe Dia. | 0.188" |
| Process Connection | Probe |
| Temp. Measuring Element | 100 ohms RTD |
| Temp. Range | -10° to +70° |
| Type | Temperature Probe |
| Use | Temperature Measurement |
| Wire Length | 39" |
| Accuracy | +/-1.2°C |
| Cable Length | 3 ft. 3" |
| Cable Material | Polyurethane |
| Fitting Type | Bayonet |
| Flange Material | 316 Stainless Steel |
| For Air | Yes |
| For Application | Temperature Measurement |
| For Gases | No |
| For Liquids And Gels | Yes |
| For Solids | Yes |
| For Surfaces | Yes |
| Head Material | Stainless Steel |
| Includes Signal Converter | No |
| Includes Thermowell | No |
| Manufacturer Warranty Length | 6 Months |
| Maximum Temperature °c | 70°C |
| Maximum Temperature °f | 158°F |
| Minimum Temperature °c | -10°C |
| Minimum Temperature °f | 14°F |
| Number Of Wires | 4 |
| Opening/diameter | 0.1" |
| Probe Bend | Straight |
| Probe Diameter | 0.188" |
| Probe Length | 4" |
| Probe Sheath Material | Stainless Steel |
| Probe Size | 3/16" x 4" |
| Process Mounting | 1/8" NPT Bayonet |
| Resistance | 1000 ohms |
| Response Time | 1 sec. |
| Rtd Type | 4-Wire Pt100 ohm |
| Sensor Type | RTD |
| Temperature Range | 14°F to 158°F |
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 18.54 |
| Ship length (cm) | 6.1 |
| Ship width (cm) | 4.32 |
| Country of Origin | TW |
