| Item | Connection Cable |
| Application | For Series Connection Of AR/BR Safety Switches In Switch Chains Without IO Link Evaluation |
| Connector Color | Black |
| Connector Material | PVC |
| Connector Style | Y Style |
| Contact Material | TPU |
| Contacts | TPU |
| Convert From | M12 |
| Converts | M12 Plug |
| Current Rating | 2/4A |
| Ip Rating | IP65, IP67 |
| Length | 200 mm |
| Max. Contact Resistance | 5 milli ohms |
| Max. Operating Temp. | 80°C |
| Min. Operating Temp. | -25°C |
| Splitter Type | M12 To M12 Plug |
| Temp. Range | -25°C to +80°C |
| Voltage Rating | 30V |
| Convert To | M12 Plug |

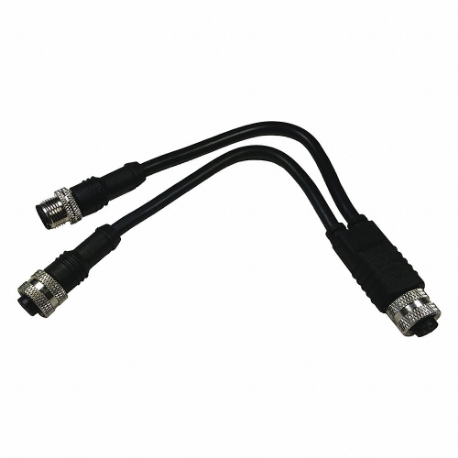

| Description | One M12 Male Connector With Two M12 Female Connector |
| Maximum Contact Resistance | 5 milli ohms |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -25°C |
| Overall Length | 200 mm |
| Temperature Range | -25°C to +80°C |
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
CES-EA-TC-AK08-104776 | Plug | €121.26 | |
 |
Y-DISTRIBUTOR | Connector | €126.99 |
