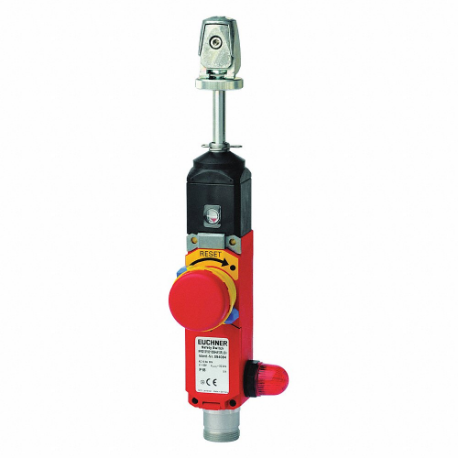

EUCHNER RPS3131SC100BHA10LL024 Emergency Cable Pull Switch, 10A, 240VAC, 2Nc/2No, Rotary Knob, 82 Ft
Get it by Tuesday, Jun 17
€1,057.82 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Emergency Cable Pull Switch |
| Ac Contact Rating | 10A @ 240V AC |
| Cable Connection Location | Left Or Right |
| Case Material | Die Cast Alloy |
| Contact Form | 2NC/2NO |
| Depth | 1.77" |
| Length | 8 4/5" |
| Length (straight Wireway) | 8 4/5" |
| Max. Cable Span | 82 ft. |
| Mounting Style | Single End |
| Operating Force | 23 lbs. |
| Reset | Rotary Knob |
| Switch Function | Maintained |
| Switching Ability | Single Cable |
| Thermal Amperage | 10A |
| Width | 1.67" |
| Action | Maintained |
| Cable Span - Maximum | 82 ft. |
| Current | 10A |
| Dc Contact Rating | 0.01 A @ 24 V |
| Display Qty | 1 |
| Indicator | 24V DC LED Light |
| Ip Rating | IP65 |
| Nema Enclosure Rating | 6 |
| Operating Temperature - Maximum | 122°F |
| Operating Temperature - Minimum | -4°F |
| Overall Depth | 1.77" |
| Overall Width | 1.67" |
| Product Type | Single Ended |
| Pull Force | 23 lbs. |
| Series | RPS Series |
| Standards | CCC, CSA, EAC, ISO |
| Wiring Entry | MR10 |
| Ship weight (kg) | 19.22 |
| Ship height (cm) | 4.5 |
| Ship length (cm) | 22.35 |
| Ship width (cm) | 4.24 |
| Country of Origin | DE |
| Product | Model | Price | |
|---|---|---|---|
 |
RPS3131PR300M | €541.87 |
