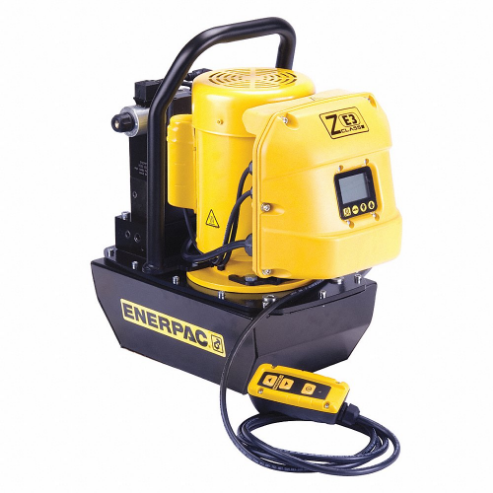

ENERPAC ZE4420SB Electric Hydraulic Pump, 4/3 Solenoid Valve, 5 Gallon Usable Oil, 10000 PSI
Get it by Tuesday, Jun 17
€11,907.72 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Hydraulic Electric Pump |
| Amps Ac | 13.6A |
| Control Pendant Voltage | 24V DC |
| Control Valve Function | Advance, Hold, Retract |
| Cylinder Compatibility | Double Acting |
| Dimension A | 7.1" |
| Dimension B | 16 1/2" |
| Dimension C | 16 3/5" |
| Dimension D1 | 19 1/5" |
| Dimension E | 15 3/5" |
| Dimension H2 | 24 3/5" |
| Duty Cycle | Continuous |
| Fluid Port Npt | 3/8" |
| Hp | 1 1/2 hp |
| Max. Operating Pressure | 10000 psi |
| Motor Rpm | 1750 RPM |
| Motor Type | Induction |
| Oil Displacement @ 0-200 Psi | 645 cu. in./min. |
| Oil Displacement @ 100 Psi | 650 cu. in./min. |
| Oil Displacement @ 1000 Psi | 625 cu. in./min. |
| Overall Length | 27.9" |
| Power Source | Electric |
| Pump Control | Pendant |
| Relief Valve Range | 1000 psi to 10000 psi |
| Reservoir Material | Steel |
| Solenoid Valve Voltage | 24V DC |
| Sound Level | 75 dBA |
| Type | Electric |
| Valve Operation | Solenoid |
| Charger Input Voltage | 115V AC |
| Control Pendant Size | 10 ft. |
| Control Valve Pressure Relief (minimum) | 1000 psi |
| Control Valve Type | 3-Position, 4-Way, Tandem Center |
| Current | 19A |
| Displacement @ 10,000 Psi | 60 cu. in./min. |
| Displacement @ 100 Psi | 650 cu. in./min. |
| Displacement @ 1000 Psi | 625 cu. in./min. |
| Displacement @ 200 Psi | 645 cu. in./min. |
| Displacement @ 5000 Psi | 62 cu. in./min. |
| Displacement @ 700 Psi | 600 cu. in./min. |
| Frequency | 50/60 Hz |
| Includes | LCD Display |
| Max. Control Valve Pressure Relief | 10000 psi |
| Max. Flow Rate | 60 cu. in./min. |
| Max. Horsepower | 1 1/2 hp |
| Max. Sound Level | 75 dBA |
| Media Intake Connection Size | 3/8" |
| Media Intake Connection Type | NPTF |
| Nameplate Voltage | 115V AC |
| Overall Height | 24.6" |
| Overall Width | 14 3/5" |
| Phase | Single |
| Reservoir Capacity | 5 gal. |
| Ship weight (kg) | 90.18 |
| Ship height (cm) | 86.36 |
| Ship length (cm) | 63.5 |
| Ship width (cm) | 80.01 |
| HS code | 8413500050 |
| Country of Origin | US |
| Model | Cylinder Compatibility | Dimension A | Dimension B | Dimension C | Dimension D | Dimension D1 | Dimension E | Dimension H | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| ZE4108DB | Single Acting | 5.6" | 11" | 8.1" | - | - | - | 20.2" | €9,905.94 | |
| ZE4110DB | Single Acting | 6.2" | 16.5" | 12" | 15.1" | 14.6" | 11" | 23.6" | €10,125.72 | |
| ZE4120DB | Single Acting | 7.1" | 16.5" | 16.6" | 19.7" | 19.2" | 15.6" | - | €10,410.84 | |
| ZE4208LB | Single Acting | 5.6" | 11" | 8.1" | - | - | - | 20.2" | €8,723.88 | |
| ZE4208MB | Single Acting | 5.6" | 11" | 8.1" | - | - | - | 20.2" | €7,345.80 | |
| ZE4210LB | Single Acting | 6.2" | 16.5" | 12" | 15.1" | 14.6" | 11" | 23.6" | €8,943.66 | |
| ZE4220MB | - | - | - | - | - | - | - | - | €7,850.70 |
