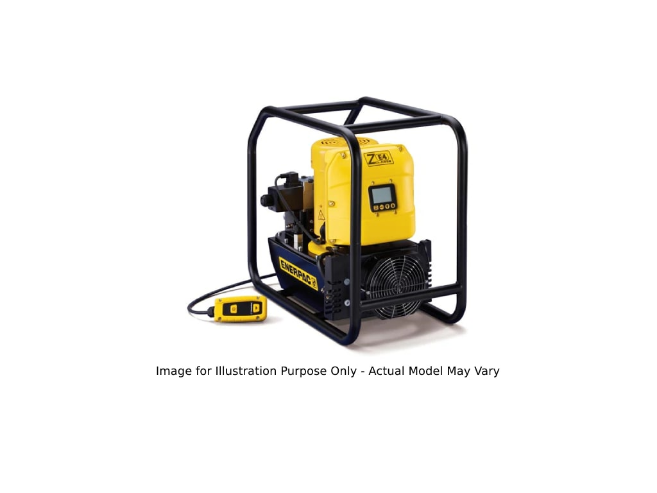

ENERPAC ZE4208TB-QHR Pump, Electric Induction, 115V, Roll Bar, 8L
Get it by Tuesday, Jun 17
€13,221.45 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Hydraulic Electric Pump |
| Promotion Restriction | Not Eligible For Promotion |
| Duty Cycle | Extended |
| For Use With Torque Wrenches | For use with all Enerpac torque wrenches |
| Maximum Flow At Rated Pressure | 0,8 l/min |
| Maximum Flow At Rated Pressure | 60 in3/min |
| Maximum Operating Pressure (psi) | 10,000 |
| Motor Electrical Specification | 115 V, 1 Ph |
| Motor Hertz | 50/60 Hz |
| Motor Phases | 1 Ph |
| Motor Size (hp) | 1.5 |
| Motor Size (kw) | 1,1 |
| Motor Size (rpm) | 1750 |
| Motor Voltage | 115 V |
| Output Flow Rate (in3/min) 100 Psi | 650 |
| Output Flow Rate (in3/min) 10000 Psi | 60 |
| Output Flow Rate (in3/min) 5000 Psi | 62 |
| Output Flow Rate (in3/min) 700 Psi | 600 |
| Output Flow Rate At 350 Bar (l/min) | 0,9 |
| Output Flow Rate At 50 Bar (l/min) | 8,1 |
| Output Flow Rate At 7 Bar (l/min) | 8,8 |
| Output Flow Rate At 700 Bar (l/min) | 0,8 |
| Power Source | Electric |
| Relief Valve Adjustment Range (bar) | 70 - 800 |
| Relief Valve Adjustment Range (psi) | 700 |
| Reservoir Capacity (cm3) | 8000 |
| Reservoir Capacity (in3) | 416 |
| Sound Level (dba) | 75 |
| Usable Oil Capacity (gal) | 2 |
| Usable Oil Capacity (litres) | 8,0 |
| Valve Model | VM32 |
| Valve Operation | Manual |
| Valve Type | 3-way, 2-position |
| Ship weight (kg) | 31.37 |
| Ship height (cm) | 52.07 |
| Ship length (cm) | 55.88 |
| Ship width (cm) | 33.25 |
| Country of Origin | US |
| Model | Cylinder Compatibility | Dimension A | Dimension B | Dimension C | Dimension D | Dimension D1 | Dimension E | Dimension H | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| ZE4108DB | Single Acting | 5.6" | 11" | 8.1" | - | - | - | 20.2" | €9,905.94 | |
| ZE4110DB | Single Acting | 6.2" | 16.5" | 12" | 15.1" | 14.6" | 11" | 23.6" | €10,125.72 | |
| ZE4120DB | Single Acting | 7.1" | 16.5" | 16.6" | 19.7" | 19.2" | 15.6" | - | €10,410.84 | |
| ZE4208LB | Single Acting | 5.6" | 11" | 8.1" | - | - | - | 20.2" | €8,723.88 | |
| ZE4208MB | Single Acting | 5.6" | 11" | 8.1" | - | - | - | 20.2" | €7,345.80 | |
| ZE4210LB | Single Acting | 6.2" | 16.5" | 12" | 15.1" | 14.6" | 11" | 23.6" | €8,943.66 | |
| ZE4220MB | - | - | - | - | - | - | - | - | €7,850.70 |
