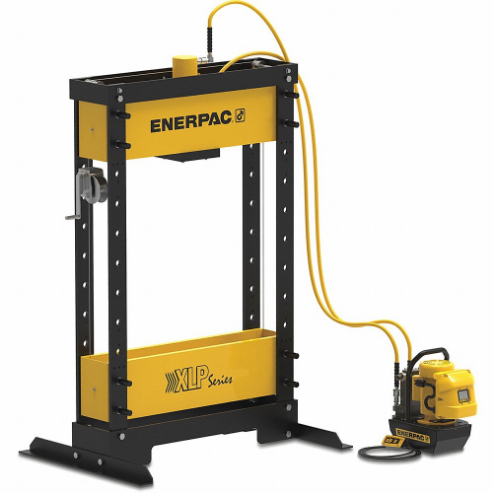

ENERPAC XLP5013ZEIU Press, 50 Ton
Due to weight and dimension restrictions, please request a shipping quote
€13,613.49 /unit
Request a Quote
Payment
Due to weight and dimension restrictions, please request a shipping quote
Payment
| Item | Hydraulic Press |
| Color | Yellow |
| Cylinder Stroke | 13.13" |
| Cylinder Type | Double Acting |
| Features | Cut-Away In Lower Frame For Pallet Truck Access Allows Easy Transportation, Horizontal Cylinder Adjustment Enables Flexible Load Placement |
| For Use With | Double Acting Cylinder |
| Max. Vertical Daylight | 37 4/5" |
| Promotion Restriction | Not Eligible For Promotion |
| Pump Type | Electric |
| Base Depth | 39 3/8" |
| Base Width | 54 3/4" |
| Capacity | 50 ton. |
| Capacity (imperial Tons) | 50 |
| Cylinder Model Number | RR5013 |
| Cylinder Stroke (in) | 13.13 |
| Cylinder Type | Double-Acting |
| Dimension A (in) | 12.2 |
| Dimension B (in) | 9.45 |
| Dimension C (in) | - |
| Dimension D (in) | 1.26 |
| Dimension E (in) | 38.98 |
| Dimension F (in) | 46.85 |
| Dimension G (in) | 54.72 |
| Dimension H (in) | 76.97 |
| Dimension J (in) | 79.53 |
| Dimension K (in) | 8.27-37.80 |
| Dimension M (in) | - |
| Dimension N (in) | 21.46 |
| Dimension O (in) | - |
| Dimension P (in) | 5.91 |
| Distance Between Uprights | 39" |
| Frame Type | H-Frame |
| Horsepower | 1 1/2 hp |
| Includes | Couplers, Cylinder, Gauge, Hose, Pump |
| Maximum Bed Width (in) | 38.98 |
| Maximum Operating Pressure (psi) | 10,000 |
| Maximum Vertical Daylight (in) | 37.8 |
| Operating Pressure | 10000 psi |
| Operation | Electric |
| Overall Depth | 39 3/8" |
| Overall Height | 77" |
| Overall Width | 54 3/4" |
| Power Source Type | Electric |
| Power Source Valve | Electric |
| Press Bed Depth | 9 1/2" |
| Press Bed Width | 39" |
| Pressing Speed (in/sec) | 0.09 |
| Pressing Speed (in/stroke) | - |
| Pump Model Number | ZE4408SI |
| Ram Advance Speed - Maximum | 0.98 in./sec. |
| Ram Press Speed - Maximum | 0.09 in./sec. |
| Ram-to-table Distance - Maximum | 37 3/4" |
| Ram-to-table Distance - Minimum | 8 1/4" |
| Rapid Advance Speed (in/sec) | 0.98 |
| Rapid Advance Speed (in/stroke) | - |
| Ship weight (kg) | 829.8 |
| Ship height (cm) | 195.54 |
| Ship length (cm) | 138.99 |
| Ship width (cm) | 100.01 |
| Country of Origin | IN |
| Product | Model | Price | |
|---|---|---|---|
 |
XLP256P392U | €4,542.12 | RFQ
|
 |
XLP256XA11GU | €5,438.07 | RFQ
|
 |
XLP5013ZEBU | €13,613.49 | RFQ
|
 |
XLP506P802U | €7,745.76 | RFQ
|
 |
XLP506XA12GU | €8,269.47 | RFQ
|
 |
XLP756XA12GU | €11,569.14 | RFQ
|
