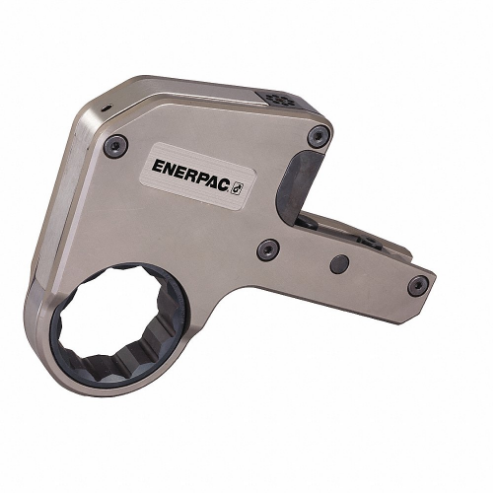

ENERPAC W4203SL UltraSlim Cassette, 2 13/16 Inch Hexagon Size
Get it by Tuesday, Jun 17
€4,690.62 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Cassette |
| Application | Torque |
| Compatible Manufacturer Drive Unit Number | W4000X |
| Compatible Tool Series | W Series Hydraulic Torque Wrench Drive |
| Compatible With | Enerpac W Series Hydraulic Torque Wrenches |
| Features | +/-3% Across Full Stroke, Robust Top Mounted Handle, Standard Top Mounted Handles For Safety, Uses Same Drive Unit As Standard W-Series Hexagon Cassettes |
| Hex Size | 2 3/16" |
| Maximum Hex Size | 3 3/16" |
| Minimum Hex Size (in) | 3 3/16" |
| Nose Radius | 1.73" |
| Promotion Restriction | Not Eligible For Promotion |
| Socket Shape | Hex |
| Tool Height | 7 1/16" |
| Tool Length | 7" |
| Tool Width | 1" |
| Cassette Hex Size | 2 3/16" |
| Compatible Grainger Drive Unit Number | 38XV32 |
| Hexagon Size S (in) | 2 3/16 |
| Hexagon Size S (mm) | 55 |
| Material | Steel |
| Maximum Drive Hex Size | 3 3/16" |
| Maximum Drive Hex Size (mm) | 56 mm |
| Maximum Operating Pressure (psi) | 10,000 |
| Minimum Drive Hex Size | 3 3/16" |
| Minimum Drive Hex Size (mm) | 56 mm |
| Minimum Torque (ft.lbs) | 430 |
| Minimum Torque (nm) | 591 |
| Minimum Torque Rated At | 1000 psi 69 bar |
| Nominal Torque (ft-lb) @ 10,000 Psi | 4360 lbs.-ft. |
| Nominal Torque (n-m) @ 10,000 Psi | 5423 N-m |
| Nominal Torque Rated At | 10,000 psi 690 bar |
| Nose Radius H (in) | 10,000 psi 690 bar |
| Nose Radius H (mm) | 44,0 |
| Product Type | Slim Torque Wrench Cassette |
| Standards | ATEX, CE |
| Tool Series | WSL |
| Tool Weight | 10 lbs. |
| Ship weight (kg) | 8.1 |
| Ship height (cm) | 17.96 |
| Ship length (cm) | 19.56 |
| Ship width (cm) | 4.45 |
| Country of Origin | UK |
