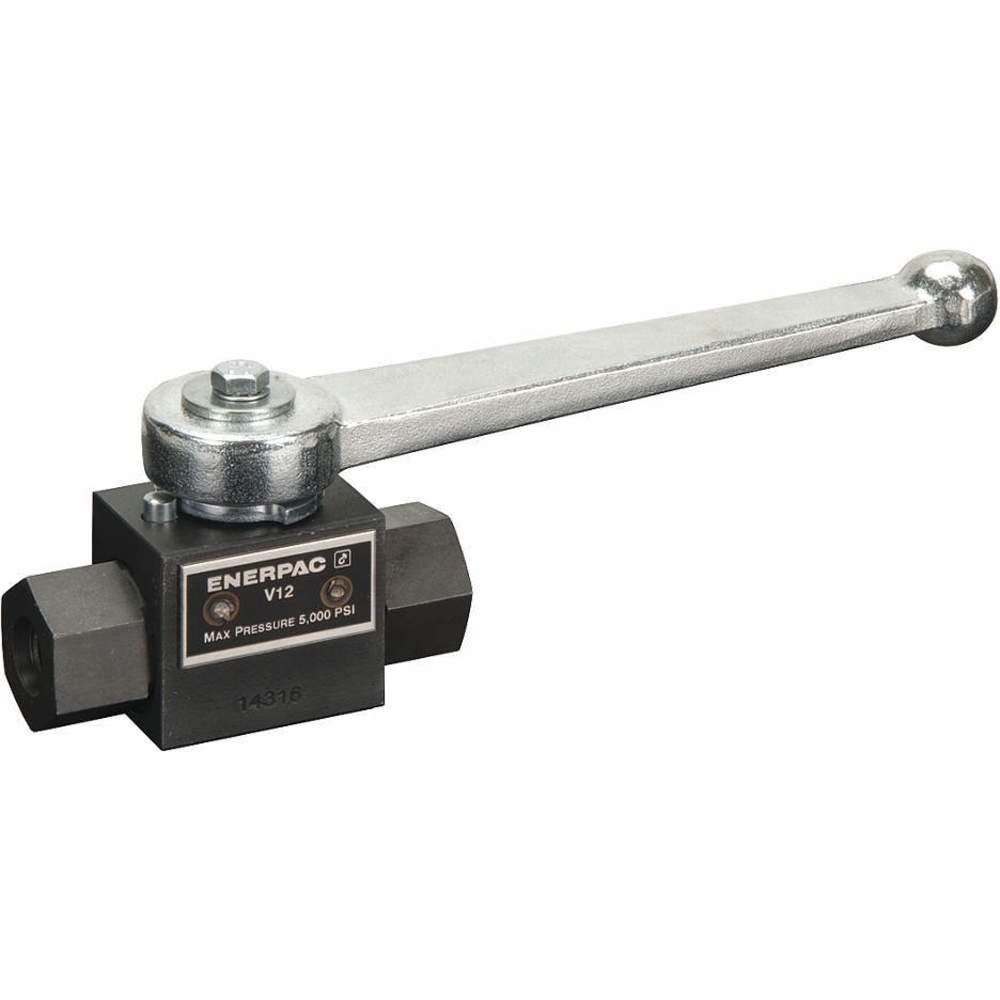

ENERPAC V12 Hydraulic Ball Valve #4-SAE 4 GPM
Get it by Wednesday, Jun 18
€193.05 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Hydraulic Ball Valve |
| Actuation Mechanism | Manual |
| Ball Seal Material | Viton |
| Body | Steel |
| Body Material | Steel |
| For Media | Oil |
| Handle Type - Hydraulic Ball Valves | Standard |
| Includes Seals | Seals Included |
| Max. Flow Rate | 4 GPM |
| Max. Operating Pressure | 5000 psi |
| Number Of Positions | 2 |
| Number Of Ways | 2 |
| Port Size | #4 |
| Pressure Range | 0 psi to 5000 psi |
| Promotion Restriction | Not Eligible For Promotion |
| Shaft Seal Material | Viton |
| Type | Ball |
| Valve Control | Directional Control, Flow Control |
| Control Direction | Two-Way |
| Fluid Service | Oil |
| Handle Length | 5.11" |
| Handle Lockability | Not Lockable |
| Maximum Flow Rate | 3.13 GPM |
| Maximum Pressure | 5000 psi |
| Overall Height | 2.31" |
| Overall Length | 5.42" |
| Overall Width | 2.66" |
| Port Connection Size | #4 |
| Port Connection Type | SAE O-Ring Boss |
| Port-to-port Length | 2.67" |
| Series | V |
| Valve Type | Ball |
| Ship weight (kg) | 0.63 |
| Ship height (cm) | 4.83 |
| Ship length (cm) | 17.53 |
| Ship width (cm) | 5.33 |
| Country of Origin | DE |
| Product | Model | Cylinder Compatibility | Item | Max. Operating Pressure | Port Size | Pressure Range | Valve Operation | Valve Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
VFC1 | - | Hydraulic Valve | 5000 psi | SAE #4 | 0 to 5000 psi | - | - | €167.31 | |
 |
VC15 | Single Acting | Closed Center Valve | 10000 psi | - | - | Manual | 3-Way, 3-Position, Closed Center | €1,582.02 | |
|
VC15L | Single Acting | Locking Valve | 10000 psi | - | - | Manual | 3-Way, 3-Position, Closed Center, Locking | €1,938.42 | |
 |
VC3L | Single Acting | 3 Way Locking Valve | 10000 psi | - | - | Manual | 3-Way, 3-Position, Tandem Center, Locking | €1,938.42 | |
 |
VFC3 | - | Flow Control Valve | 5000 psi | - | 0 to 5000 psi | - | - | €127.71 | |
 |
V2000 | - | Sequence Valve | 5000 psi | 1/8"-27 | - | - | - | €632.61 | |
 |
V10 | - | Liquid Flow Switch | 10000 psi | 1/2" | - | - | - | €252.45 |
