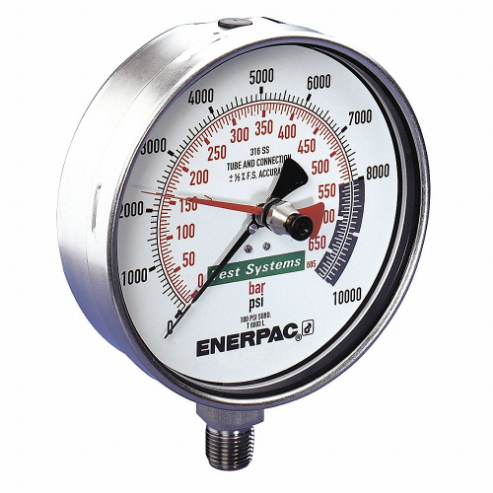

ENERPAC T6007L Pressure Gauge, 10000 PSI
Get it by Wednesday, Jun 18
€1,641.42 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Pressure Gauge |
| Accuracy | -0.5% to +0.5% |
| Accuracy Scale | Full Scale |
| Basic Gauge Case Material | Stainless Steel |
| Basic Gauge Sensor Material | Stainless Steel |
| Basic Gauge Socket Material | Stainless Steel |
| Blowout Safety Back | Yes |
| Calibration Certificate Included | No |
| Case Color | Metallic |
| Case Depth | 2 14/25" |
| Characteristics | Heavy Duty, Spring-Loaded Back |
| Color | Silver |
| Compatible Brand And Series | Enerpac 83-011 |
| Compatible Manufacturer Model Number | 43-704, 83-011 |
| Connection Location | Lower |
| Dial Size | 162 mm |
| Field Fillable | No |
| For Use With | Hydraulics |
| Freeze Resistant Movement | No |
| Gauge Application | Test System Gauge |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Connection Type | Cone |
| Gauge Filled With | Glycerin |
| Gauge Nominal Dial Size | 6 1/2" |
| Gauge Panel Mountable | No |
| Gauge Primary Range No.ed Graduations | 1000 |
| Gauge Primary Range Units | Psi |
| Gauge Special Options | Pressure Relief Back |
| Graduation Intervals | 10 Bar |
| Hazardous Location Rating | Not Rated |
| Includes Vent Plug | No |
| Ip Rating, Nema Rating | Not Rated |
| Lens Material | Glass |
| Liquid Filled | Yes |
| Liquid-filled Case | No |
| Mounting Hardware Included | No |
| Panel-mountable | No |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Pressure Range Type | Pressure |
| Primary Scale Numeric Increments | 100 |
| Primary Scale Units | Psi |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | Cone |
| Promotion Restriction | Not Eligible For Promotion |
| Removable Bezel | No |
| Requires Adapter | Yes |
| Scale Type | Dual |
| Secondary Pressure Range | 0 psi to 700 psi |
| Secondary Scale Numeric Increments | 100 |
| Secondary Scale Units | Bar |
| Smallest Graduation | 100 psi |
| Type | Dry |
| Accuracy Percentage Of Full Scale | 0.5 |
| Adjustable Pointer | No |
| Application | Test And Measurement |
| Case Material | 316 Stainless Steel |
| Compatible Gauge Adapter | Enerpac 83-011 |
| Compatible Grainger Part Number | 30T843 |
| Dial Color | White |
| Face Diameter (mm) | 162 |
| Gauge Case Liquid | None |
| Gauge Lens Material | Glass |
| Gauge Wetted Parts | Stainless Steel |
| Graduation (bar) | 10 |
| Graduation (psi) | 700 |
| Graduation Intervals (bar) | 10 |
| Graduations | 100/100 psi x 100/10 Bar |
| Hydraulic Pressure Gauge Type | Dial Hydraulic Test Pressure Gauge |
| Includes | Pressure Equalizing Membrane, Safety Blow Out Disk |
| Includes Mounting Hardware | No |
| Ip/nema Rating | Not Rated |
| Maximum Operating Pressure (psi) | 10,000 |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 162 mm |
| Number Intervals (bar) | 100 |
| Number Intervals (psi) | 1000 |
| Pressure Gauge Type | Hydraulic Pressure Test Gauge |
| Pressure Range | 0 psi to 10000 psi |
| Primary Range | 0 psi to 10000 psi |
| Primary Scale Minor Graduations | 100 |
| Primary Units | Psi |
| Process Connection | 1/4" Cone Male |
| Secondary Range | 0 Bar to 700 Bar |
| Secondary Scale Minor Graduations | 10 |
| Secondary Scale Numeric Increments | 100 |
| Secondary Units | Bar |
| Sensor Material | 316 Stainless Steel |
| Series | T-Gauge |
| Socket Material | 316 Stainless Steel |
| Style | Dry |
| Thread (in) | 1/4 Cone |
| Vibration Resistance | None |
| Wetted Parts Material | 316 Stainless Steel |
| Ship weight (kg) | 1.26 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
