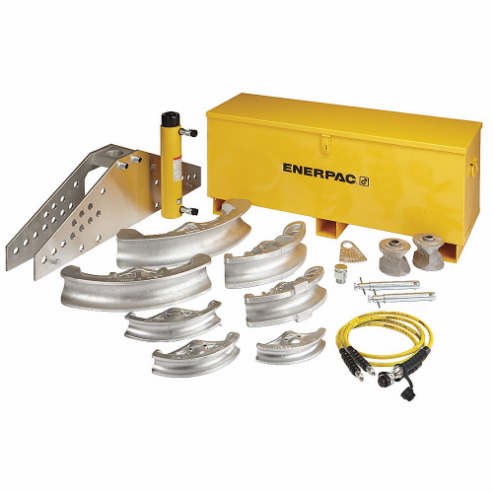

ENERPAC STB202N Hydraulic Pipe Bender 1-1/4 to 4 Inch
Get it by Tuesday, Jun 17
€19,828.71 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Hydraulic Pipe Bender |
| Application | Bending |
| Bend Angle | 90° |
| Compatible Pipe Material | Steel |
| Features | Double-Acting Cylinder To Eject Pipe From The Bending Shoe |
| Function | Creates Smooth Wrinkle-Free Bends |
| Includes | Angle Indicator, Shoe Lock Pin, Cylinder, Hose, Manual, Storage Case |
| Material | Aluminum |
| Max. Compatible Pipe Size | 4" |
| Max. Pressure | 10000 psi |
| Maximum Flow Rate | Not Applicable |
| Maximum Pipe Bend Radius | 8 7/8" |
| Measuring Height | 18" |
| Measuring Length | 47 15/16" |
| Min. Operating Pressure | Not Applicable |
| Minimum Compatible Pipe Size | 1 1/4" |
| Minimum Flow Rate | Not Applicable |
| Minimum Pipe Bend Radius | 6 7/8" |
| Number Of Shoes | 9 |
| Number Of Shoes Included | 9 |
| Power Source | Hydraulic |
| Pump Type Included | Cylinder |
| Maximum Compatible Pipe Size | 4" |
| Maximum Operating Pressure | 10000 psi |
| Maximum Pipe Bend Angle | 90° |
| Minimum Compatible Pipe Size | 1 1/4" |
| Pressure Port | 3/8" NPTF |
| Product Type | Hydraulic Pipe Bender |
| Return Port | 3/8" NPTF |
| Tool Series | STB Series |
| Tool Weight | 381 lbs. |
| Ship weight (kg) | 172.35 |
| Ship height (cm) | 45.72 |
| Ship length (cm) | 120.95 |
| Ship width (cm) | 38.74 |
| Country of Origin | US |
| Product | Model | Material | Pipe Range Nominal Size One Shot | Power Source | Voltage | Price | |
|---|---|---|---|---|---|---|---|
 |
STB101A | Aluminum | 1/2" to 2" | Air Pump | - | €8,090.28 | |
|
STB101B | Aluminum | 1/2" to 2" | Electric Pump | 115V | €10,139.58 | |
|
STB101E | Aluminum | 1/2" to 2" | Electric Pump | 230V | €10,330.65 | |
 |
STB101H | Steel | 1/2" to 2" | Hand Pump | - | €7,186.41 | |
|
STB101N | Aluminum | 1/2" to 2" | - | - | €6,901.29 | |
 |
STB101X | Aluminum | 1/2" to 2" | - | - | €5,262.84 | |
|
STB202B | Aluminum | 1 1/4" to 4" | Electric Pump | 115V | €29,259.45 |
