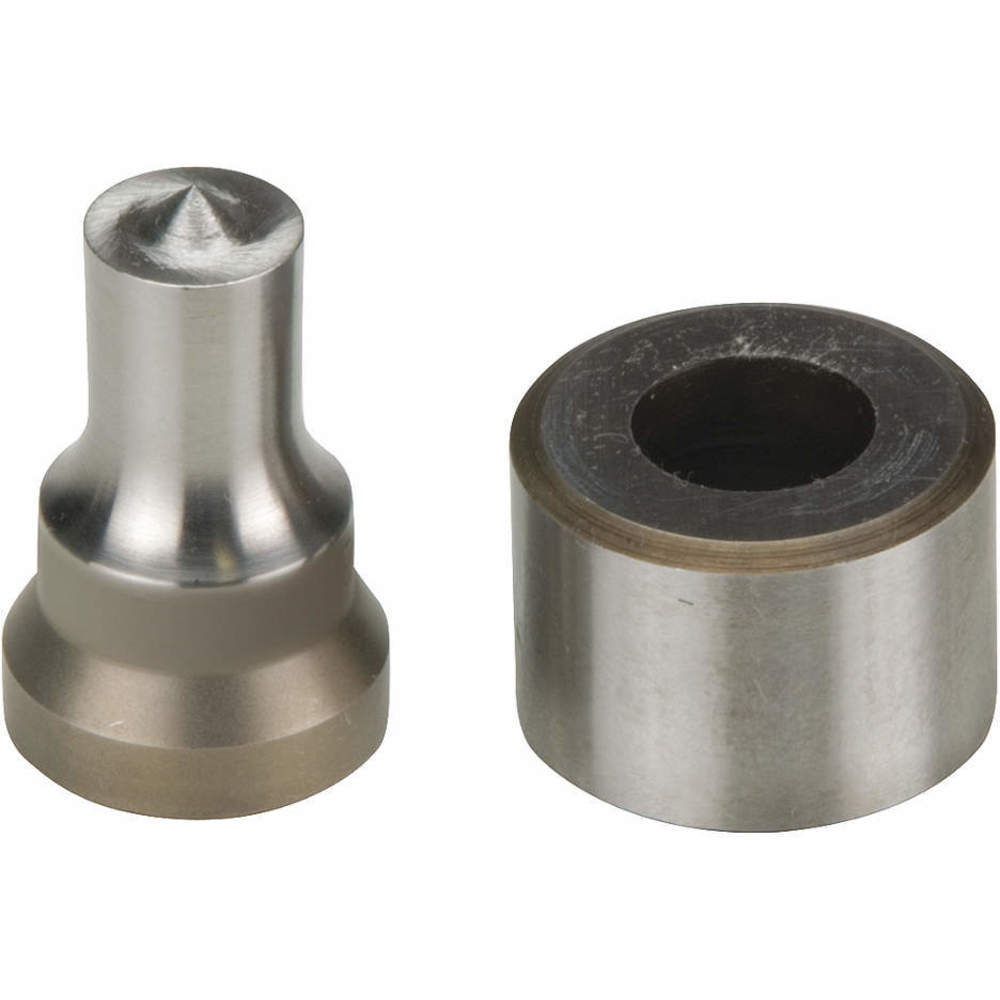

ENERPAC SP170 Punch Die Set, 50 Ton, 5/8 Inch Bolt Size, Circle Hole Shape
Get it by Tuesday, Jun 17
€205.92 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Punch and Die Set |
| Boiler Plate Maximum Allowable Material Thickness To Be Punched | 14/25" |
| Bolt Size | 5/8" |
| Cold Rolled C1018 Maximum Allowable Material Thickness To Be Punched | 14/25" |
| Hole Shape | Circle |
| Hole Size | 33/50" |
| Hot Rolled C1095 Annealed Maximum Allowable Material Thickness To Be Punched | 2/5" |
| Mild A7 Maximum Allowable Material Thickness To Be Punched | 14/25" |
| Promotion Restriction | Not Eligible For Promotion |
| Stainless 304 Hot Rolled Maximum Allowable Material Thickness To Be Punched | 0.51" |
| Stainless Annealed Maximum Allowable Material Thickness To Be Punched | 0.51" |
| Struct Corten Astma242 Maximum Allowable Material Thickness To Be Punched | 1/2" |
| Structural A36 Maximum Allowable Material Thickness To Be Punched | 14/25" |
| Width | 2" |
| Boilerplate | 0.56" |
| Bolt Size (in.) | 5/8" |
| Capacity (tons) | 50 ton. |
| Characteristics | Circle Hole |
| Cold Rolled C-1018 | 0.56 |
| Hole Size (in.) | 0.66" |
| Hot Rolled C-1050 | 0.51 |
| Hot Rolled C-1095 | 0.32 |
| Hot Rolled C-1095 Annealed | 0.4 |
| Includes | CR400 Female Couplers, Punch and Die Changeover Tools |
| Mild A-7 | 0.56 |
| Stainless 302 Annealed | 0.51 |
| Stainless 304 Hot Rolled | 0.51 |
| Stainless 316 Cold Rolled | 0.51 |
| Standard Bolt Size (in.) | 5/8" |
| Standard Hole Size (in.) | 0.66" |
| Struct Corten Astm A242 | 0.5 |
| Structural A-36 | 0.56 |
| Working Pressure (psi) | 10000 psi |
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 8.38 |
| Ship length (cm) | 6.1 |
| Ship width (cm) | 7.62 |
| Country of Origin | US |
| Product | Model | Boiler Plate Maximum Allowable Material Thickness To Be Punched | Bolt Size | Cold Rolled C1018 Maximum Allowable Material Thickness To Be Punched | Hole Size | Hot Rolled C1050 Maximum Allowable Material Thickness To Be Punched | Hot Rolled C1095 Annealed Maximum Allowable Material Thickness To Be Punched | Hot Rolled C1095 Maximum Allowable Material Thickness To Be Punched | Mild A7 Maximum Allowable Material Thickness To Be Punched | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SP121 | 0.56" | 7/8" | 0.56" | 0.91" | 0.35" | 0.35" | 0.22" | 0.56" | €229.68 | |
 |
SP123 | 0.56" | 1" | 0.56" | 1.01" | 0.31" | 0.31" | 0.19" | 0.56" | €248.49 | |
 |
SP150 | 0.53" | 1/2" | 0.53" | 0.53" | 0.49" | 0.4" | 0.32" | 0.53" | €195.03 | |
 |
SP190 | 0.56" | 3/4" | 0.56" | 0.78" | 0.49" | 0.4" | 0.32" | 0.56" | €224.73 |
