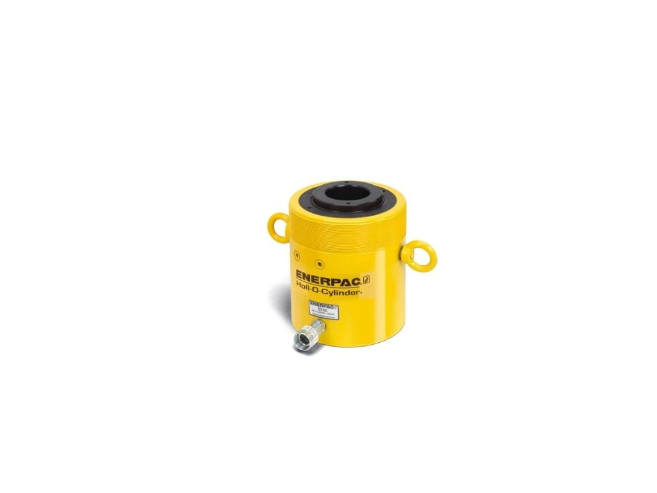

ENERPAC RCH1211 Hollow-O-Cylinder, Single Acting, 12 Ton
Get it by Tuesday, Jun 17
€1,094.94 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Hydraulic Cylinder |
| Promotion Restriction | Not Eligible For Promotion |
| Capacity Class (tonnage) | 12 |
| Center Hole Diameter Y (in) | 0.77 |
| Center Hole Diameter Y (mm) | 19,5 |
| Collapsed Height A (in) | 4.75 |
| Collapsed Height A (mm) | 120 |
| Coupler | AR630 Coupler |
| Coupler | 700 |
| Cylinder Effective Area Advance (cm2) | 17,9 |
| Cylinder Effective Area Advance (in2) | 2.76 |
| Extended Height B (in) | 6.38 |
| Extended Height B (mm) | 162 |
| Material | Steel |
| Maximum Cylinder Capacity Advance (kn) | 125 |
| Maximum Cylinder Capacity Advance (short Tons) | 13.8 |
| Maximum Operating Pressure (psi) | 10,000 |
| Oil Capacity Advance (cm3) | 75 |
| Oil Capacity Advance (in3) | 4.49 |
| Plunger Type | Hollow |
| Return Type | Single-Acting, Spring Return |
| Stroke (in) | 1.63 |
| Stroke (mm) | 42 |
| Surface Treatment | Paint |
| Ship weight (kg) | 3.21 |
| Ship height (cm) | 12.07 |
| Ship length (cm) | 12.07 |
| Ship width (cm) | 13.87 |
| Country of Origin | US |
| Product | Model | Base Mounting Holes Bolt Circle | Base Mounting Holes Thread Depth | Base Mounting Holes Thread Size | Base To Advance Port | Capacity | Collar Thread Length | Couplers | Cylinder Bore | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RCH120 | 2" | 0.35" | 5/16"-18 UNC | 0.38" | 12 ton. | 1.19" | AR630 Coupler | 2.13" | €843.48 | |
 |
RCH-123 | 2" | 0.5" | 5/16"-18 UNC | 0.98" | 12 ton. | 1.19" | CR400 Coupler | 2.13" | €2,206.89 | |
 |
RCH1003 | 7" | 0.75" | 5/8"-11 UNC | 1.5" | 100 ton. | 2.38" | CR400 Coupler | 6.5" | €13,179.02 | |
|
RCH-206 | 3.25" | 0.37" | 3/8"-16 UNC | 0.75" | 20 ton. | 1.5" | CR400 Coupler | 2.88" | €3,357.72 | |
 |
RCH-306 | 3.63" | 0.55" | 3/8"-16 UNC | 1" | 30 ton. | 1.66" | CR400 Coupler | 3.5" | €4,057.24 | |
 |
RCH603 | 5.13" | 0.55" | 1/2"-13 UNC | 1.25" | 60 ton. | 1.91" | CR400 Coupler | 4.88" | €5,025.47 | |
|
RCH606 | 5.13" | 0.55" | 1/2"-13 UNC | 1.25" | 60 ton. | 1.91" | CR400 Coupler | 4.88" | €6,962.80 |
