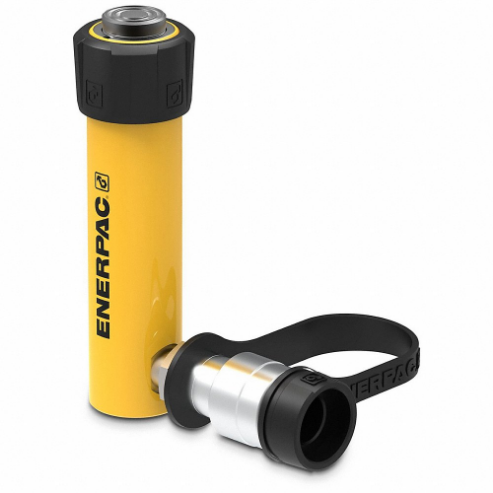

ENERPAC RC-53 General Purpose Hydraulic Cylinder, 3.11 Inch Stroke Length

• Enerpac 53, RC-Series general purpose hydraulic ram for lifting heavy loads using hydraulic pumps in metalworking and maintenance & repair applications
• Heavy-duty pre-tensioned spring for improving retraction speed and GR2 bearing design for reducing wear & ensuring durability
• Alloy steel construction offers high strength & baked enamel finish protects against corrosive fluids & chemicals
• Plunger wiper for protection against external contamination, base mounting holes for easy fixturing & cylinder thread protector for ease-of-use
• Includes CR-400 coupler and dust cap for covering the port when not in use
• Features round body with single piston rod for use in general purpose applications in all positions

Features:

• It features a heavy-duty pre-tensioned spring for improved retraction speed and a GR2 bearing design for enhanced durability.
• This hydraulic cylinder have alloy steel construction for high strength and baked enamel finish to protect against corrosive fluids and chemicals.
• It is equipped with a plunger wiper for protection against external contamination, base mounting holes for easy fixturing and a cylinder thread protector for ease-of-use.
• This hydraulic cylinder is integrated with a round body and single piston rod, making it suitable for general-purpose applications in all positions.

Frequently Asked Questions:

Q. How to install this Enerpac RC-53 general-purpose hydraulic cylinder?

A.

• Identify the suitable mounting location and ensure it can accommodate the size and weight of the hydraulic cylinder.
• Prepare the mounting surface by cleaning and removing any debris or obstructions.
• Position the hydraulic cylinder in the desired location, aligning the base mounting holes with the corresponding holes on the mounting surface.
• Securely attach the cylinder to the mounting surface using appropriate bolts or screws, ensuring a tight and stable connection.
• Ensure the cylinder is properly aligned and level to prevent any misalignment or strain during operation.
• If necessary, apply thread sealant to the cylinder's connections to ensure a leak-free installation.
• Connect the hydraulic hoses or fittings to the cylinder's ports, ensuring proper tightening and sealing to prevent fluid leaks.
• Test the cylinder's operation by slowly and gradually applying hydraulic pressure, checking for any abnormalities or leaks.
• Once the installation is complete and the cylinder is functioning properly, perform a final inspection to verify the stability and integrity of the installation.

Q. What factors should be considered while choosing a hydraulic cylinder?

A.

• Application requirements: Evaluate load capacity, operating pressure and stroke length.
• Cylinder type: Choose between single-acting or double-acting cylinders based on desired functionality.
• Mounting style: Consider space and options like tie-rod, welded or flange-mounted cylinders.
• Operating conditions: Evaluate environment, temperature, humidity and corrosive substances for suitable seals and materials.
• Quality and reliability: Select cylinders from reputable manufacturers known for high-quality and reliable products.
• Maintenance and serviceability: Assess ease of maintenance, spare part availability and technical support.
• Cost: Consider initial and long-term expenses, including maintenance, repairs and energy consumption.
• Safety features: Look for cylinders with pressure relief valves, position sensors and emergency stop functions for safe operation.

Q. What is the difference between a single-acting and a double-acting hydraulic cylinder?

A. A single-acting hydraulic cylinder has one hydraulic port and uses hydraulic pressure to extend the piston, relying on an external force (like gravity or spring) to retract it. In contrast, a double-acting hydraulic cylinder has two ports, enabling hydraulic pressure to extend and retract the piston, providing bi-directional movement.
