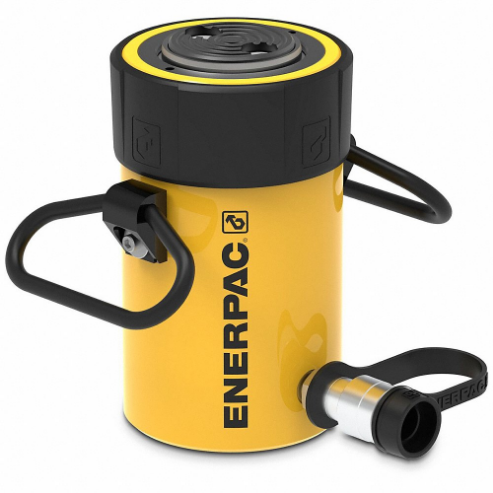

ENERPAC RC-504 General Purpose Hydraulic Cylinder, Steel Acting, 50 Ton, Capacity

Features:

• Enerpac RC504 hydraulic cylinder features steel construction with baked enamel finish for increased wear resistance and extended life.
• It features a single-acting mechanism using fluid on one side of the piston for extension, while the spring action helps in retraction for continuous operation.
• This hydraulic cylinder comes with a plunger wiper for reducing contamination and a grooved plunger saddle for protecting the plunger during lifting applications.
• It offers collar thread and plunger thread mounting for easy fixturing and Includes a quick-connect CR400 coupler (for connection with CH-604 male coupler) and a dust cap for covering the port when not in use.
• This Enerpac RC504 hydraulic cylinder has Trio Hybrid pre-tensioned spring system that provides faster retraction and high-grade polyethene seals for less wear and prolonged service life.
• It has a strengthened stop ring for improving side load resistance and durability.

Compatible Accessories:

• Enerpac CATS100 Tilt Saddle: It enables controlled tilting of loads, providing enhanced versatility and precision in various lifting and positioning applications.
• Enerpac GA45GC Gauge Adapter: It enables easy connection of pressure gauges, allowing precise monitoring of hydraulic pressure during operation.

Frequently Asked Questions:

Q. What is the capacity of Enerpac RC504 hydraulic cylinder?

A. This hydraulic cylinder has a maximum capacity of 50-tons.

Q. Is the brand's RC504 hydraulic cylinder double-acting or single-acting?

A. Enerpac RC504 cylinder is a single-acting cylinder. It applies force in one direction only and relies on the external forces of the spring for retraction.

Q. How can I control Enerpac RC504 hydraulic cylinder?

A. To extend or retract the brand's RC504 cylinder, you will need to control the flow of hydraulic fluid into or out of the cylinder, which is achieved by connecting the cylinder to a compatible hydraulic pump or valve that allows you to regulate the hydraulic pressure.

Q. How to maintain Enerpac RC504 hydraulic cylinder?

A.

• Regularly inspect the cylinder for leaks, damaged seals, or excessive wear.
• Clean the cylinder and keep it free from dirt, debris, and moisture.
• Ensure proper lubrication of moving parts using recommended lubricants.
• Store the cylinder in a clean and dry environment when not in use.
• Perform routine pressure tests to check for any abnormalities.
• Replace worn-out or damaged components promptly with genuine Enerpac parts.
