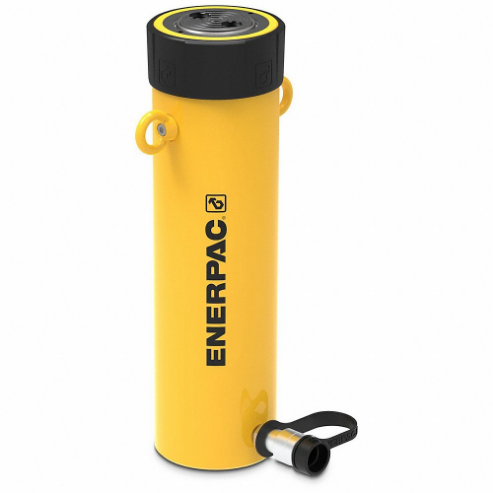

ENERPAC RC5013 General Purpose Hydraulic Cylinder, 10000 PSI, 13-1/4 Inch Stroke Length
Get it by Tuesday, Jun 17
€4,791.04 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Hydraulic Cylinder |
| Base Mounting Holes Bolt Circle | 3 3/4" |
| Base Mounting Holes Thread Depth | 3/4" |
| Body Material | Steel |
| Bolt Circle Dia. | 3 3/4" |
| Center Hole Dia. | 3 1/8" |
| Collapsed Height | 18.13" |
| Collar Thread Length | 2.19" |
| Cylinder Bore | 3 3/4" |
| Cylinder Type | Spring Return |
| Extended Height | 31.38" |
| Finish | Paint |
| Handle | Yes |
| Material | Steel |
| Max. Operating Pressure | 10000 psi |
| Oil Capacity | 146.34 cu. in. |
| Optional Tilt Saddle Addition To Collapsed Height | 0.59" |
| Optional Tilt Saddle Dia. | 2.81" |
| Outside Dia. | 5" |
| Plunger Dia. | 3.13" |
| Plunger Type | Solid |
| Saddle Diameter | 2 4/5" |
| Saddle Max. Tilt Angle | 5° |
| Saddle Protrusion From Plunger | 0.11" |
| Single Acting/double Acting | Single Acting |
| Stroke Length | 13 1/4" |
| Thread Size | 1/2"-13 |
| Weighing Capacity | 50 ton. |
| Base Bolt Circle Dia. | 3.75" |
| Center Hole Diameter | 3 1/8" |
| Effective Push Area | 11.04 sq. in. |
| Includes | Coupler, Dust Cap |
| Max. Pressure | 10000 psi |
| Max. Push Capacity | 50 ton. |
| Nominal Capacity | 50 ton. |
| Nominal Stroke Length | 13" |
| Oil Capacity Push | 146.34 cu. in. |
| Retracted Height | 18.13" |
| Ship weight (kg) | 46.35 |
| Ship height (cm) | 52.96 |
| Ship length (cm) | 59.69 |
| Ship width (cm) | 14.61 |
| HS code | 8412210075 |
| Country of Origin | CN |
Enerpac RC5013 general purpose hydraulic cylinder is a mechanical device that utilises the power of hydraulic fluid to generate force and movement. It consists of a cylindrical barrel, a piston and hydraulic seals. This cylinder has the ability to exert immense force and is useful in construction equipment, manufacturing machinery, agricultural machinery and material handling systems.
A. Troubleshooting hydraulic cylinder issues involves checking for leaks, inspecting seals and ensuring proper hydraulic fluid levels.
A. Hydraulic cylinders offer high force capabilities, precise control and the ability to operate in various environments.
A. Consider factors like load capacity, stroke length, operating pressure and cylinder dimensions.
| Product | Model | Base Mounting Holes Bolt Circle | Base Mounting Holes Thread Depth | Base Mounting Holes Thread Size | Base To Advance Port | Capacity | Collar Thread Length | Cylinder Bore | Cylinder Effective Area Advance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RC10010 | 5.5" | 1" | 3/4"-10 UN | 1.63" | 100 ton. | 1.75" | 5.13" | 20.63 sq. in. | €5,408.37 | |
 |
RC1512 | 1.88" | 0.5" | 3/8"-16 UN | 1" | 15 ton. | 1.19" | 2" | 3.14 sq. in. | €1,520.64 | |
 |
RC7513 | 4.5" | 0.63" | 5/8"-11 UNC | 1.19" | 75 ton. | 1.75" | 4.5" | 15.9 sq. in. | €5,110.38 | |
|
RC756 | 4.5" | 0.63" | 5/8"-11 UNC | 1.19" | 75 ton. | 1.75" | 4.5" | 15.9 sq. in. | €5,442.36 | |
 |
RC1006 | 5.5" | 1" | 3/4"-10 UN | 1.63" | 100 ton. | 1.75" | 5.13" | 20.63 sq. in. | €6,541.66 | |
 |
RC1012 | 1.56" | 0.5" | 5/16"-18 UN | 0.75" | 10 ton. | 1.06" | 1.69" | 2.24 sq. in. | €1,620.68 | |
 |
RC1014 | 1.56" | 0.5" | 5/16"-18 UN | 0.75" | 10 ton. | 1.06" | 1.69" | 2.24 sq. in. | €1,650.60 |
