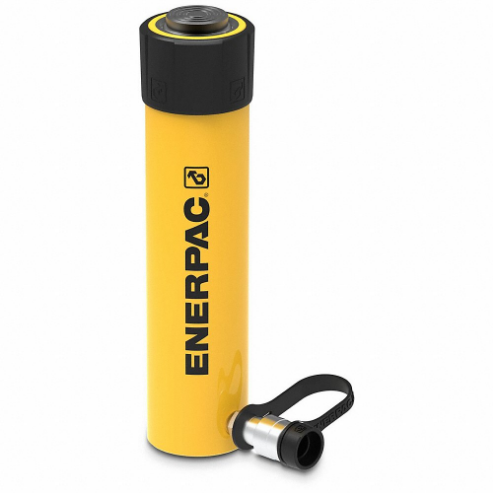

ENERPAC RC-2510 General Purpose Hydraulic Cylinder, Hydraulic Ram, 25 Ton, 10000 PSI, Steel Construction
Get it by Monday, Jun 16
€2,497.80 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Hydraulic Cylinder |
| Base Mounting Holes Bolt Circle | 2.31" |
| Base Mounting Holes Thread Depth | 3/4" |
| Base To Advance Port | 1" |
| Body Material | Steel |
| Bolt Circle Dia. | 2.31" |
| Collapsed Height | 14 3/4" |
| Collar Thread Length | 1.94" |
| Cylinder Bore | 2 14/25" |
| Cylinder Type | General Purpose |
| Extended Height | 25" |
| Finish | Paint |
| Handle | No |
| Material | Steel |
| Max. Operating Pressure | 10000 psi |
| Mounting Position | Vertical |
| Number Of Stages | 1 |
| Oil Capacity | 52.86 cu. in. |
| Optional Tilt Saddle Addition To Collapsed Height | 0.59" |
| Optional Tilt Saddle Dia. | 1.97" |
| Outside Dia. | 3.38" |
| Overall Height | 28" |
| Overall Length | 25" |
| Overall Width | 14" |
| Phase | 3 |
| Plunger Dia. | 2 1/4" |
| Plunger Internal Thread Size | 1 1/2"-16 |
| Plunger Thread Length | 1" |
| Plunger Type | Solid |
| Reservoir Capacity | 15 gal. |
| Saddle Diameter | 1.97" |
| Saddle Max. Tilt Angle | 5° |
| Saddle Protrusion From Plunger | 0.41" |
| Single Acting/double Acting | Single Acting |
| Stroke Length | 10 1/4" |
| Thread Size | 1/2"-13 |
| Voltage | 208-230/460V AC |
| Weighing Capacity | 25 ton. |
| Base Bolt Circle Dia. | 2.31" |
| Center Hole Diameter | 2 1/4" |
| Collar Thread Size | 3 5/16"-12 |
| Effective Push Area | 5.16 sq. in. |
| Includes | Coupler, Dust Cap |
| Max. Pressure | 10000 psi |
| Max. Push Capacity | 25 ton. |
| Nominal Capacity | 25 ton. |
| Nominal Stroke Length | 10" |
| Oil Capacity Push | 52.86 cu. in. |
| Plunger Thread Size | 1 1/2"-16 |
| Retracted Height | 14.75" |
| Ship weight (kg) | 13.95 |
| Ship height (cm) | 20.32 |
| Ship length (cm) | 46.99 |
| Ship width (cm) | 8.59 |
| HS code | 8431100090 |
| Country of Origin | CN |
Enerpac RC2510 general-purpose hydraulic cylinder is ideal for construction, manufacturing and agriculture applications, where heavy lifting, pushing and pulling tasks require a reliable and robust general-purpose hydraulic cylinder.
A. The piston separates the cylinder into two chambers and transmits the hydraulic force generated by the fluid to the rod.
A. Major factors include stroke length, load capacity, operating pressure and environmental conditions.
| Product | Model | Base Mounting Holes Bolt Circle | Base Mounting Holes Thread Depth | Base Mounting Holes Thread Size | Base To Advance Port | Capacity | Collar Thread Length | Cylinder Bore | Cylinder Effective Area Advance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RC10010 | 5.5" | 1" | 3/4"-10 UN | 1.63" | 100 ton. | 1.75" | 5.13" | 20.63 sq. in. | €5,408.37 | |
 |
RC1512 | 1.88" | 0.5" | 3/8"-16 UN | 1" | 15 ton. | 1.19" | 2" | 3.14 sq. in. | €1,520.64 | |
 |
RC7513 | 4.5" | 0.63" | 5/8"-11 UNC | 1.19" | 75 ton. | 1.75" | 4.5" | 15.9 sq. in. | €5,110.38 | |
|
RC756 | 4.5" | 0.63" | 5/8"-11 UNC | 1.19" | 75 ton. | 1.75" | 4.5" | 15.9 sq. in. | €5,442.36 | |
 |
RC1006 | 5.5" | 1" | 3/4"-10 UN | 1.63" | 100 ton. | 1.75" | 5.13" | 20.63 sq. in. | €6,541.66 | |
 |
RC1012 | 1.56" | 0.5" | 5/16"-18 UN | 0.75" | 10 ton. | 1.06" | 1.69" | 2.24 sq. in. | €1,620.68 | |
 |
RC1014 | 1.56" | 0.5" | 5/16"-18 UN | 0.75" | 10 ton. | 1.06" | 1.69" | 2.24 sq. in. | €1,650.60 |
