| Item | Hydraulic Cylinder |
| Base Mounting Holes Bolt Circle | 2.31" |
| Base Mounting Holes Thread Depth | 0.75" |
| Base Mounting Holes Thread Size | 1/2"-13 UN |
| Base to Advance Port | 1" |
| Capacity | 25 ton. |
| Collapsed Height | 5.5" |
| Collar Thread Length | 1.94" |
| Collar Thread Size | 3 5/16"-12 UN |
| Couplers | CR400 Coupler |
| Cylinder Bore | 2.56" |
| Cylinder Effective Area Advance | 5.16 sq. in. |
| Cylinder Return Type | Single-Acting, Spring Return |
| Extended Height | 6.5" |
| Finish | Painted |
| Material | Steel |
| Max. Cylinder Capacity Advance | 25.8 short ton. |
| Max. Operating Pressure | 10000 psi |
| Oil Capacity Advance | 5.16 cu. in. |
| Optional Tilt Saddle Addition To Collapsed Height | 0.59" |
| Optional Tilt Saddle Dia. | 1.97" |
| Outside Dia. | 3.38" |
| Plunger Dia. | 2.25" |
| Plunger Internal Thread Size | 1 1/2"-16 |
| Plunger Thread Length | 1" |
| Plunger Type | Solid |
| Saddle Diameter | 1.97" |
| Saddle Max. Tilt Angle | 5 Deg. |
| Saddle Protrusion from Plunger | 0.41" |
| Stroke | 1" |
| Ship weight (kg) | 6.01 |
| Ship height (cm) | 14.73 |
| Ship length (cm) | 19.81 |
| Ship width (cm) | 8.59 |
| HS code | 8412210075 |
| Country of Origin | CN |

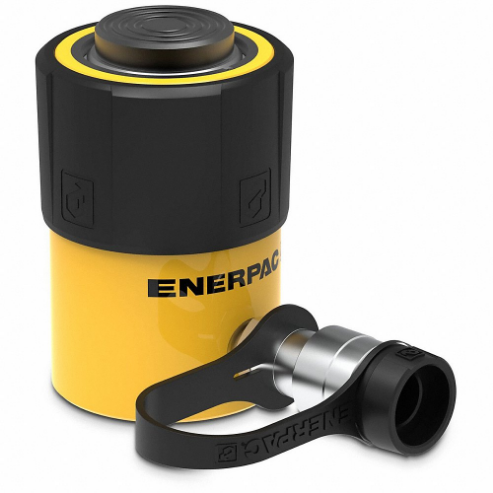

A. This Enerpac RC251 general purpose hydraulic cylinder is a single-acting cylinder Single-acting hydraulic cylinders apply force through one side of the piston, extending under hydraulic pressure and retracting either by the load or an internal spring. In contrast, double-acting hydraulic cylinders have two ports that enable the force to be applied in two directions, allowing both extension and retraction of the piston.
A. This hydraulic cylinder can lift a maximum load of 25 tons.
| Product | Model | Outside Dia. | Cylinder Effective Area Advance | Base Mounting Holes Bolt Circle | Base Mounting Holes Thread Size | Base to Advance Port | Capacity | Collar Thread Length | Cylinder Bore | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RC10010 | 7" | 20.63 sq. in. | 5.5" | 3/4"-10 UN | 1.63" | 100 ton. | 1.75" | 5.13" | €30,699.03 | |
 |
RC1512 | 2.75" | 3.14 sq. in. | 1.88" | 3/8"-16 UN | 1" | 15 ton. | 1.19" | 2" | €8,631.47 | |
 |
RC7513 | 5.75" | 15.9 sq. in. | 4.5" | 5/8"-11 UNC | 1.19" | 75 ton. | 1.75" | 4.5" | €29,007.57 | |
|
RC756 | 5.75" | 15.9 sq. in. | 4.5" | 5/8"-11 UNC | 1.19" | 75 ton. | 1.75" | 4.5" | €22,713.79 | |
 |
RC1006 | 7" | 20.63 sq. in. | 5.5" | 3/4"-10 UN | 1.63" | 100 ton. | 1.75" | 5.13" | €4,412.10 | |
 |
RC1012 | 2.25" | 2.24 sq. in. | 1.56" | 5/16"-18 UN | 0.75" | 10 ton. | 1.06" | 1.69" | €1,131.90 | |
|
RC1014 | 2.25" | 2.24 sq. in. | 1.56" | 5/16"-18 UN | 0.75" | 10 ton. | 1.06" | 1.69" | €1,166.20 |
