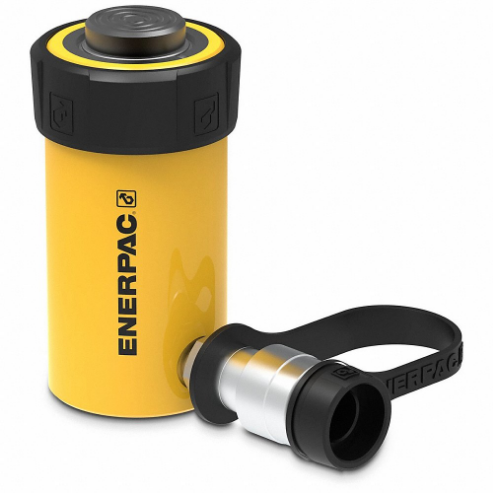

| Item | Hydraulic Cylinder |
| Base Mounting Holes Bolt Circle | 1 22/25" |
| Base Mounting Holes Thread Depth | 1/2" |
| Base To Advance Port | 3/4" |
| Body Material | Steel |
| Bolt Circle Dia. | 1 22/25" |
| Collapsed Height | 5 22/25" |
| Collar Thread Length | 1.19" |
| Cylinder Bore | 2" |
| Cylinder Type | General Purpose |
| Extended Height | 7 22/25" , 7.33" |
| Finish | Paint |
| Handle | No |
| Includes | Coupler, Dust Cap |
| Material | Steel |
| Max. Operating Pressure | 10000 psi |
| Nominal Stroke Length | 2" |
| Oil Capacity | 6.28 cu. in. |
| Optional Tilt Saddle Addition To Collapsed Height | 0.43" |
| Optional Tilt Saddle Dia. | 1.38" |
| Outside Dia. | 2 3/4" |
| Plunger Dia. | 1.63" |
| Plunger Thread Length | 1" |
| Plunger Type | Solid |
| Promotion Restriction | Not Eligible For Promotion |
| Saddle Diameter | 1 1/2" |
| Saddle Max. Tilt Angle | 5° |
| Single Acting/double Acting | Single Acting |
| Stroke Length | 2" |
| Thread Size | 3/8"-16 |
| Weighing Capacity | 15 ton. |
| Base Bolt Circle Dia. | 1.88" |
| Center Hole Diameter | 1 5/8" |
| Collar Thread Size | 2 3/4"-16 |
| Effective Push Area | 3.14 sq. in. |
| Max. Pressure | 10000 psi |
| Max. Push Capacity | 15 ton. |
| Nominal Capacity | 15 ton. |
| Oil Capacity Push | 6.28 cu. in. |
| Plunger Thread Size | 1"-8 |
| Retracted Height | 5.88" |
| Ship weight (kg) | 4.05 |
| Ship height (cm) | 22.35 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 6.99 |
| HS code | 8412210075 |
| Country of Origin | CN |
| Product | Model | Base Mounting Holes Bolt Circle | Base Mounting Holes Thread Depth | Base Mounting Holes Thread Size | Base To Advance Port | Capacity | Collar Thread Length | Cylinder Bore | Cylinder Effective Area Advance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RC10010 | 5.5" | 1" | 3/4"-10 UN | 1.63" | 100 ton. | 1.75" | 5.13" | 20.63 sq. in. | €5,408.37 | |
 |
RC1512 | 1.88" | 0.5" | 3/8"-16 UN | 1" | 15 ton. | 1.19" | 2" | 3.14 sq. in. | €1,520.64 | |
 |
RC7513 | 4.5" | 0.63" | 5/8"-11 UNC | 1.19" | 75 ton. | 1.75" | 4.5" | 15.9 sq. in. | €5,110.38 | |
|
RC756 | 4.5" | 0.63" | 5/8"-11 UNC | 1.19" | 75 ton. | 1.75" | 4.5" | 15.9 sq. in. | €5,442.36 | |
 |
RC1006 | 5.5" | 1" | 3/4"-10 UN | 1.63" | 100 ton. | 1.75" | 5.13" | 20.63 sq. in. | €6,541.66 | |
 |
RC1012 | 1.56" | 0.5" | 5/16"-18 UN | 0.75" | 10 ton. | 1.06" | 1.69" | 2.24 sq. in. | €1,620.68 | |
 |
RC1014 | 1.56" | 0.5" | 5/16"-18 UN | 0.75" | 10 ton. | 1.06" | 1.69" | 2.24 sq. in. | €1,650.60 |
