ENERPAC
ENERPAC RC-151 General Purpose Hydraulic Cylinder, 15 Ton, 1 Inch Stroke Length | AC2XLD 2NWH6

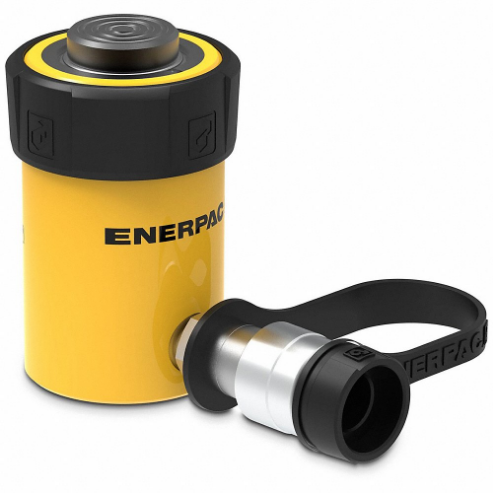

ENERPAC RC-151 General Purpose Hydraulic Cylinder, 15 Ton, 1 Inch Stroke Length

In Stock
Item: AC2XLD Model: RC-151Cross Ref: 2NWH6
Check Availability
See variants (40)

Get it by May 27, Monday

Product available for flat shipping. Flat shipping price of €9,00 on transactions of value €99,00 or more and aggregate weight below 10 pounds.

Delivery Options:

Int. Economy (6-10 days)
  • Int. Express (5-7 days) ¥3,750
  • Ex-Works Pickup Free
  • Ex-works Pickup
€988.88 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemHydraulic Cylinder
Base Mounting Holes Bolt Circle1.88"
Base Mounting Holes Thread Depth0.5"
Base Mounting Holes Thread Size3/8"-16 UN
Base to Advance Port0.75"
Capacity15 ton.
Collapsed Height4.88"
Collar Thread Length1.19"
Collar Thread Size2 3/4"-16 UN
CouplersCR400 Coupler
Cylinder Bore2"
Cylinder Effective Area Advance3.14 sq. in.
Cylinder Return TypeSingle-Acting, Spring Return
Extended Height5.88"
FinishPainted
MaterialSteel
Max. Cylinder Capacity Advance15.7 short ton.
Max. Operating Pressure10000 psi
Oil Capacity Advance3.14 cu. in.
Optional Tilt Saddle Addition To Collapsed Height0.43"
Optional Tilt Saddle Dia.1.38"
Outside Dia.2.75"
Plunger Dia.1.63"
Plunger Internal Thread Size1"-8
Plunger Thread Length1"
Plunger TypeSolid
Saddle Diameter1.5"
Saddle Max. Tilt Angle5 Deg.
Saddle Protrusion from Plunger0.38"
Stroke1"

Shipping Info:

Ship weight (kg) 3.26
Ship height (cm)15.24
Ship length (cm)11.43
Ship width (cm)11.68
HS code8412210075
Country of OriginCN

Product Variants

ProductModelOutside Dia.Cylinder Effective Area AdvanceBase Mounting Holes Bolt CircleBase Mounting Holes Thread SizeBase to Advance PortCapacityCollar Thread LengthCylinder BorePrice
ENERPAC RC10010 General Purpose Hydraulic Cylinder, 103.1 Ton, Capacity, 10.25 Inch Stroke Length | AA8KTP 18Y535 RC100107"20.63 sq. in.5.5"3/4"-10 UN1.63"100 ton.1.75"5.13"€9,652.85
ENERPAC RC1512 General Purpose Hydraulic Cylinder15.7 Ton, Capacity, 12.00 Inch Stroke Length | AA8KTQ 18Y536 RC15122.75"3.14 sq. in.1.88"3/8"-16 UN1"15 ton.1.19"2"€3,100.60
ENERPAC RC7513 General Purpose Hydraulic Cylinder79.5 Ton, Capacity, 13.13 Inch Stroke Length | AA8KTR 18Y537 RC75135.75"15.9 sq. in.4.5"5/8"-11 UNC1.19"75 ton.1.75"4.5"€8,564.68
ENERPAC RC756 General Purpose Hydraulic Cylinder79.5 Ton, Capacity, 6.13 Inch Stroke Length | AA8KTT 18Y538 RC7565.75"15.9 sq. in.4.5"5/8"-11 UNC1.19"75 ton.1.75"4.5"€6,192.24
ENERPAC RC-1006 General Purpose Hydraulic Cylinder, 103.1 Ton, Capacity | AC2XLA 2NWH3 RC10067"20.63 sq. in.5.5"3/4"-10 UN1.63"100 ton.1.75"5.13"€6,426.11
ENERPAC RC-1012 General Purpose Hydraulic Cylinder, 10000 PSI Max Pressure, 10 Ton, Capacity | AC2XLB 2NWH4 RC10122.25"2.24 sq. in.1.56"5/16"-18 UN0.75"10 ton.1.06"1.69"€1,556.26
ENERPAC RC-1014 General Purpose Hydraulic Cylinder, 14 Inch Stroke Length, Single Acting, Alloy Steel | AC2XLC 2NWH5 RC10142.25"2.24 sq. in.1.56"5/16"-18 UN0.75"10 ton.1.06"1.69"€1,637.37
