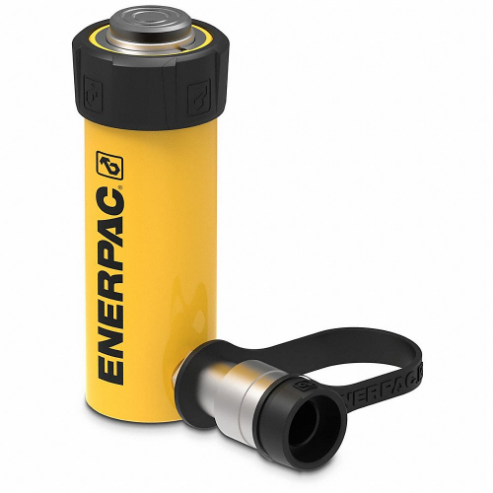

Enerpac RC-104 hydraulic cylinder is used to lift & lower heavy loads and provide pull & push forces with minimal effort using a hydraulic pump. This single-acting, hollow plunger hydraulic cylinder offers unidirectional stroke / force in offshore, engineering, marine, aerospace, oil & gas, agricultural, mining, food & production applications.
Features:
- Enerpac RC-104 has a bearing system with composite wear bands for enhanced sideload resistance.
- This Enerpac unit comes with trio hybrid pre-tensioned spring system for quick retraction.
- It is equipped with high-grade polyethylene seals for reduced wearing.
- This hydraulic cylinder comes with a plunger wiper for reduced contamination and extended cylinder life.
- It has a pre-tensioned spring for retracted speed improvement.
- This single-acting hydraulic cylinder features baked enamel finish for corrosion resistance.
Standards and Approvals:
Frequently Asked Questions:
Q. Which type of speed reducer is used in Enerpac RC-104 single-acting hydraulic cylinder?
A. An indirect drive is used to reduce the speed of Enerpac RC-104 single-acting hydraulic cylinder.
Q. How to bleed air from Enerpac hydraulic cylinders?
A.
- Attach the cylinder & pump with an appropriate hose assembly.
- Place the pump at a higher level than the cylinder, if possible.
- Vent the pump reservoir and advance & retract the cylinder with little or no pressure.
- If the plunger operates smoothly, the air has bled out of the system. If the cylinder retracts in a jerky, spongy or pulsating manner, continue cycling the pump & cylinder stem till the operation becomes smooth.
Q. What is the maximum load capacity of this Enerpac RC-104 hydraulic cylinder?
A. 11.2 tons.
