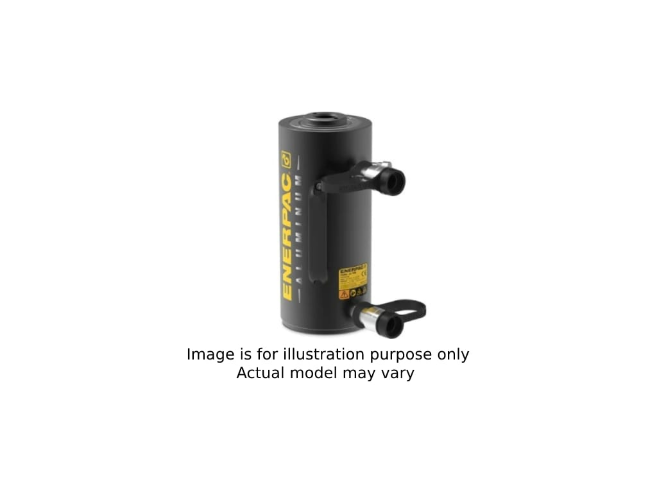

ENERPAC RARH302 Cylinder, 30 Ton, 2 Inch, Double Acting, Hollow, Aluminum
Get it by Monday, Jun 16
€3,326.40 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Hydraulic Cylinder |
| Capacity Class (tonnage) | 30 |
| Center Hole Diameter Y (in) | 1.34 |
| Center Hole Diameter Y (mm) | 34 |
| Collapsed Height A (in) | 8.22 |
| Collapsed Height A (mm) | 209 |
| Coupler | 700 |
| Coupler | CR400 Coupler |
| Cylinder Effective Area Advance (cm2) | 51,2 |
| Cylinder Effective Area Advance (in2) | 7.94 |
| Cylinder Effective Area Retract (cm2) | 26,7 |
| Cylinder Effective Area Retract (in2) | 4.14 |
| Extended Height B (in) | 10.19 |
| Extended Height B (mm) | 259 |
| Material | Aluminum |
| Maximum Cylinder Capacity Advance (kn) | 359 |
| Maximum Cylinder Capacity Advance (short Tons) | 40.3 |
| Maximum Cylinder Capacity Retract (kn) | 187 |
| Maximum Cylinder Capacity Retract (short Tons) | 21 |
| Maximum Operating Pressure (psi) | 10,150 |
| Oil Capacity Advance (cm3) | 256 |
| Oil Capacity Advance (in3) | 15.63 |
| Oil Capacity Retract (cm3) | 134 |
| Oil Capacity Retract (in3) | 8.14 |
| Plunger Type | Hollow |
| Return Type | Double-Acting, Hydraulic Return |
| Stroke (in) | 1.97 |
| Stroke (mm) | 50 |
| Surface Treatment | Anodized |
| Ship weight (kg) | 10.13 |
| Ship height (cm) | 20.88 |
| Ship length (cm) | 20.88 |
| Ship width (cm) | 13.49 |
| Country of Origin | US |
