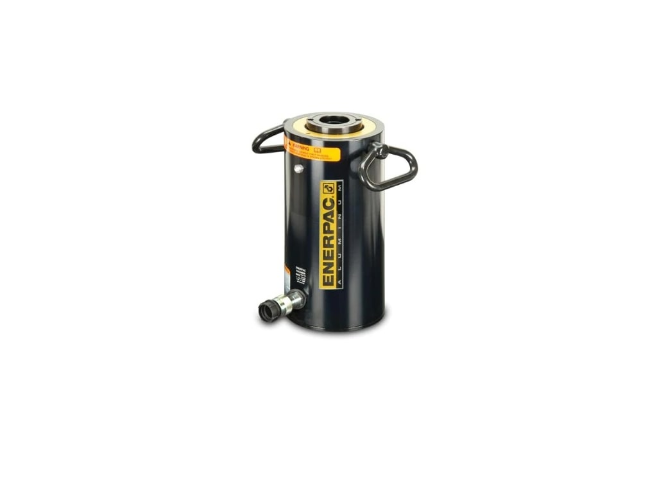

ENERPAC RACH6010 Cylinder, 60 Ton, 10 Inch, Hollow, Aluminum
Get it by Monday, Jun 16
€7,952.67 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Hydraulic Cylinder |
| Capacity Class (tonnage) | 60 |
| Center Hole Diameter Y (in) | 2.13 |
| Center Hole Diameter Y (mm) | 54 |
| Collapsed Height A (in) | 20.09 |
| Collapsed Height A (mm) | 510 |
| Coupler | CR400 Coupler |
| Coupler | 700 |
| Cylinder Effective Area Advance (cm2) | 84,7 |
| Cylinder Effective Area Advance (in2) | 13.13 |
| Extended Height B (in) | 29.93 |
| Extended Height B (mm) | 760 |
| Material | Aluminum |
| Maximum Cylinder Capacity Advance (kn) | 596 |
| Maximum Cylinder Capacity Advance (short Tons) | 65.6 |
| Maximum Operating Pressure (psi) | 10,000 |
| Oil Capacity Advance (cm3) | 2117 |
| Oil Capacity Advance (in3) | 129.21 |
| Plunger Type | Hollow |
| Return Type | Single-Acting, Spring Return |
| Stroke (in) | 9.84 |
| Stroke (mm) | 250 |
| Surface Treatment | Anodized |
| Ship weight (kg) | 45.45 |
| Ship height (cm) | 51.03 |
| Ship length (cm) | 51.03 |
| Ship width (cm) | 18.01 |
| Country of Origin | US |
| Model | Base Mounting Holes Thread Size | Base To Advance Port | Capacity | Cylinder Bore | Cylinder Effective Area Advance | Max. Cylinder Capacity Advance | Oil Capacity Advance | Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RACH1006 | M10 | 2.41" | 100 ton. | 7.28" | 25.51 sq. in. | 127.5 short ton. | 150.64 cu. in. | 9.84" | €11,350.35 | |
| RACH202 | M6 | 1.14" | 20 ton. | 2.95" | 5.07 sq. in. | 25.4 short ton. | 9.98 cu. in. | 3.93" | €2,646.27 | |
| RACH206 | M6 | 1.14" | 20 ton. | 2.95" | 5.07 sq. in. | 25.4 short ton. | 29.94 cu. in. | 3.93" | €3,069.99 | |
| RACH302 | M6 | 1.14" | 30 ton. | 3.74" | 7.92 sq. in. | 39.6 short ton. | 15.59 cu. in. | 5.12" | €2,965.05 | |
| RACH306 | M6 | 1.14" | 30 ton. | 3.74" | 7.92 sq. in. | 39.6 short ton. | 46.77 cu. in. | 5.12" | €3,852.09 | |
| RACH604 | M6 | 2.41" | 60 ton. | 5.12" | 13.13 sq. in. | 65.6 short ton. | 51.69 cu. in. | 7.09" | €5,315.31 | |
| RACH606 | M6 | 2.41" | 60 ton. | 5.12" | 13.13 sq. in. | 65.6 short ton. | 77.53 cu. in. | 7.09" | €6,255.81 |
