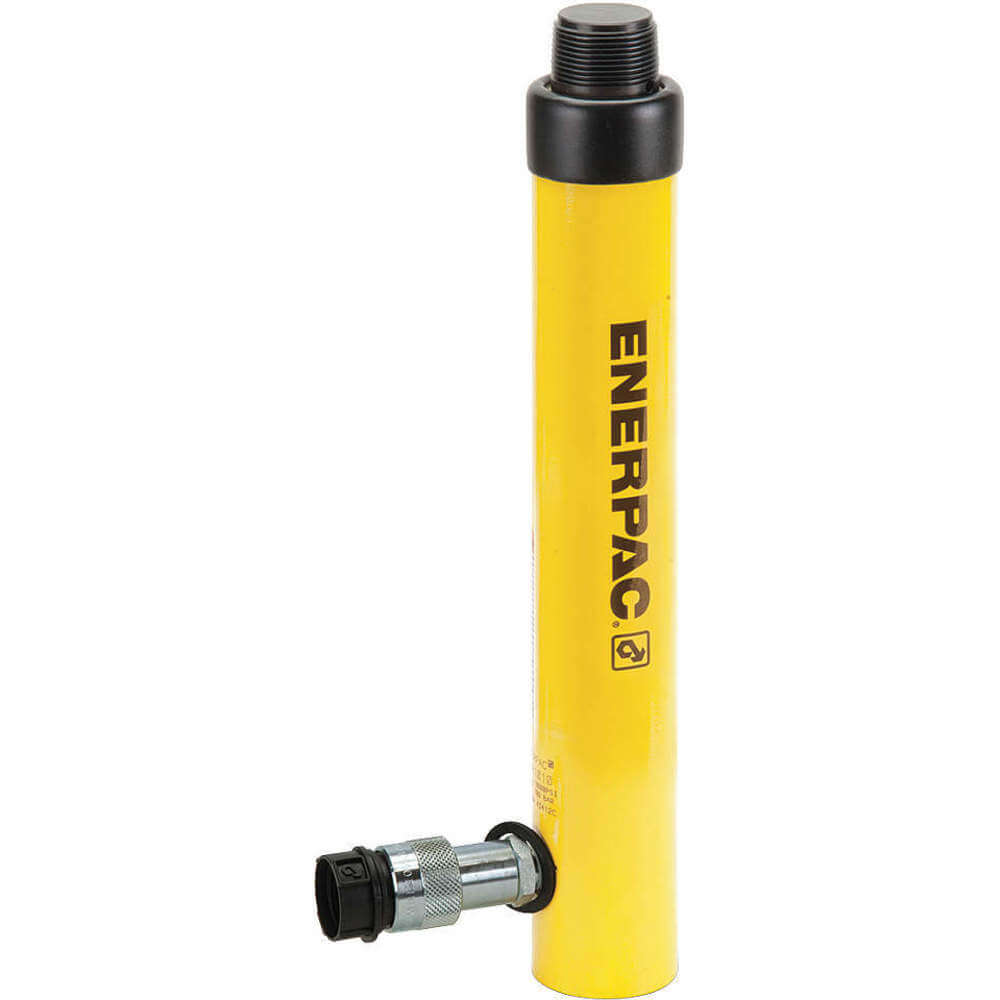

| Item | Hydraulic Cylinder |
| Body Material | Aluminum |
| Bolt Circle Dia. | 6.3" |
| Center Hole Dia. | 1 1/4" |
| Cylinder Type | General Purpose |
| Effective Area | 2.23 sq. in. |
| Extended Height | 26" |
| Handle | No |
| Material | Aluminum |
| Max. Operating Pressure | 10000 psi |
| Max. Pressure | 10,000 psi |
| Oil Capacity | 22.61 cu. in. |
| Outside Dia. | 2.25" |
| Plunger Dia. | 1.25" |
| Plunger Thread Size | 1 1/4"-12 |
| Retracted Height | 15.88" |
| Single Acting/Double Acting | Single Acting |
| Stroke | 10 1/8" |
| Stroke Length | 10-1/8" |
| Weight Capacity | 10 ton. |
| Ship weight (kg) | 6.57 |
| Ship height (cm) | 40.89 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 10.16 |
| HS code | 8425420000 |
| Product | Model | Bolt Circle Dia. | Oil Capacity | Plunger Thread Size | Stroke | Price | |
|---|---|---|---|---|---|---|---|
|
RA106 | 1.25" | 13.67 cu. in. | 1/2"-11 | 6" | €1,504.41 |
