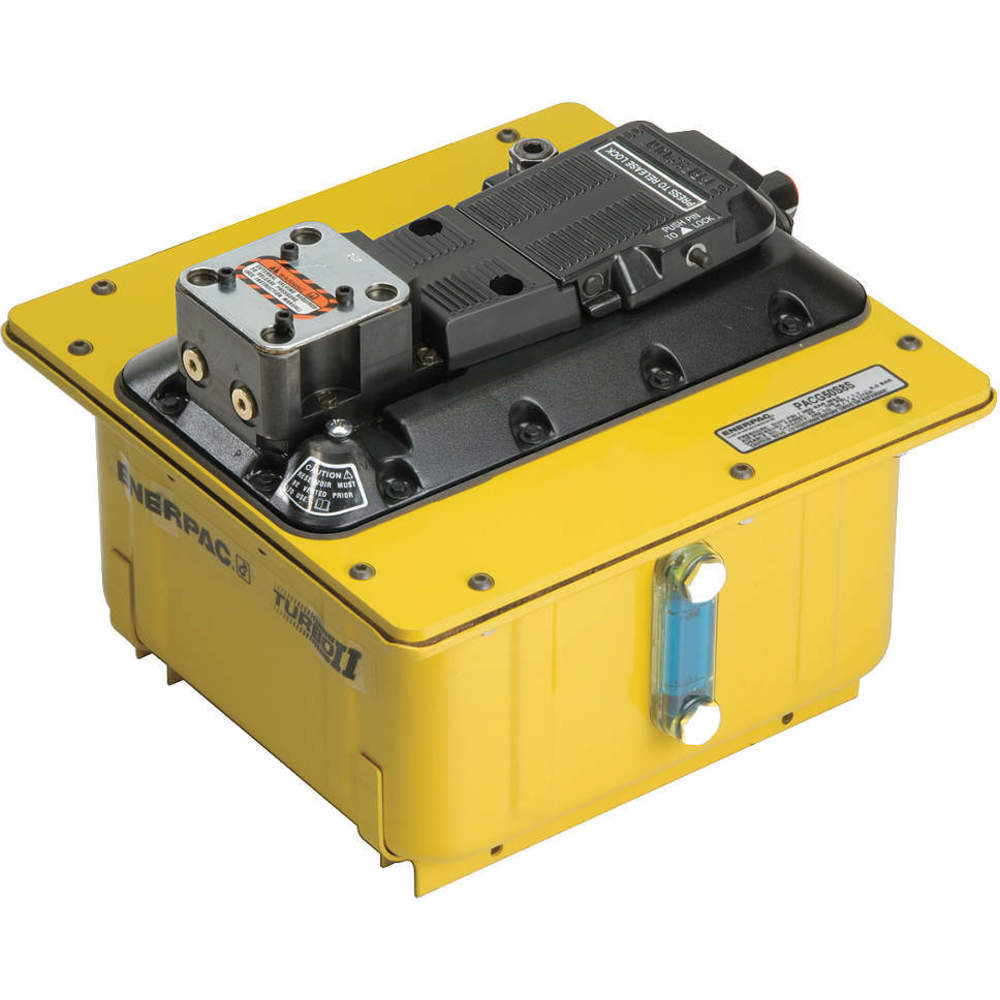

ENERPAC PASG50S8S Air Hydraulic Pump, Mount for Single DO3 Valve, 120 Inch Cu./min Oil Flow, 100 PSI
Get it by Friday, Jun 13
€1,380.06 /unit
Add To Cart
Request a Quote
Payment
Get it by Friday, Jun 13
Payment
| Item | Hydraulic Pump |
| Actuation Type | Pendant |
| Air Consumption | 12 SCFM |
| Air Pressure | 50 psi to 125 psi |
| Capacity | 1250 psi to 5000 psi |
| Features | Ergonomic Design, Pedal Lock Function, Pressure Relief Valve |
| Includes | D03 Valve Manifold |
| Max. Operating Pressure | 5000 psi |
| Oil Capacity | 462 cu. in. |
| Power Source | Air |
| Reservoir Capacity | 2 gal. |
| Sound Level | 75 dBA |
| Treadle | Two Position |
| Treadle Design | Two Position |
| Type | Air Powered |
| Air Intake Connection Size | 1/4" |
| Air Intake Connection Type | FNPT |
| Displacement @ 5000 Psi | 180 cu. in./min. |
| Max. Air Consumption | 12 SCFM |
| Max. Air Intake Pressure | 125 psi |
| Max. Flow Rate | 120 cu. in./min. |
| Max. Sound Level | 75 dBA |
| Overall Height | 8" |
| Overall Length | 10" |
| Overall Width | 12 2/5" |
| Ship weight (kg) | 20.16 |
| Ship height (cm) | 31.75 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 33.02 |
| HS code | 8413500080 |
| Country of Origin | US |
| Product | Model | Hydraulic To Air Ratio | Max. Flow At Rated Pressure | Output Flow Rate @ 0 Psi | Price | |
|---|---|---|---|---|---|---|
 |
PASG3002SB | 45:01:00 | 180 cu. in./min. | 180 cu. in./min. | €1,211.76 | |
 |
PASG30S8S | 45:01:00 | 180 cu. in./min. | 180 cu. in./min. | €1,380.06 | |
 |
PASG5002SB | 45:01:00 | 120 cu. in./min. | 120 cu. in./min. | €1,211.76 |
