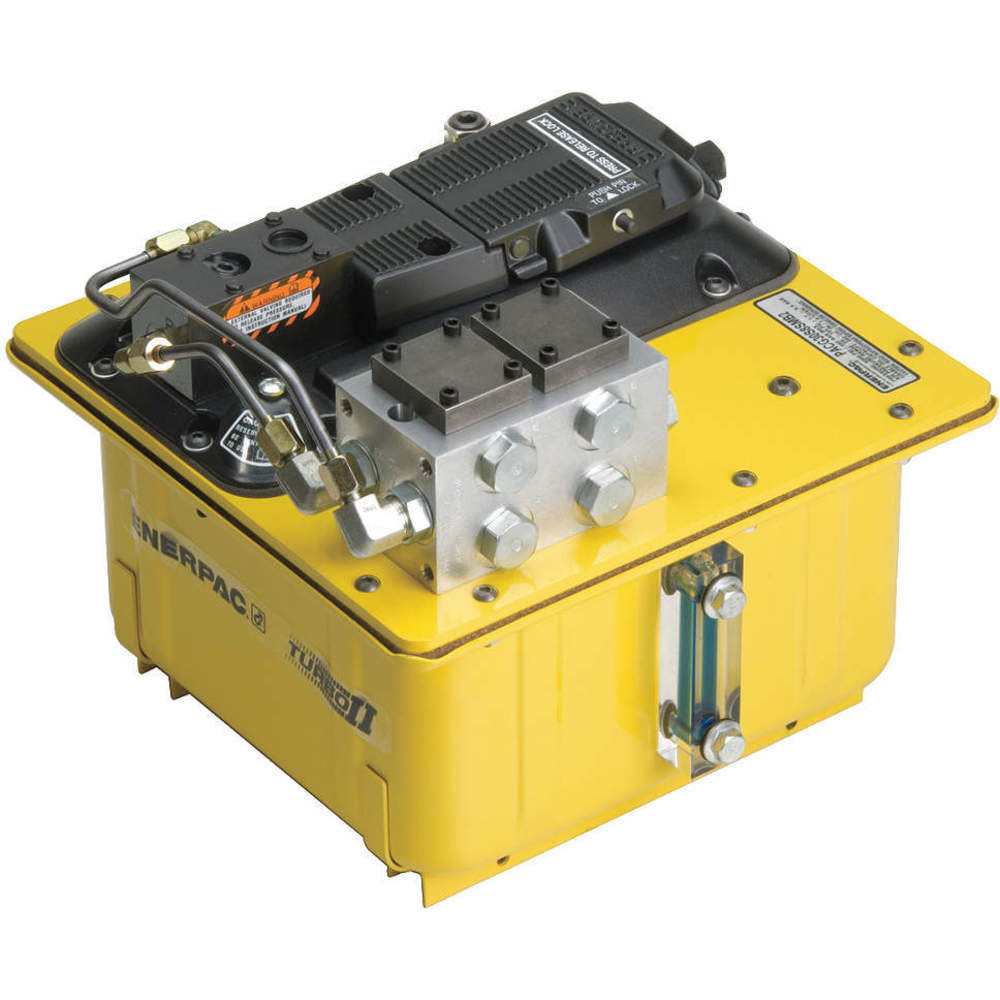

ENERPAC PACG50S8SMB2 Air Hydraulic Pump, 120 Inch Cu. Capacity/min Oil Flow at 100 psi
Get it by Tuesday, Jun 17
€2,445.30 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Hydraulic Pump |
| Actuation Type | Pendant |
| Air Consumption | 12 SCFM |
| Air Pressure | 50 psi to 125 psi |
| Capacity | 1250 psi to 5000 psi |
| Features | Ergonomic Design, Pedal Lock Function, Pressure Relief Valve |
| Includes | 2 Station Manifold |
| Max. Operating Pressure | 5000 psi |
| Oil Capacity | 462 cu. in. |
| Overall Width | 12" |
| Power Source | Air |
| Sound Level | 75 dBA |
| Treadle | Two Position |
| Treadle Design | Two Position |
| Type | Air Powered |
| Air Intake Connection Size | 1/4" |
| Air Intake Connection Type | FNPT |
| Displacement @ 5000 Psi | 180 cu. in./min. |
| Max. Air Consumption | 12 SCFM |
| Max. Air Intake Pressure | 125 psi |
| Max. Flow Rate | 180 cu. in./min. |
| Max. Sound Level | 75 dBA |
| Overall Height | 13 2/5" |
| Overall Length | 12.5" |
| Reservoir Capacity | 2 gal. |
| Ship weight (kg) | 21.33 |
| Ship height (cm) | 30.73 |
| Ship length (cm) | 41.4 |
| Ship width (cm) | 33.53 |
| HS code | 8413500080 |
| Country of Origin | US |
| Product | Model | Hydraulic To Air Ratio | Max. Flow At Rated Pressure | Output Flow Rate @ 0 Psi | Valve Model | Price | |
|---|---|---|---|---|---|---|---|
 |
PACG3002SB | 45:01:00 | 180 cu. in./min. | 180 cu. in./min. | Remote mount | €1,260.27 | |
 |
PACG30S8S | 45:01:00 | 180 cu. in./min. | 180 cu. in./min. | Remote mount | €1,467.18 | |
 |
PACG30S8SMB2 | 45:01:00 | 180 cu. in./min. | 180 cu. in./min. | Pump mount, Two D03 Valves | €2,445.30 | |
 |
PACG5002SB | 60:01:00 | 120 cu. in./min. | 120 cu. in./min. | Remote mount | €1,260.27 | |
 |
PACG50S8S | 60:01:00 | 120 cu. in./min. | 120 cu. in./min. | Remote mount | €1,467.18 |
