| Item | Hydraulic Pump |
| Actuation Type | Foot, Hand |
| Air Consumption | 9 SCFM |
| Air Pressure | 60 psi to 120 psi |
| Control Valve Function | Advance, Hold, Retract |
| Cylinder Compatibility | Single Acting |
| Features | Ergonomic Design |
| Includes | Swivel Coupling On Air Intake Port |
| Max. Operating Pressure | 10000 psi |
| Oil Capacity | 36 cu. in. |
| Overall Length | 14.7" |
| Overall Width | 8.3" |
| Power Source | Air |
| Sound Level | 85 dBA |
| Treadle | Three Position |
| Treadle Design | Three Position |
| Type | Air Powered |
| Valve Operation | Manual |
| Air Intake Connection Size | 1/4" |
| Air Intake Connection Type | FNPT |
| Displacement @ 10,000 Psi | 8 cu. in./min. |
| Displacement @ No Load | 40 cu. in./min. |
| Max. Air Consumption | 9 SCFM |
| Max. Air Intake Pressure | 120 psi |
| Max. Flow Rate | 8 cu. in./min. |
| Max. Sound Level | 85 dBA |
| Media Intake Connection Size | 3/8" |
| Overall Height | 5 3/5" |
| Reservoir Capacity | 36 cu. in. |
| Ship weight (kg) | 5.13 |
| Ship height (cm) | 16 |
| Ship length (cm) | 42.16 |
| Ship width (cm) | 17.27 |
| HS code | 8414200000 |
| Country of Origin | US |

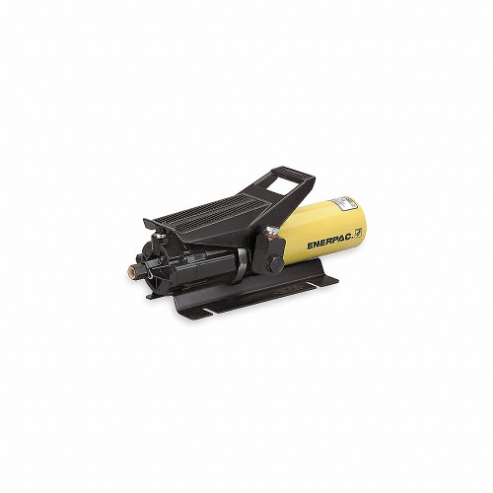

A. Enerpac PA-133 air hydraulic pump is suitable for both lifting and holding objects in raised positions.
A. The rating refers to the pressure a pump can handle without breaking down. While making a purchase, ensure that the pressure rating of your hydraulic pump must be below the pressure of the system you will work with.
A. One-stage pumps have only one pressure and one flow rate. They attach to a crankshaft or a commercial engine. Two-stage pumps are mounted to engines, producing a lot of fluid and accelerating the movement of the cylinder in and out.
| Product | Model | Air Consumption | Dimension A | Dimension B | Dimension C | Dimension D | Dimension E | Dimension H | Dimension M | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PA1150 | 9 SCFM | - | - | - | - | - | - | - | €2,277.00 | |
 |
ZA4208MX | 20 to 100 SCFM | 11.6" | 5.6" | 11" | 8.1" | 15.4" | - | - | €6,696.36 | |
 |
PATG-1102N | 12 SCFM | 12.33" | 6.49" | 8.29" | 9.04" | 4" | 5.15" | 13.62" | €1,447.96 | |
 |
XA11 | 13058 SCFM | - | - | - | - | - | - | - | €1,388.97 | |
 |
PARG1102N | - | 12.33" | 6.49" | 7.88" | 9.04" | 4" | 5.15" | - | €1,845.36 | |
 |
PATG-1105N | 12 SCFM | 15.6" | 7.92" | 8.22" | 9.04" | 4" | 5.08" | 17.2" | €1,714.51 |
