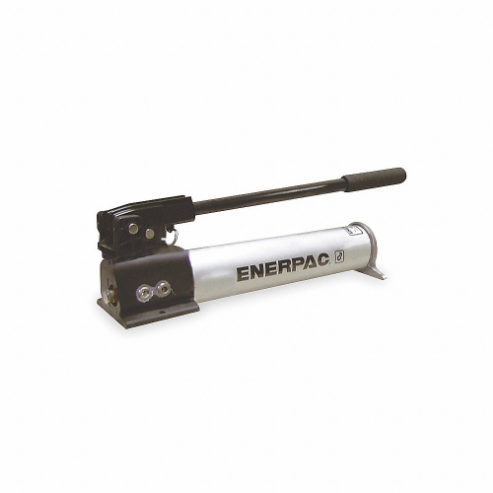

ENERPAC P392ALSS Hydraulic Hand Pump 10000 Psi 3/8 Npt
Get it by Monday, Jun 16
€1,025.64 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Hydraulic Hand Pump |
| Cylinder Compatibility | Single Acting |
| Handle Material | Fiberglass |
| Housing Material | Anodized Aluminum |
| Includes | Oil |
| Max. Handle Effort | 93 lbs. |
| Max. Operating Pressure | 10000 psi |
| Number Of Stages | 2 |
| Oil Included | Yes |
| Piston Stroke | 1" |
| Power Source | Manual |
| Pressure Rating 1st Stage | 200 psi |
| Pressure Rating 2nd Stage | 10000 psi |
| Pump Material | Anodized Aluminum |
| Reservoir Material | Anodized Aluminum |
| Speed Type | Two Speed |
| Type | Manual |
| Valve Operation | Manual |
| Connection Size | 3/8" |
| Connection Type | NPT |
| Displacement Per Stroke 1st Stage | 0.687 cu. in. |
| Displacement Per Stroke 2nd Stage | 0.151 cu. in. |
| Max. Flow Rate | 0.151 cu. in./min. |
| Max. Pressure 1st Stage | 200 psi |
| Max. Pressure 2nd Stage | 10000 psi |
| Overall Height | 7" |
| Overall Length | 21" |
| Overall Width | 4 4/5" |
| Reservoir Capacity | 55 cu. in. |
| Ship weight (kg) | 4.77 |
| Ship height (cm) | 21.34 |
| Ship length (cm) | 64.77 |
| Ship width (cm) | 17.78 |
| HS code | 8413200000 |
| Country of Origin | US |
| Product | Model | Cylinder Compatibility | Dimension A | Dimension B | Dimension C | Dimension D | Dimension E | Dimension F | Dimension G | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
P141 | Single Acting | 7.31" | 13.25" | 1.13" | 3.37" | 1.13" | - | 1/4"-18 NPTF | €938.40 | |
 |
P18 | Single Acting | 8.7" | 12.44" | 1.18" | 1.38" | 1.48" | - | - | €810.81 | |
 |
P802 | Single Acting | 13.3" | 21.75" | 1.78" | 5.25" | 1.39" | - | 3/8"-18 NPTF | €1,793.32 | |
 |
P202 | Single Acting | 13.56" | 20.06" | 1.44" | 3.37" | 1.13" | - | 1/4"-18 NPTF | €641.52 | |
 |
P391 | Single Acting | 13.56" | 21" | 1.44" | 3.93" | 1.31" | - | 3/8"-18 NPTF | €1,139.07 | |
 |
P464 | Double Acting | 8.25" | 12.13" | 6.42" | 12.63" | 7.68" | - | - | €5,275.74 | |
 |
P50 | Single Acting | 6" | 6.82" | 6" | 9.43" | - | - | - | €1,272.15 |
