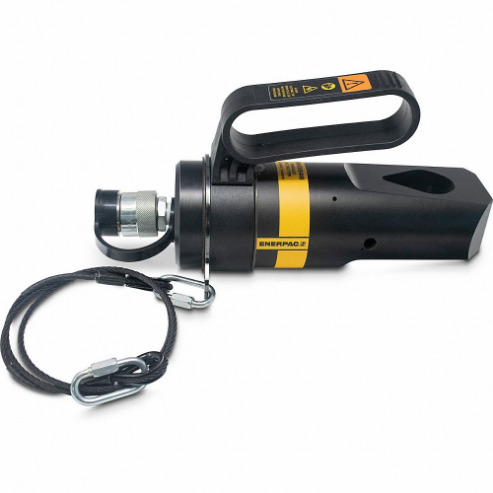

ENERPAC NSH5065 Nut Splitter, Hydraulic, 36 Ton
Get it by Tuesday, Jun 17
€6,008.31 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Nut Splitter |
| Overall Height | 8.3" |
| Overall Length | 14 4/5" |
| Overall Width | 7.3" |
| Single Acting/double Acting | Single Acting |
| Bolt Range | 1 3/8" to 1 3/4" |
| Bolt Range (in) | 1 1/4 - 1 5/8 |
| Capacity (imperial Tons) | 36 |
| Cutter Head Return Type | Single-Acting, Spring Return |
| Cutting Tip Service Kit Model Number | NSH5065CTK |
| Dimension A (in) | 14.8 |
| Dimension B (in) | 12.7 |
| Dimension C (in) | 8.3 |
| Dimension D (in) | 7.3 |
| Dimension H Max (in) | 1.77 |
| Dimension N Min (in) | 0.90 |
| Dimension S Max (in) | 1.93 |
| Dimension T (in) | 2.05 |
| Dimension W Min (in) | 4.25 |
| Hex Size Range | 2" to 2 9/16" |
| Hexagon Nut Range (in) | 2.00 - 2.56 |
| Includes | CR400 Female Half Coupler, FSC1 Safety Lanyard, Set of Hexagon Keys, Steel Cable With Carabiners |
| Maximum Material Hardness | ASTM A194 Gr 2H |
| Maximum Operating Pressure (psi) | 10,000 |
| Nominal Capacity | 36 ton. |
| Oil Capacity | 14 cu. in. |
| Oil Capacity (in | 14.0 |
| Weight | 24 lbs. |
| Ship weight (kg) | 20.84 |
| Ship height (cm) | 21.08 |
| Ship length (cm) | 37.59 |
| Ship width (cm) | 18.54 |
| Country of Origin | UK |
