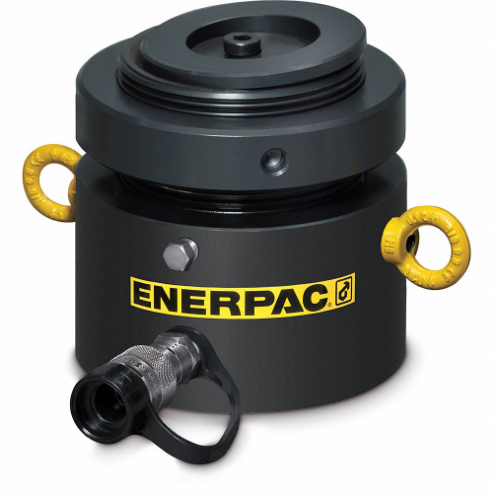

ENERPAC LPL1002 100 tons Single Acting Lock Nut Steel Hydraulic Cylinder, 2 Inch Stroke Length
Get it by Wednesday, Jun 18
€3,459.06 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Hydraulic Cylinder |
| Base To Advance Port | 0.83" |
| Body Material | Steel |
| Bolt Circle Dia. | 35.18" |
| Collapsed Height | 5.39" |
| Cylinder Bore | 5.31" |
| Cylinder Type | Lock Nut |
| Extended Height | 7 9/25" |
| Finish | Nitride |
| Handle | No |
| Includes | 0 |
| Lock Nut Height | 1.22" |
| Material | Steel |
| Max. Operating Pressure | 10150 psi |
| Oil Capacity | 22.19 cu. in. |
| Outside Dia. | 6.81" |
| Plunger Type | Solid |
| Promotion Restriction | Not Eligible For Promotion |
| Saddle Diameter | 4 24/25" |
| Saddle Max. Tilt Angle | 5° |
| Saddle Protrusion From Plunger | 0.31" |
| Sideload Resistance Of Max. Capacity | 10% |
| Single Acting/double Acting | Single Acting |
| Stroke Length | 1.97" |
| Weighing Capacity | 100 ton. |
| Base Bolt Circle Dia. | 35.18" |
| Center Hole Dia. | 5 3/8" |
| Collar Thread Size | 1 7/8"-16 |
| Effective Push Area | 22.19 sq. in. |
| Max. Pressure | 10150 psi |
| Nominal Capacity | 100 ton. |
| Nominal Stroke Length | 2" |
| Oil Capacity Push | 43.7 cu. in. |
| Plunger Dia. | 5.31" |
| Plunger Thread Size | 1/4" |
| Retracted Height | 5.39" |
| Series | LPL Series |
| Ship weight (kg) | 24.84 |
| Ship height (cm) | 13.69 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 22.86 |
| Country of Origin | CN |
| Product | Model | Base To Advance Port | Capacity | Cylinder Bore | Cylinder Effective Area Advance | Lock Nut Height | Max. Cylinder Capacity Advance | Oil Capacity Advance | Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LPL1602 | 1.06" | 150 ton. | 6.69" | 35.18 sq. in. | 1.57" | 179 short ton. | 62.3 cu. in. | 8.66" | €4,827.24 | |
 |
LPL602 | 0.75" | 60 ton. | 4.13" | 13.42 sq. in. | 1.1" | 68 short ton. | 26.4 cu. in. | 5.51" | €2,541.33 | |
 |
LPL2002 | - | - | - | - | - | - | - | - | €5,904.36 | |
|
LPL2502 | - | - | - | - | - | - | - | - | €7,199.28 | |
|
LPL4002 | - | - | - | - | - | - | - | - | €11,927.52 | |
|
LPL5002 | - | - | - | - | - | - | - | - | €15,538.05 |
