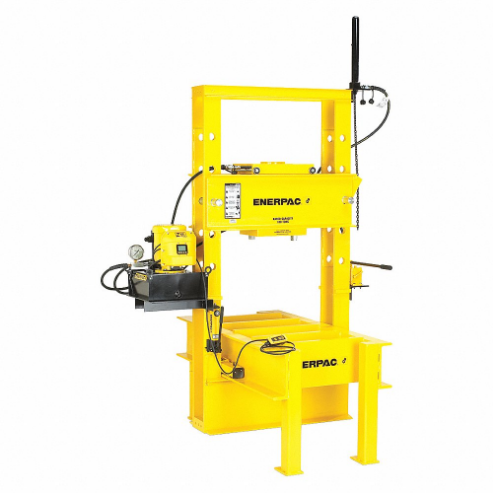

ENERPAC IPR20075 Hydraulic Shop Press 200 Ton
Due to weight and dimension restrictions, please request a shipping quote
€115,500.33 /unit
Request a Quote
Payment
Due to weight and dimension restrictions, please request a shipping quote
Payment
| Item | Hydraulic Press |
| Adjustable Bed | Yes |
| Application | Service Work |
| Base Length | 84 5/8" |
| Base Width | 86 1/2" |
| Cylinder | RR20013 |
| Cylinder Stroke | 13" |
| Cylinder Type | Double Acting |
| Dimension B | 38 3/4" |
| Dimension C | 36 3/4" |
| Dimension D | 10" |
| Dimension F | 64" |
| Dimension G | 9 3/25" |
| Dimension H | 84.63" |
| Dimension J | 86 1/2" |
| Dimension K | 8" |
| Dimension L | 15" |
| Dimension M | 36" |
| Dimension N | 125 24/25" |
| Distance Between Uprights | 48" |
| Features | Welded Frame |
| Frame Type | T Roll Frame |
| Hose Length | 10 ft. |
| Hose Size | 10 ft. |
| Max. Bed Width | 48" |
| Max. Operating Pressure | 10000 psi |
| Max. Ram-to-table Distance | 51" |
| Max. Vertical Daylight | 51" |
| Min. Vertical Daylight | 11" |
| Overall Length | 86 1/2" |
| Overall Width | 64" |
| Promotion Restriction | Not Eligible For Promotion |
| Pump Type | Electric |
| Stroke | 1 1/2" |
| Welded/seamless | Welded |
| Width Between Table Channels | 9 1/8" |
| Base Depth | 86 1/2" |
| Capacity | 200 ton. |
| Cylinder Model Number | RR20013 |
| Hydraulic Hose Length | 10 ft. |
| Includes | Cylinder, Gauge, Hoses, Pump |
| Operating Pressure | 10000 psi |
| Operation | Electric |
| Overall Depth | 86 1/2" |
| Overall Height | 126" |
| Press Bed Depth | 9 1/8" |
| Press Bed Width | 48" |
| Pump Model Number | ZE5420SGN |
| Ram Advance Speed - Maximum | 3.1"/min |
| Ram Press Speed - Maximum | 22.1 in./min. |
| Ram-to-table Distance - Maximum | 51" |
| Ram-to-table Distance - Minimum | 11" |
| Reservoir Capacity | 5 gal. |
| Ship weight (kg) | 4158 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 219.71 |
| Ship width (cm) | 162.56 |
| HS code | 8479899898 |
| Country of Origin | US |
