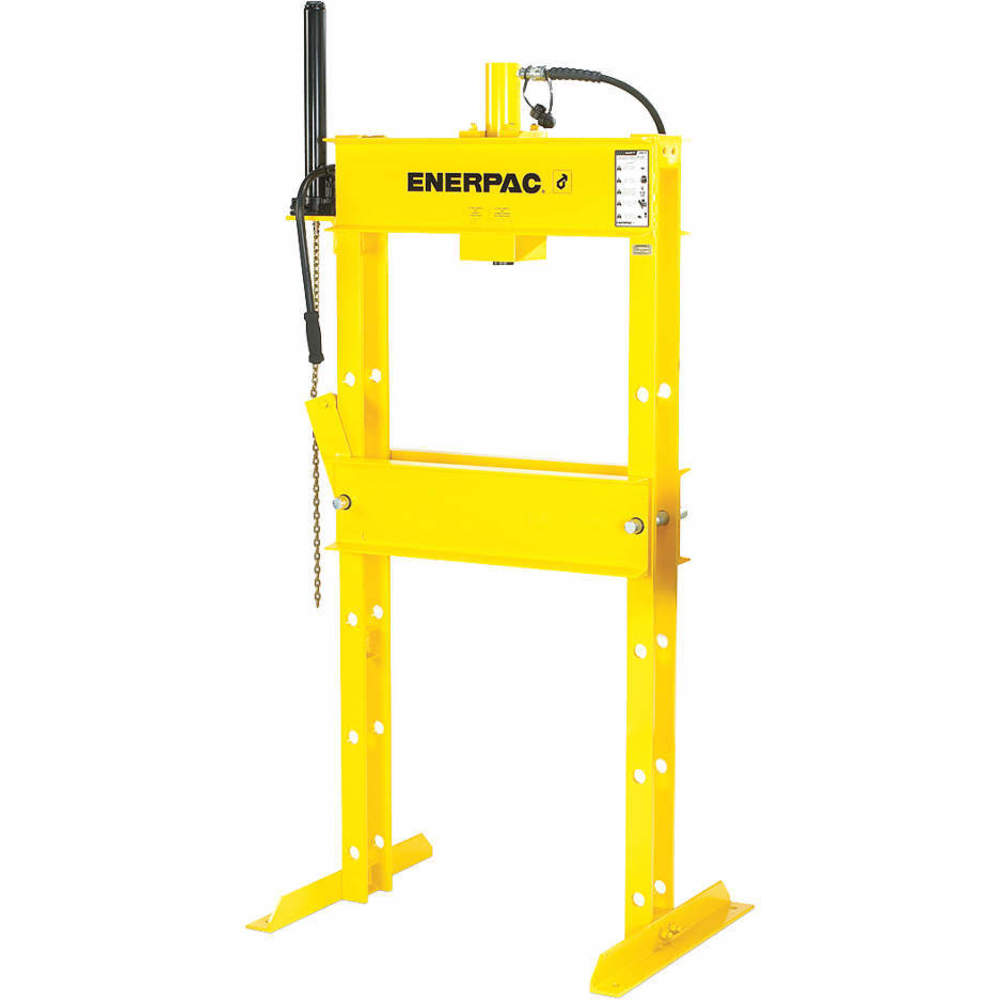

ENERPAC IPE5005 Hydraulic Press 50 Ton Electric Pump 82 Inch Height
Due to weight and dimension restrictions, please request a shipping quote
€16,256.79 /unit
Request a Quote
Payment
Due to weight and dimension restrictions, please request a shipping quote
Payment
| Item | Hydraulic Press |
| Adjustable Bed | Yes |
| Application | Service Work |
| Base Length | 44" |
| Base Width | 36" |
| Cylinder | Mfr. No. RC-506 |
| Cylinder Stroke | 6" |
| Cylinder Type | Single Acting |
| Dimension B | 18 19/25" |
| Dimension C | 54" |
| Dimension E | 28 3/4" |
| Dimension F | 42 3/4" |
| Dimension G | 5" |
| Dimension H | 8 3/4" |
| Dimension J | 36" |
| Dimension K | 7 1/4" |
| Dimension L | 14.38" |
| Dimension M | 30 3/4" |
| Dimension N | 76" |
| Features | Welded Frame |
| Frame Type | H Frame |
| Hose Length | 6 ft. |
| Max. Bed Width | 28 3/4" |
| Max. Operating Pressure | 10000 psi |
| Max. Ram-to-table Distance | 48 14/25" |
| Max. Vertical Daylight | 48 14/25" |
| Min. Dimension A | 7.06" |
| Mx. Dimension A | 48 14/25" |
| Overall Length | 36" |
| Power Source | Electric |
| Power Source Valve | Manual |
| Promotion Restriction | Not Eligible For Promotion |
| Pump Type | Electric |
| Stroke | 4" |
| Strokes To Extend Piston 1 In | 4 |
| Width Between Table Channels | 5" |
| Base Depth | 36" |
| Capacity | 50 ton. |
| Cylinder Model Number | RC506 |
| Distance Between Uprights | 28 3/4" |
| Horsepower | 1/2 hp |
| Hydraulic Hose Length | 6 ft. |
| Includes | Cylinder, Gauge, Hoses, Pump |
| Operating Pressure | 10000 psi |
| Operation | Electric |
| Overall Depth | 36" |
| Overall Height | 84 3/4" |
| Overall Width | 42 3/4" |
| Phase | Single |
| Press Bed Depth | 14 3/8" |
| Press Bed Width | 28 3/4" |
| Pump Model Number | PUJ1200B |
| Ram Advance Speed - Maximum | 2.9 in./sec. |
| Ram Press Speed - Maximum | 28.9 in./sec. |
| Ram-to-table Distance - Maximum | 48 1/2" |
| Ram-to-table Distance - Minimum | 7" |
| Reservoir Capacity | 0.5 gal. |
| Voltage | 115VAC |
| Ship weight (kg) | 431.42 |
| Ship height (cm) | 208.28 |
| Ship length (cm) | 111.76 |
| Ship width (cm) | 91.44 |
| HS code | 8462918090 |
| Country of Origin | US |
| Product | Model | Capacity | Cylinder Type | Dimension B | Dimension C | Dimension D | Dimension E | Dimension F | Dimension G | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
IPE1215 | 10 ton. | Single-Acting, Spring Return | - | 46.75" | 5" | 18.63" | 24.88" | - | €7,438.86 | |
 |
IPA1220 | 10 ton. | Single-Acting, Spring Return | - | 46.75" | 5" | 18.63" | 24.88" | - | €4,015.44 | RFQ
|
 |
IPA2520 | 25 ton. | Single-Acting, Spring Return | - | 57" | 11.88" | 29" | 40.5" | 4" | €11,309.76 | RFQ
|
 |
IPE10060 | 100 ton. | Double Acting, Hydraulic Return | 20" | 51" | 11.69" | 35" | 51" | 5.75" | €36,753.75 | |
|
IPE5060 | 50 ton. | Double Acting, Hydraulic Return | 18.76" | 54" | 10.38" | 28.75" | 42.75" | 5" | €26,700.30 | |
 |
IPH1240 | 10 ton. | Single-Acting, Spring Return | - | 46.75" | 5" | 18.63" | 24.88" | - | €3,433.32 | |
 |
IPH2531 | 25 ton. | Single-Acting, Spring Return | - | 57" | 11.88" | 29" | 40.5" | 4" | €11,113.74 |
