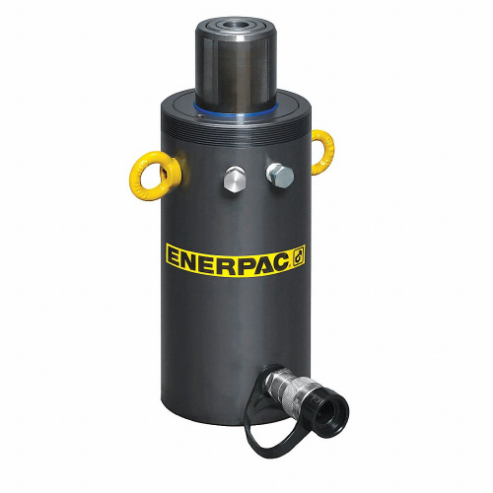

ENERPAC HCG5012 High Tonnage Hydraulic Cylinder, 50 Ton, Single-Acting
Get it by Monday, Jun 16
€3,434.31 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Hydraulic Cylinder |
| Base Mounting Thread Size | M12 |
| Body Material | Steel |
| Bore Dia. | 3.94" |
| Capacity Class (tonnage) | 50 |
| Collapsed Height A (in) | 17.56 |
| Collapsed Height A (mm) | 446 |
| Coupler | CR400 Coupler |
| Coupler | 700 |
| Cylinder Effective Area Advance (cm2) | 78,5 |
| Cylinder Effective Area Advance (in2) | 12.17 |
| Cylinder Type | High Cycle |
| Effective Push Area | 12.17 sq. in. |
| Extended Height | 29.4" |
| Extended Height B (in) | 29.37 |
| Extended Height B (mm) | 746 |
| Includes | (2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve |
| Material | Steel |
| Max. Pressure | 10150 psi |
| Maximum Cylinder Capacity Advance (kn) | 550 |
| Maximum Cylinder Capacity Advance (short Tons) | 62 |
| Maximum Operating Pressure (psi) | 10,150 |
| Nominal Capacity | 50 ton. |
| Nominal Stroke Length | 12" |
| Oil Capacity Advance (cm3) | 2356 |
| Oil Capacity Advance (in3) | 143.78 |
| Oil Capacity Push | 143.78 cu. in. |
| Outside Dia. | 5.12" |
| Plunger Dia. | 2 19/25" |
| Plunger Type | Solid |
| Retracted Height | 17.56" |
| Return Type | Single-Acting, Load Return |
| Sideload Resistance Of Maximum Capacity (percentage) | 7% |
| Single Acting/double Acting | Single Acting |
| Stroke (in) | 11.81 |
| Stroke (mm) | 300 |
| Stroke Length | 11 3/4" |
| Surface Treatment | Nitride |
| Weight | 80 lbs. |
| Ship weight (kg) | 35.82 |
| Ship height (cm) | 43.18 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 22.86 |
| Country of Origin | CN |
