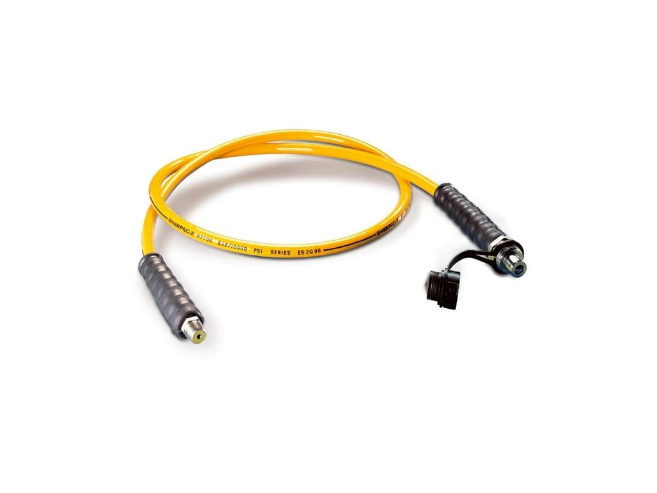

ENERPAC HC7210 Hose, 10 Ft. Size, 3/8 Inch NPTF, 0.25 Inch I.D.
Get it by Tuesday, Jun 17
€323.73 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Hydraulic Hose |
| Hose Color | Black |
| Hose Configuration | Coupled Assembly |
| Hose Cover Material | Polyurethane |
| Hose Reinforcement Material | Carbon Steel |
| Hose Tube Material | Thermoplastic |
| Includes | High Flow Male Coupler On One End |
| Material | Thermoplastic |
| Safety Factor | 41 |
| Capacity (cm3) | 96,51 |
| End One Assembly | 3/8" NPTF |
| End One Coupler | 3/8" NPTF |
| End Two Assembly | CH604 |
| End Two Coupler | CH604 |
| Hose Fitting A Size | 3/8" |
| Hose Fitting A Type | CH604 |
| Hose Fitting B Size | 3/8" |
| Hose Fitting B Type | NPTF |
| Hose Inside Dia. | 1/4" |
| Hose Length | 10 ft. |
| Hose Oil Capacity (cm3) | When using greater hose lengths, it is sometimes necessary to fill the pump reservoir after filling the hoses. To determine the hose oil capacity, use the following for 6,4 mm inside diameter hoses: Capacity (cm3) = 32,1699 x Length (m) |
| Hose Oil Capacity (in3) | When using long hose lengths, it is sometimes necessary to fill the pump reservoir after filling the hoses. To determine the hose oil capacity, use the following for .25" internal diameter hoses: Capacity (in3) = .5892 x Length (ft) |
| Hose Reinforcement Type | Braid |
| Internal Diameter (in) | 0.25 |
| Internal Diameter (mm) | 6,4 |
| Length (ft) | 700 |
| Length (m) | 3,0 |
| Max. Working Pressure @ 70 F | 10000 psi |
| Maximum Operating Pressure (psi) | 10,000 |
| Oil Capacity (in3) | 5.89 |
| Ship weight (kg) | 0.67 |
| Ship height (cm) | 2.03 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 5.08 |
| Country of Origin | DE |
