ENERPAC CDT18251 Cylinder Threaded 3900 Lbs .98 Inch Stroke | AE6TCN 5UWT5

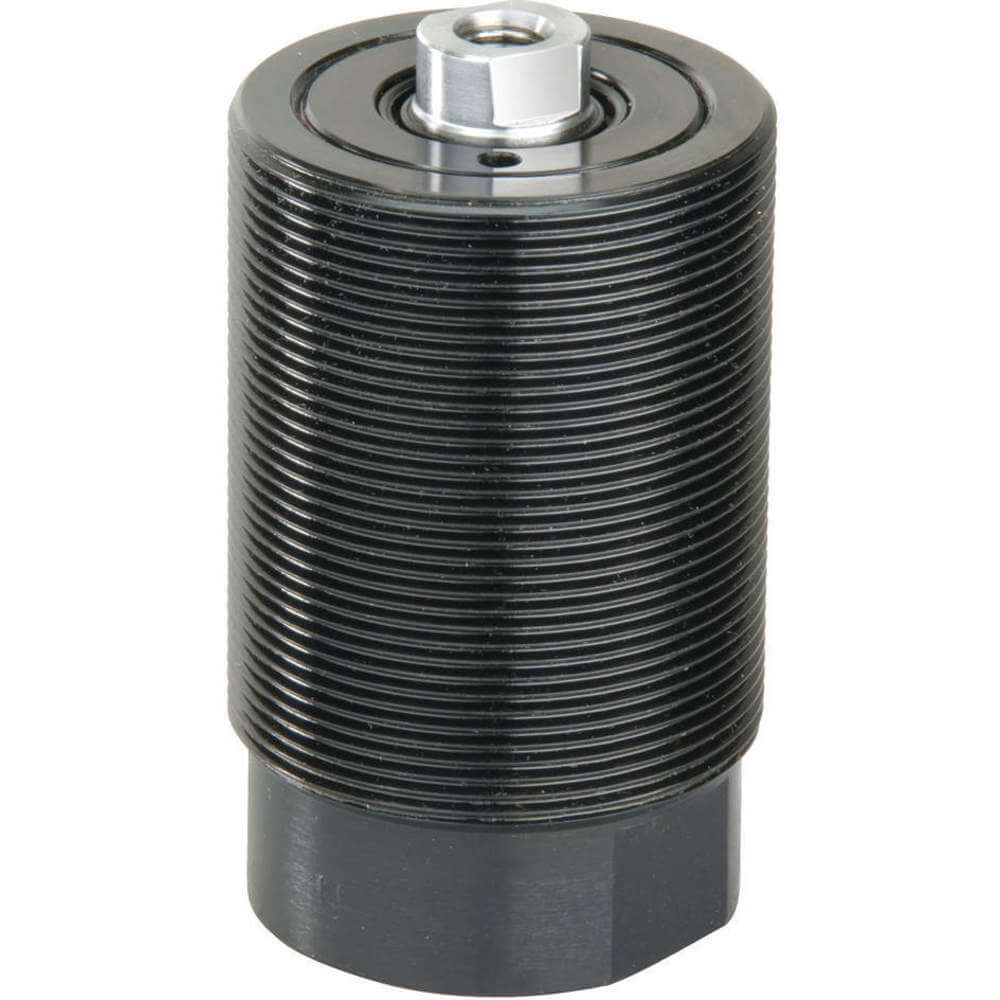

ENERPAC CDT18251 Cylinder Threaded 3900 Lbs .98 Inch Stroke

In Stock
Item: AE6TCN Model: CDT18251Cross Ref: 5UWT5
Check Availability
See variants (3)

Get it by Jun 7, Friday

Product available for flat shipping. Flat shipping price of €9,00 on transactions of value €99,00 or more and aggregate weight below 10 pounds.

Delivery Options:

Int. Economy (6-10 days)
  • Int. Express (5-7 days) ¥3,750
  • Ex-Works Pickup Free
  • Ex-works Pickup
€475.45 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemHydraulic Cylinder
Cylinder Effective Area Advance0.77 sq. in.
Cylinder Effective Area Retract0.46 sq. in.
Cylinder Return TypeDouble Acting, Hydraulic Return
Dimension A4.21"
Dimension B3.23"
Dimension C2.97"
Dimension C10.63"
Dimension D1 7/8"-16 UN
Dimension D11.73"
Dimension E0.63"
Dimension E10.59"
Dimension F1.61"
Dimension K1/3"-24 UNF
Dimension L Retract0.53"
Dimension M Extend0.39"
Dimension P0.26"
Dimension S0.5"
Dimension T0.47"
MaterialSteel
Max. Cylinder Capacity Advance3900 lbs.
Max. Cylinder Capacity Retract2330 lbs.
Max. Operating Pressure5000 psi
Oil Capacity Advance0.78 cu. in.
Oil Capacity Retract0.46 cu. in.
Plunger TypeSolid
Product Datasheetenerpac-cst4131.pdf
Stroke0.98"

Shipping Info:

Ship weight (kg) 1.03
Ship height (cm)9.4
Ship length (cm)11.43
Ship width (cm)11.43
HS code8412210030
Country of OriginUS

Product Details:

  • Capacity @ 5000 PSI (3900 lb.)
  • Effective Area Pull (0.46 sq. in.)
  • Effective Area Push (0.77 sq. in.)
  • Oil Capacity Pull (0.46 cu. in.)
  • Plunger Thread (5/16"-24 UN)

Documentation:

Datasheet

Product Variants

ProductModelDimension SDimension D1Cylinder Effective Area AdvanceDimension ADimension BDimension CDimension C1Dimension DPrice
ENERPAC CDT18131 Cylinder Threaded 3900 Lbs .51 Inch Stroke | AE6TCM 5UWT4 CDT181310.5"1.73"0.77 sq. in.3.19"2.68"2.42"0.63"1 7/8"-16 UN€428.68
ENERPAC CDT27151 Cylinder Threaded 6110 Lbs .59 Inch Stroke | AE6TCP 5UWT6 CDT271510.62"2.02"1.22 sq. in.3.37"2.8"2.54"0.67"2 1/4"-16 UN€622.81
ENERPAC CDT27251 Cylinder Threaded 6110 Lbs .98 Inch Stroke | AE6TCQ 5UWT7 CDT272510.62"2.02"1.22 sq. in.4.2"3.23"2.97"0.67"2 1/4"-16 UN€669.89
