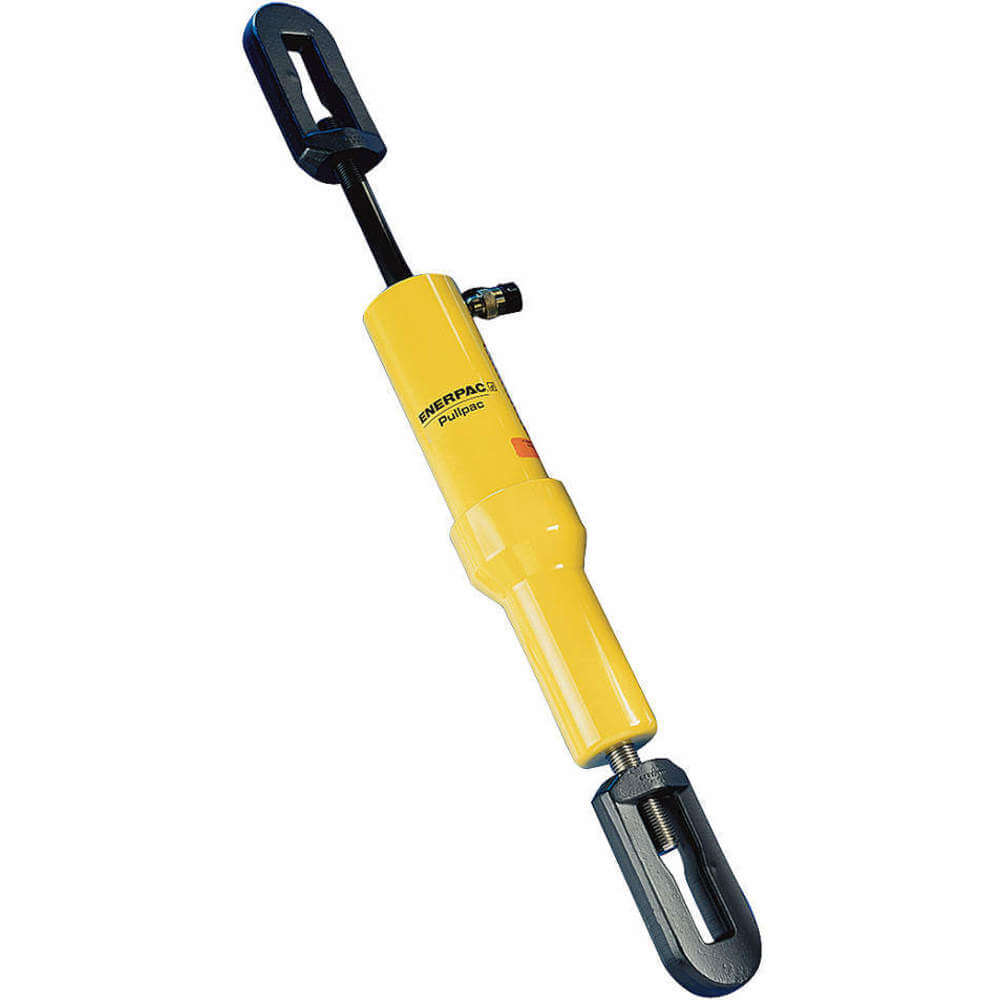

ENERPAC BRP306 Cylinder 30 Tons 6 Inch Stroke Length
Get it by Monday, Jun 16
€6,431.04 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Hydraulic Cylinder |
| Body Material | Steel |
| Center Hole Dia. | 3 1/2" |
| Collapsed Height | 43.71" |
| Cylinder Bore | 3 1/2" |
| Cylinder Type | Pull |
| Extended Height | 49.71" |
| Finish | Paint |
| Handle | No |
| Includes | Slotted Link |
| Link Width | 1.57" |
| Material | Steel |
| Max. Operating Pressure | 10000 psi |
| Mounting Hole Dia. | 6.1" |
| Nominal Stroke Length | 6" |
| Oil Capacity | 43.27 cu. in. |
| Outside Dia. | 5.39" |
| Plunger To Mounting Hole | 1.38" |
| Plunger Type | Solid |
| Promotion Restriction | Not Eligible For Promotion |
| Retracted Height | 43.71" |
| Saddle Diameter | 4.49" |
| Single Acting/double Acting | Single Acting |
| Slot To Link End | 2.17" |
| Stroke Length | 6.1" |
| Weighing Capacity | 30 ton. |
| Effective Pull Area | 7.19 sq. in. |
| Max. Pressure | 10000 psi |
| Max. Pull Capacity | 30 ton. |
| Nominal Capacity | 30 ton. |
| Oil Capacity Pull | 43.63 cu. in. |
| Series | BRP Series |
| Ship weight (kg) | 56.25 |
| Ship height (cm) | 60.96 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 10.16 |
| HS code | 8425420000 |
| Country of Origin | US |
| Model | Capacity | Cylinder Bore | Cylinder Effective Area Retract | Link Width | Max. Cylinder Capacity Retract | Mounting Hole Dia. | Oil Capacity Retract | Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| BRP106C | 10 ton. | 2.13" | 2.45 sq. in. | 1.38" | 11.6 short ton. | 3.43" | 14.58 cu. in. | 3.35" | €4,055.04 | |
| BRP106L | 10 ton. | 2.13" | 2.45 sq. in. | 1.19" | 11.6 short ton. | 4.69" | 14.58 cu. in. | 3.35" | €2,521.53 | |
| BRP606 | 60 ton. | 4.33" | 11.17 sq. in. | 1.89" | 55.8 short ton. | 5.93" | 67.02 cu. in. | 5.51" | €11,760.21 |
