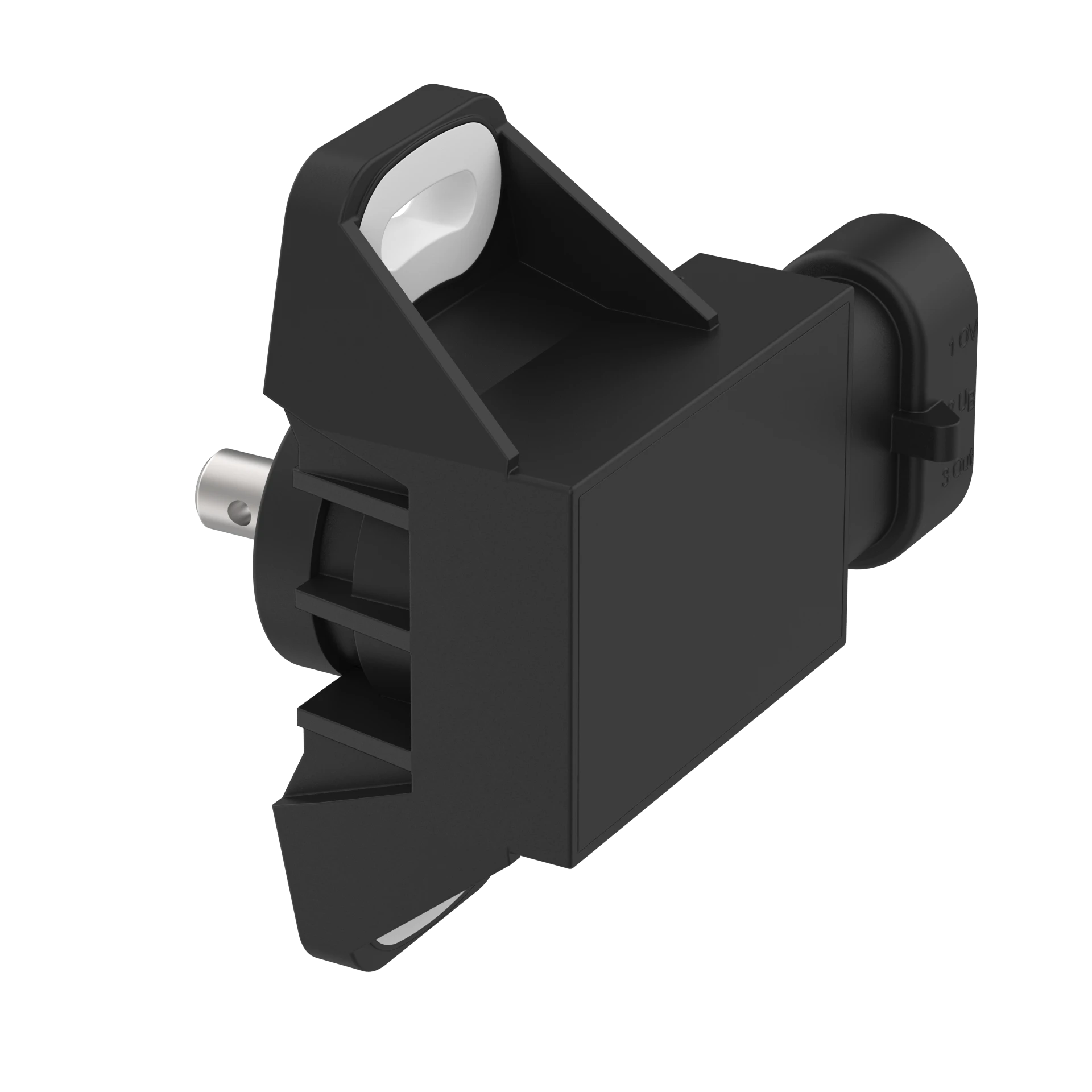

ELOBAU 424A11A070 Angle Sensor, 70 Degree Ccw, 4 To 20Ma
Get it by Monday, Jun 16
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Sensor |
| Actuating Lever | No |
| Angle Measuring Range | 70° |
| Bearings | Ball Bearing |
| Current Consumption | 18 mA |
| Housing Material | PBT |
| Ip Rating | IP67 |
| Max. Load Resistance | 250 ohms |
| Max. Operating Temp. | 85°C |
| Max. Operating Voltage | 30V DC |
| Max. Output Signal | 20 mA |
| Max. Radial | 100N |
| Max. Shaft Load, Axial | 50N |
| Max. Storage Temp. | 85°C |
| Mean Time To Failure | 101A |
| Min. Operating Temp. | -40°C |
| Min. Operating Voltage | 10V DC |
| Min. Output Signal | 4 mA |
| Min. Storage Temp. | -40°C |
| Mounting Type | Screwed |
| Operating Voltage | 10-30V DC |
| Output | 1 |
| Output Current | 4-20 mA |
| Output Signal Center Position/zero Position | 12 mA |
| Resolution | 0.1° |
| Sensing Technology | Hall |
| Signal Sequence | CCW |
| Signal Update Rate | 2000 Hz |
| Technology | Hall |
| Temperature Coefficient | Type - 250 ppm/K To Typ. +250 ppm/K |
| Torque For Fastening Screws | 2.5 N-m |
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 5.9 |
| Ship length (cm) | 6.3 |
| Ship width (cm) | 2.9 |
| Product | Model | Angle Measuring Range | Current Consumption | Max. Operating Voltage | Max. Output Signal | Mean Time To Failure | Min. Operating Voltage | Min. Output Signal | Output | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
424A10A070 | 70 Deg. | 18 mA | 30V DC | 5V DC | - | 10V DC | 1V DC | 1-5V | - | RFQ
|
|
424A16A070 | 60 Deg. | 8 mA | 5.5V DC | 4.5V DC | 225.7A | 4.5V DC | 0.5V DC | 1 | - | RFQ
|
