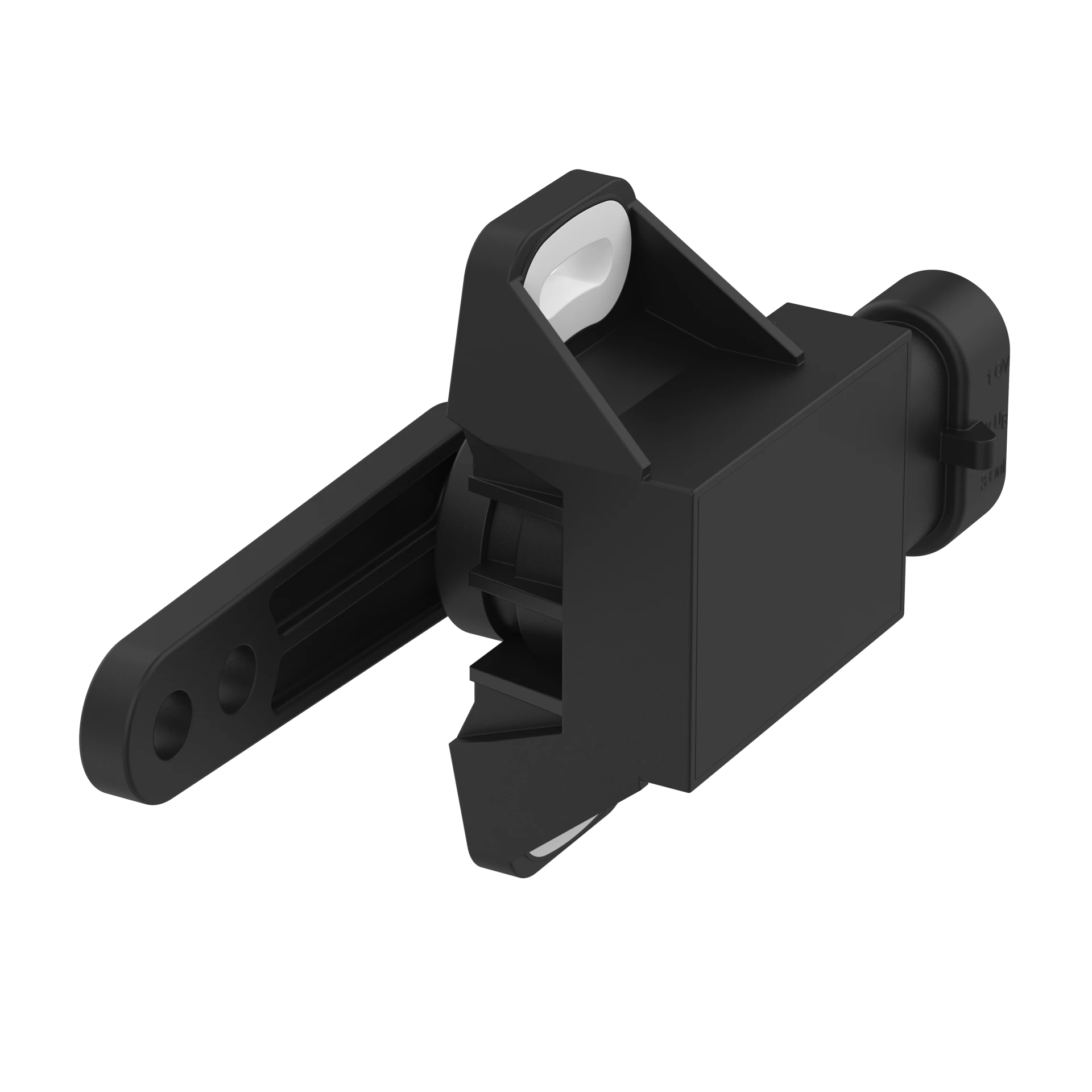

ELOBAU 424A11A030B Angle Sensor With Actuation Lever, 30 Degree CCW, 4 To 20mA
Get it by Wednesday, Jun 18
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Sensor |
| Angle Measuring Range | 30° |
| Bearings | Ball Bearing |
| Connector Type | AMP SUPERSEAL 1.5 |
| Housing Material | PBT |
| Ip Rating | IP67 |
| Max. Axial Shaft Load | 50N |
| Max. Load Resistance | 250 ohms |
| Max. Operating Temp. | 85°C |
| Max. Operating Voltage | 30V DC |
| Max. Output Signal | 20 mA |
| Max. Shaft Load | 100N |
| Max. Storage Temp. | 85°C |
| Mechanical Stop | No |
| Min. Operating Temp. | -40°C |
| Min. Operating Voltage | 10V DC |
| Min. Output Signal | 4 mA |
| Min. Storage Temp. | -40°C |
| Mounting Type | Screwed |
| No. Of Output | 1 |
| Operating Lever | Yes |
| Operating Voltage | 10-30V DC |
| Output | 4-20 mA |
| Output Signal Center Position/zero Position | 12 mA |
| Power Consumption | 18 mA |
| Resolution | 0.1° |
| Reverse Polarity Protection | Yes |
| Sensing Technology | Hall |
| Short-circuit Resistance To Gnd | Yes |
| Short-circuit Resistance To Supply | Yes |
| Signal Update Rate | 2000 Hz |
| Technology | Hello |
| Temperature Coefficient | Type - 250 ppm/K To Typ. +250 ppm/K |
| Torque For Fastening Screws | 2.5 N-m |
| Typical Linearity Error | -0.2° to +0.2° |
| Waveform | Counter Clockwise |
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 5.9 |
| Ship length (cm) | 6.3 |
| Ship width (cm) | 2.9 |
| Product | Model | Angle Measuring Range | Max. Output Signal | Mechanical Stop | Min. Output Signal | Output | Output Signal Center Position/zero Position | Signal Sequence | Technology | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
424A06A030B | 30 Deg. to +120 Deg. | 4.5V DC | Optional | 0.5V DC | 1 | 2.5V DC | Counter Clock Wise(Optional ClockWise) | Hall | - | RFQ
|
|
424A10A030B | 30 Deg. | 5V DC | - | 1V DC | 1 to 5V | 3V DC | Counter Clock Wise | Hall | - | RFQ
|
