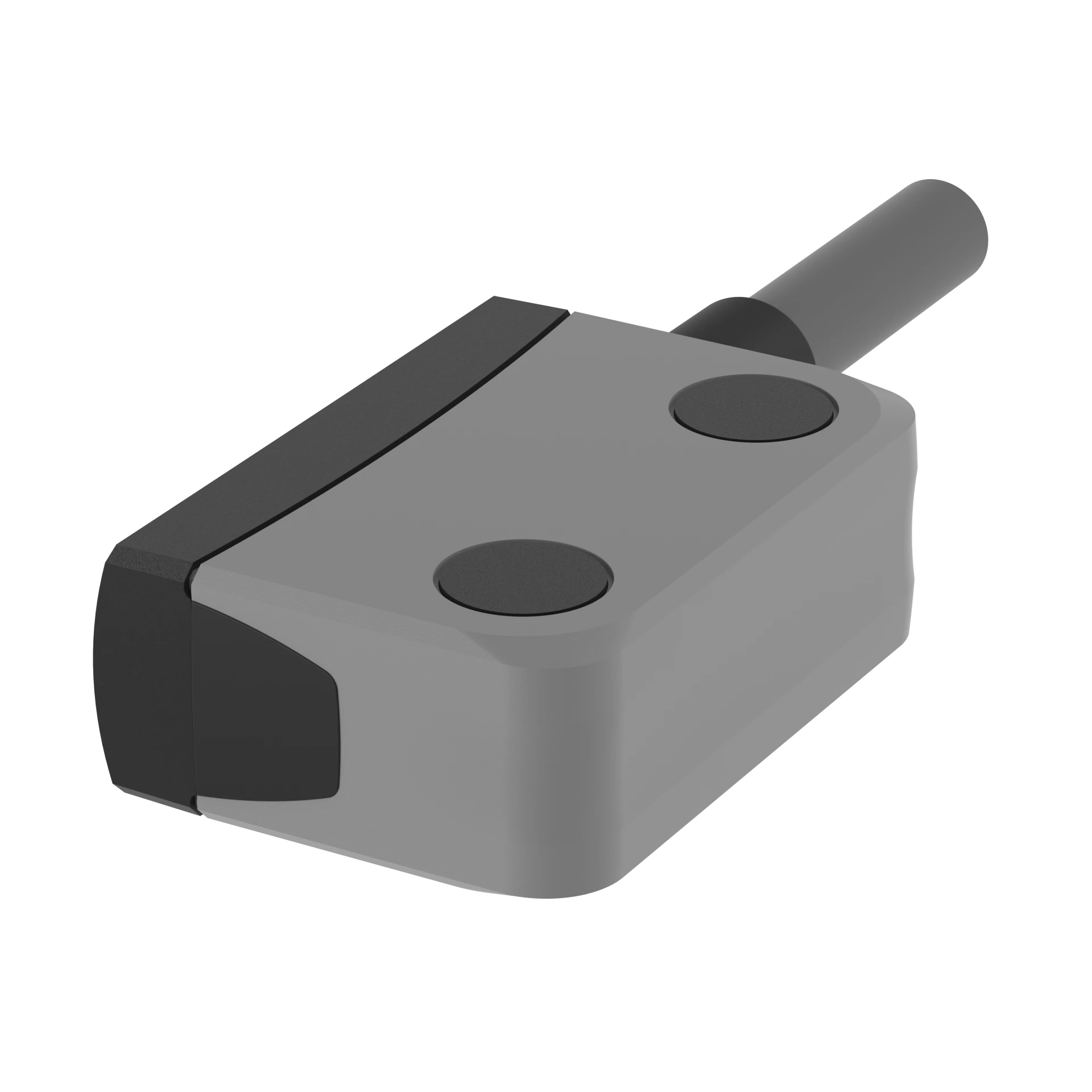

ELOBAU 153MSK00K1A-3 Safety Sensor, N.O./N.O., 3m Cable
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Sensor |
| Actuation Type | Front |
| Assured Switch Off Distance | 10 mm |
| Assured Switching Distance | 4 mm |
| Cable Length | 1m |
| Cable Material | PVC |
| Communication Method | Hard Wired |
| Degree Of Pollution | 3 |
| Housing Color | Black, Gray |
| Housing Design | Rectangular |
| Housing Material | PBT, PC |
| Ip Rating | IP67 |
| Led Display | No |
| Max. Operating Temp. | 80°C |
| Max. Switching Current | 0.2A |
| Max. Switching Power | 3 W |
| Max. Switching Voltage | 28.8V DC |
| Min. Cable Temp. Range, Moving | -5°C |
| Min. Cable Temperature Range, Fixed Installation | -30°C |
| Min. Operating Temp. | -25°C |
| Min. Switching Distance | 0.5 mm |
| Min. Switching Voltage | 19.2V DC |
| Mission Time In Years | 20 yrs. |
| Mounting Type | Screw |
| Number Of Strands | 4 |
| Operating Voltage | 19.2-28.8V DC |
| Sensing Technology | Reed |
| Series Resistor | 10 ohms |
| Shock Resistance | 30g, 11 ms |
| Size | 26 mm x 36 mm x 13 mm |
| Switching Frequency | 5 Hz |
| Switching Principle | Magnetic |
| Technology | Reed |
| Vibration Resistance | 10-55 Hz |
| Wire Cross Section | 0.25 sq. mm |
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 1.3 |
| Ship length (cm) | 2.59 |
| Ship width (cm) | 3.61 |
| Model | Assured Switch Off Distance | Assured Switching Distance | Cable Length | Connector Size | Contact Form | Housing Color | Housing Material | Ip Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 153MSK00B1A | 10 mm | 4 mm | 0.15 m | M8 x 1 | NO/ NO | Gray, Silver | PBT, PC | IP67/ IP6K9K | - | RFQ
|
| 153MSK00H1A | 10 mm | 4 mm | 0.15 m | M12 x 1 | NO/ NO | Grey, Black | PBT, PC | Ip67 | - | RFQ
|
| 153MSK00H1B | 10 mm | 4 mm | - | - | NO/ NO | Gray, Silver | PBT, PC | Ip67 | - | RFQ
|
| 153MSK00H1G | 10 mm | 4 mm | 0.15 m | M12 x 1 | NO/ NC | Grey, Black | PBT, PC | Ip67 | - | RFQ
|
| 153MSK00H1H | - | - | 0.15 m | - | - | Grey, Black | - | Ip67 | - | RFQ
|
| 153MSK00K1A | 10 mm | 4 mm | 1 m | - | NO/ NO | Gray, Silver | PBT, PC | Ip67 | - | RFQ
|
| 153MSK00K1A-10 | 10 mm | 4 mm | 1 m | - | NO/ NO | Grey, Black | PBT, PC | Ip67 | - | RFQ
|
