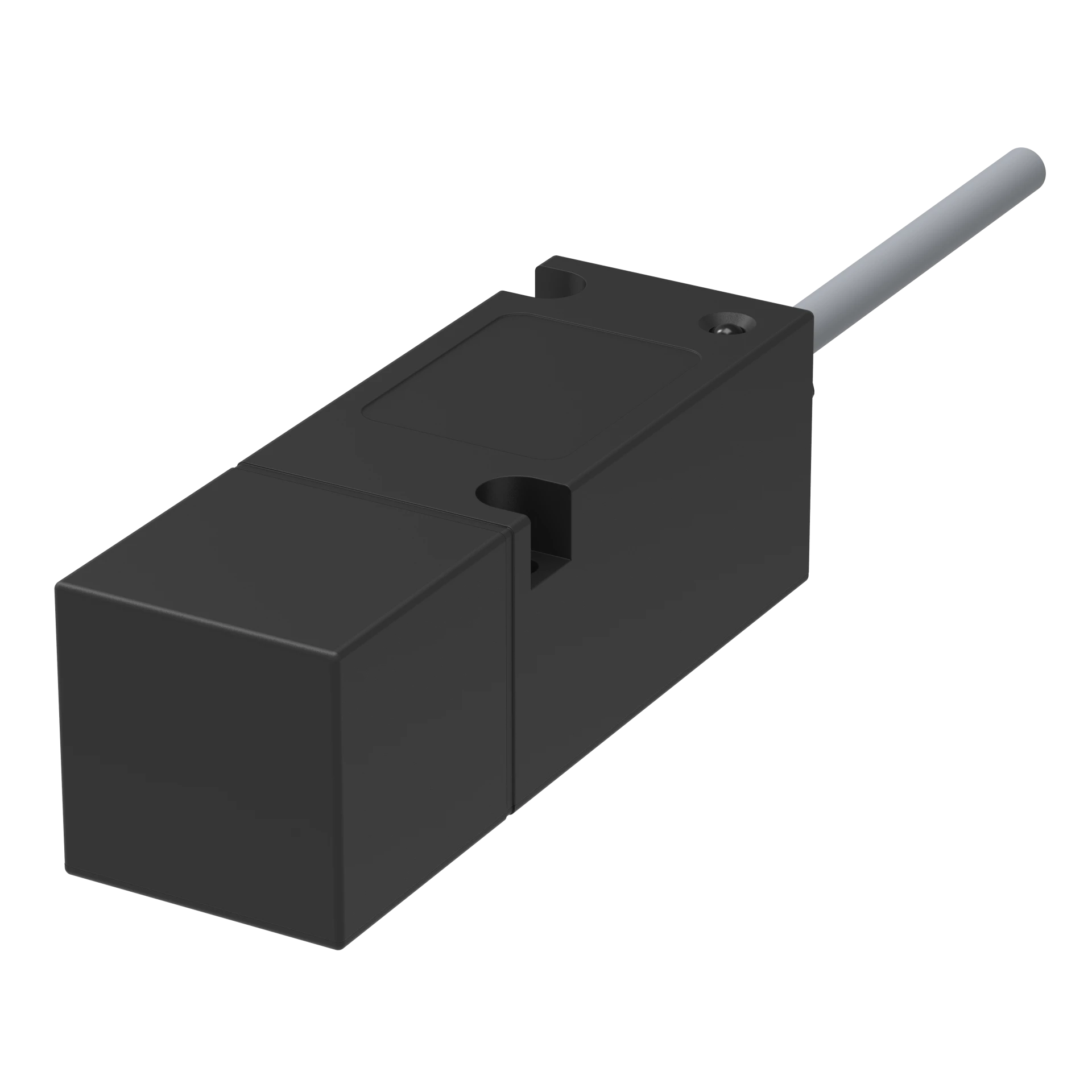

ELOBAU 117714E1 Safety Sensor, With Built In Relay
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Sensor |
| Actuation Frequency | 18000 1/h |
| Actuation Type | Top |
| Air Pressure | 860 hPa to 1060 hPa |
| Assured Switch Off Distance | 21 mm |
| Assured Switching Distance | 3 mm |
| Cable Color | Silver Gray |
| Cable Length | 1m |
| Cable Material | TPE |
| Cannot Be Mounted Flush | Yes |
| Continuous Shock Resistance | 10g, 16 ms |
| Current Consumption | 100 mA |
| Degree Of Pollution | 2 |
| Delta Tmax | 0.5 Deg. C/Min. |
| Edm/start Input | No |
| Free Zone | 25 mm |
| Fuse Control Output | 3A |
| Fuse Operating Current | 0.5A |
| Fuse Safety Output | 3A |
| Housing Color | Silver |
| Housing Design | Rectangular |
| Housing Material | PBT |
| Led Display | Single Coloured |
| Max. Cable Temp. Range, Fixed Installation | 55°C |
| Max. Cable Temp. Range, Moving | 55°C |
| Max. No. Operating Cycles At 0.5a Switching Current (ohmic Load) | 1000000 |
| Max. No. Operating Cycles At 2.5a Switching Current (ohmic Load) | 230000 |
| Max. Operating Speed | 0.1 mpm |
| Max. Operating Temp. | 55°C |
| Max. Operating Voltage | 253V AC |
| Max. Storage Temp. | 55°C |
| Max. Switching Current At Control Output | 3A |
| Max. Switching Power At Control Output | 90 W , 90 W/750 VA |
| Max. Switching Power At Safety Output | 750 VA, 90 W |
| Max. Switching Voltage At Control Output | 30V DC/250V AC |
| Max. Switching Voltage At Safety Output | 30V DC/250V AC |
| Min. Cable Temp. Range, Moving | -25° |
| Min. Cable Temperature Range, Fixed Installation | -25°C |
| Min. Installation Distance | 50 mm |
| Min. Operating Temp. | -25°C |
| Min. Operating Voltage | 207V AC |
| Min. Storage Temp. | -25°C |
| Min. Switching Current At Control Output | 0.01/3A |
| Min. Switching Current At Safety Output | 0.1A |
| Min. Switching Distance | 0.5 mm |
| Min. Switching Power At Control Output | 0.12 W |
| Min. Switching Power At Safety Output | 0.5 W |
| Min. Switching Voltage At Control Output | 12V DC |
| Min. Switching Voltage At Safety Output | 5V DC |
| Mounting Type | Screw |
| Number Of Relay Control Output | 1 |
| Number Of Relay Safety Output | 1 |
| Number Of Strands | 5 |
| Overvoltage | Category III |
| Power Consumption | 23 VA |
| Protection Class | Class III |
| Readiness Delay | 350 ms |
| Relative Humidity | 5% to 85% |
| Shock Resistance | 30g, 11 ms |
| Size | 120 mm x 40 mm x 40 mm |
| Switching Principle | Magnetic |
| Technology | Reed |
| Utilization Category | 15-AC/-13-DC |
| Vibration Resistance | 10-55 Hz |
| Wire Cross Section | 0.75 sq. mm |
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 3.99 |
| Ship length (cm) | 11.99 |
| Ship width (cm) | 3.99 |
| Model | Actuation Frequency | Actuation Type | Assured Switch Off Distance | Assured Switching Distance | Cable Length | Cable Material | Cable Size | Cannot Be Mounted Flush | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 114270 | - | Front | 19 mm | 7 mm | - | - | - | - | - | RFQ
|
| 114270-10 | - | Front | 19 mm | 7 mm | 1 m | PVC | - | - | - | RFQ
|
| 114270-5 | - | Front | 19 mm | 7 mm | 1 m | PVC | - | - | - | RFQ
|
| 114270A0D | - | Front | 19 mm | 7 mm | - | - | - | - | - | RFQ
|
| 114570 | - | - | - | - | - | - | - | - | - | RFQ
|
| 114570-10 | - | - | - | - | - | - | - | - | - | RFQ
|
| 114V6203-2 | - | - | - | - | - | - | - | - | - | RFQ
|
